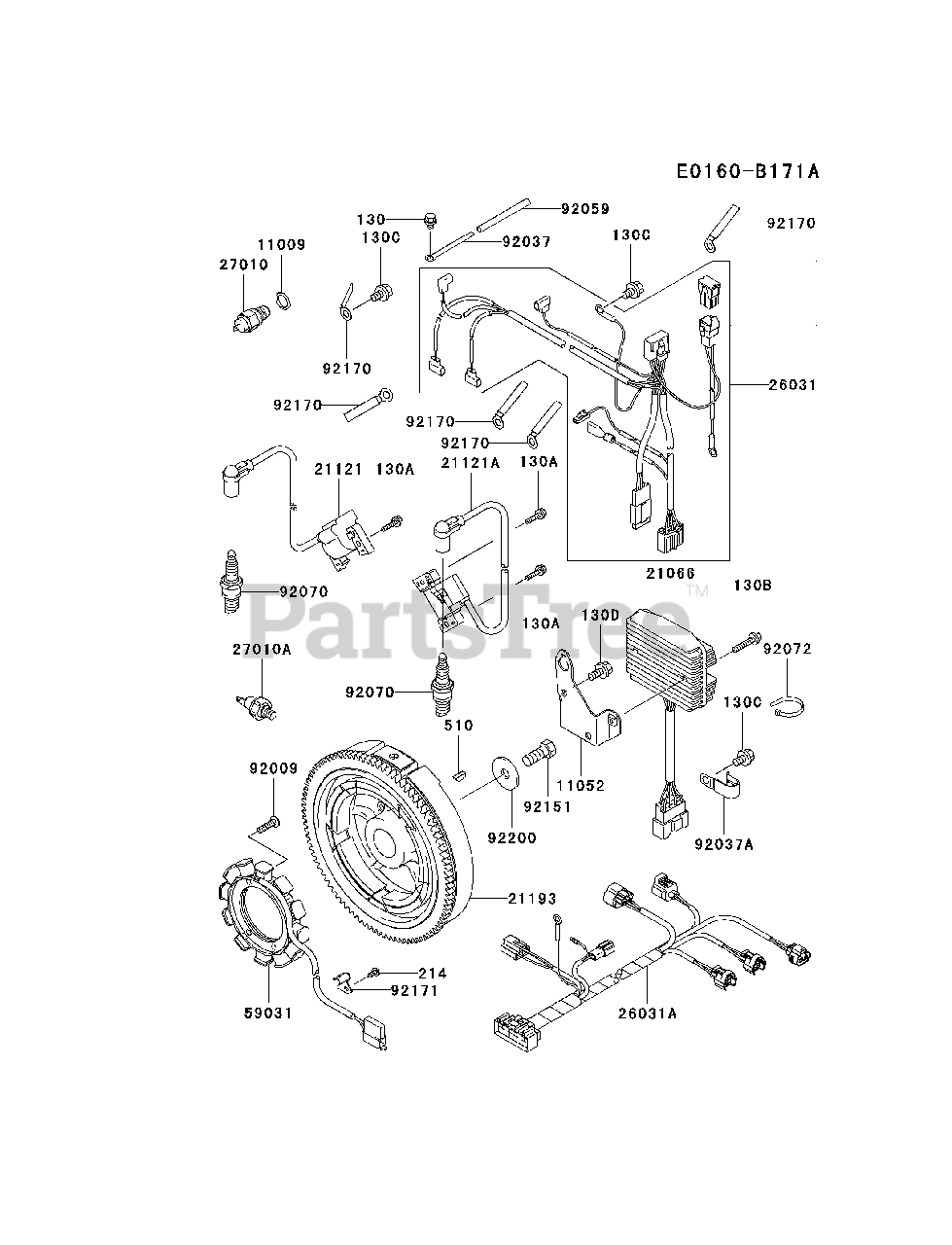

FD791D-AS07 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET,16X24X1
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

11052

$36.99

$

In Stock, only 1 left!

0

21066

Kawasaki 21066-2079

REGULATOR-VOLTAGE

$280.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 21121-2090

COIL-IGNITION,NO1

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

COIL-IGNITION,NO2

$66.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2187

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$526.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-2070

HARNESS,C-UNIT

$70.99

$

Usually ships in 2-5 days

0

26031A

$112.99

$

In Stock, only 1 left!

0

27010

$38.99

$

In Stock, Qty 5

0

27010A

Kawasaki 27010-7001

SWITCH
(Superseded to 27010-0817)

$23.99

$

In Stock, Qty 9

0

59031

Kawasaki 59031-2127

COIL-CHARGING

$207.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92037

$1.49

$

Usually ships in 2-5 days

0

92037A

$

$

Not available

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

$1.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 19

0

92170

$3.99

$

Usually ships in 2-5 days

0

92171

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130C0608

BOLT-FLANGED,6X8
(Superseded to 130AB0608)

$3.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0520

BOLT-FLANGED,5X20
(Superseded to 130BA0520)

$0.99

$

In Stock, only 2 left!

0

130B

Kawasaki 130G0630

BOLT-FLANGED,6X30
(Superseded to 130BA0630)

$1.99

$

In Stock, Qty 15

0

130C

Kawasaki 130G0812

BOLT-FLANGED,8X12
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0

130D

Kawasaki 130G0816

BOLT-FLANGED,8X16
(Superseded to 130BA0816)

$1.99

$

In Stock, only 4 left!

0

214

Kawasaki 214B0510

SCREW-PAN+-,5X10
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
