FD791D-AS07 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

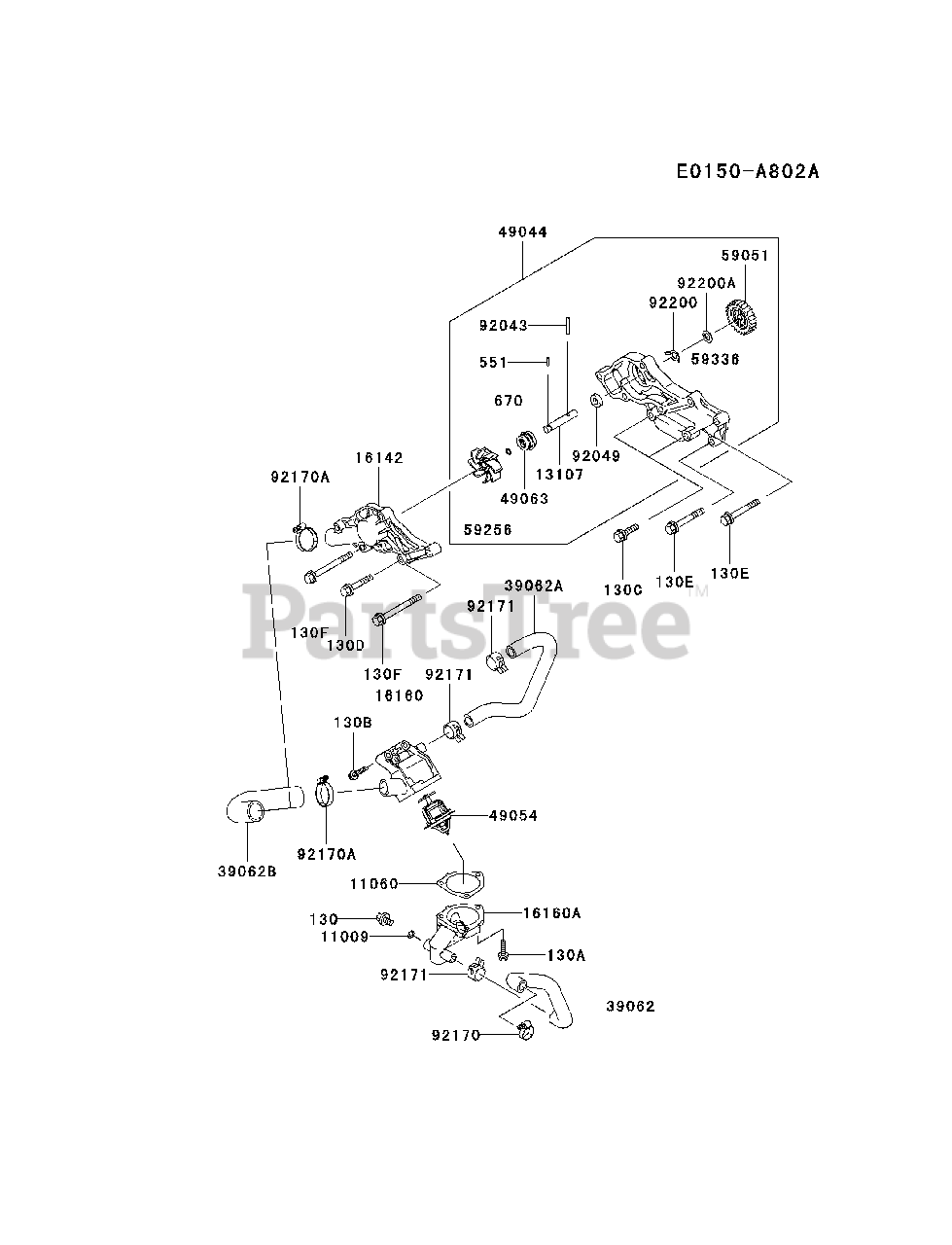

COOLING-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-3028

GASKET,8.2X12X1

$0.99

$

In Stock, Qty 10

0

11060

Kawasaki 11060-2475

GASKET,THERMOSTAT

$4.49

$

In Stock, Qty 13

0

13107

Kawasaki 13107-2097

SHAFT,IMPELLER

$9.49

$

In Stock, only 3 left!

0

16142

Kawasaki 16142-2077

COVER-PUMP

$49.99

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-2139

BODY,UPP
(Superseded to 16160-0795)

$38.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-6002

BODY,VALVE

$71.99

$

Usually ships in 2-5 days

0

39062

Kawasaki 39062-2083

HOSE-COOLING

$17.99

$

Usually ships in 2-5 days

0

39062A

Kawasaki 39062-2098

HOSE-COOLING
(Superseded to 39062-2084)

$25.99

$

Usually ships in 2-5 days

0

39062B

Kawasaki 39062-2101

HOSE-COOLING
(Superseded to 39062-2089)

$18.99

$

Usually ships in 2-5 days

0

49044

Kawasaki 49044-2067

PUMP-WATER
(Superseded to 49044-2063)

$261.99

$

In Stock, Qty 8

0

49054

Kawasaki 49054-2058

THERMOSTAT

$58.99

$

In Stock, Qty 6

0

49063

Kawasaki 49063-1056

SEAL-MECHANICAL
(Superseded to 49063-1054)

$

$

Not available

59051

Kawasaki 59051-2355

GEAR-SPUR,25T

$9.49

$

In Stock, only 2 left!

0

59256

$21.99

$

In Stock, only 1 left!

0

59336

$126.99

$

Usually ships in 2-5 days

0

$0.99

$

In Stock, Qty 6

0

92049

$4.49

$

In Stock, Qty 12

0

92170

Kawasaki 92170-1283

CLAMP
(Superseded to 92173-1401)

$14.99

$

Usually ships in 2-5 days

0

92170A

Kawasaki 92170-1284

CLAMP
(Superseded to 92171-0179)

$8.99

$

Usually ships in 2-5 days

0

92171

$1.99

$

In Stock, only 1 left!

0

92200

$1.49

$

In Stock, only 3 left!

0

92200A

Kawasaki 92200-2135

WASHER,10.2X19X0.8

$1.49

$

In Stock, only 2 left!

0

130

Kawasaki 130C0812

BOLT-FLANGED,8X12
(Superseded to 130AB0812)

$0.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0625

BOLT-FLANGED,6X25
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0635

BOLT-FLANGED,6X35
(Superseded to 130BA0635)

$1.49

$

In Stock, Qty 6

0

130C

Kawasaki 130G0830

BOLT-FLANGED,8X30
(Superseded to 130BA0830)

$3.99

$

In Stock, Qty 5

0

130D

Kawasaki 130G0845

BOLT-FLANGED,8X45
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

130E

Kawasaki 130G0860

BOLT-FLANGED,8X60
(Superseded to 130BA0860)

$1.99

$

In Stock, Qty 9

0

130F

Kawasaki 130G0880

BOLT-FLANGED,8X80

$2.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0314

PIN-DOWEL,3X14

$0.99

$

In Stock, Qty 9

0

670

Kawasaki 670B1507

O RING,7MM
(Superseded to 92055-1072)

$1.49

$

In Stock, Qty 15

0
