FD791D-AS03 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

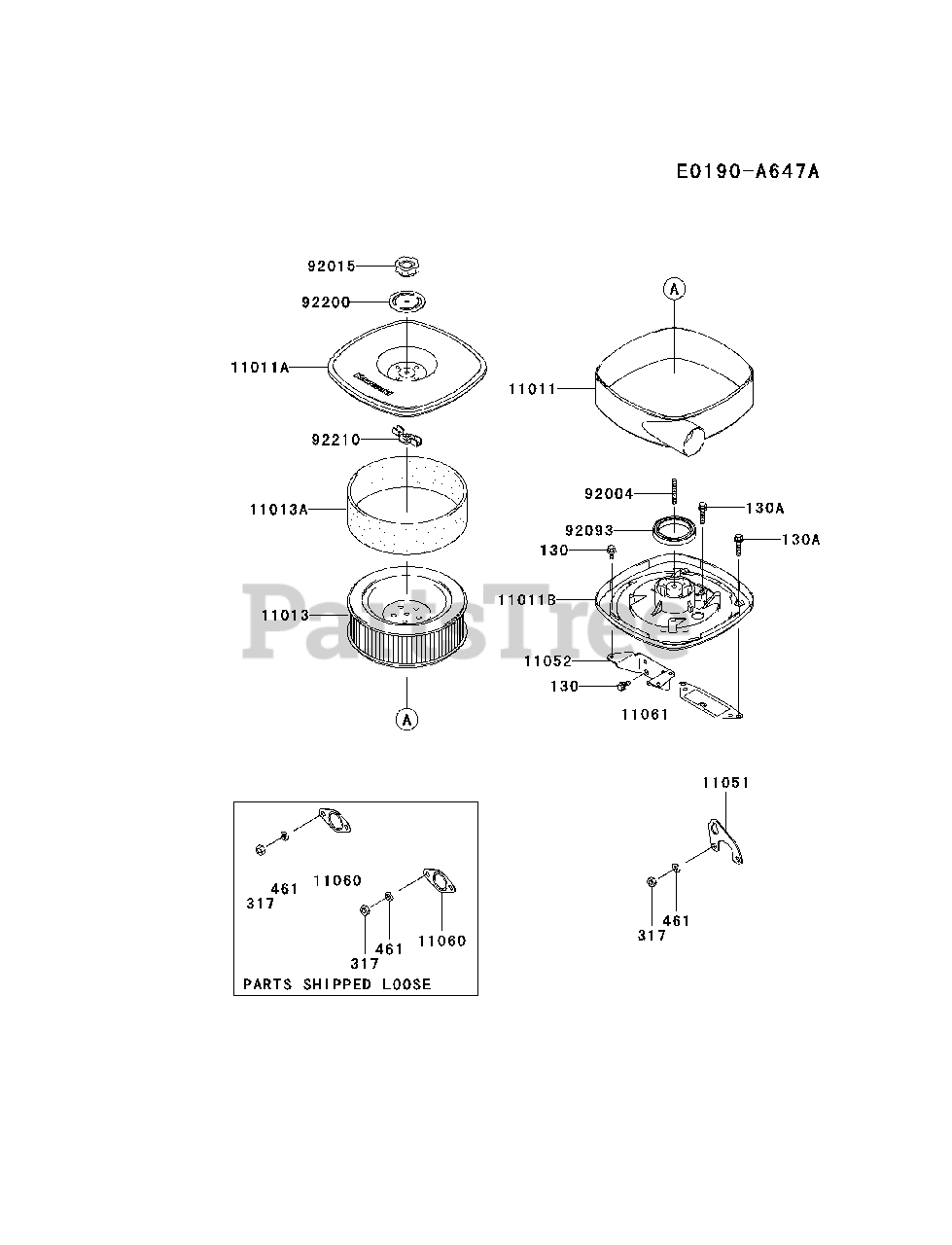

AIR-FILTER/MUFFLER Parts Diagram

  • Title

92004

Kawasaki 92004-2152

STUD,6X30

$3.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-2138

NUT

$

$

Not available

92093

Kawasaki 92093-2123

SEAL

$10.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2136

WASHER

$

$

Not available

11011

Kawasaki 11011-2314

CASE-AIR FILTER,BODY

$38.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2315

CASE-AIR FILTER,UPPER
(Superseded to 11011-2356)

$40.99

$

In Stock, only 1 left!

0

11011B

Kawasaki 11011-2334

CASE-AIR FILTER

$64.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2195

ELEMENT-AIR FILTER
(Superseded to 11013-2213)

$65.99

$

In Stock, only 1 left!

0

11013A

Kawasaki 11013-2199

ELEMENT-AIR FILTER
(Superseded to 11013-2194)

$

$

Not available

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11052

Kawasaki 11052-2062

BRACKET

$15.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 10

0

92210

Kawasaki 92210-2079

NUT

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0614

BOLT-FLANGED
(Superseded to 130BA0614)

$3.99

$

In Stock, Qty 6

0

130A

Kawasaki 130G0630

BOLT-FLANGED
(Superseded to 130BA0630)

$1.99

$

In Stock, Qty 15

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
