FD791D-AS01 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

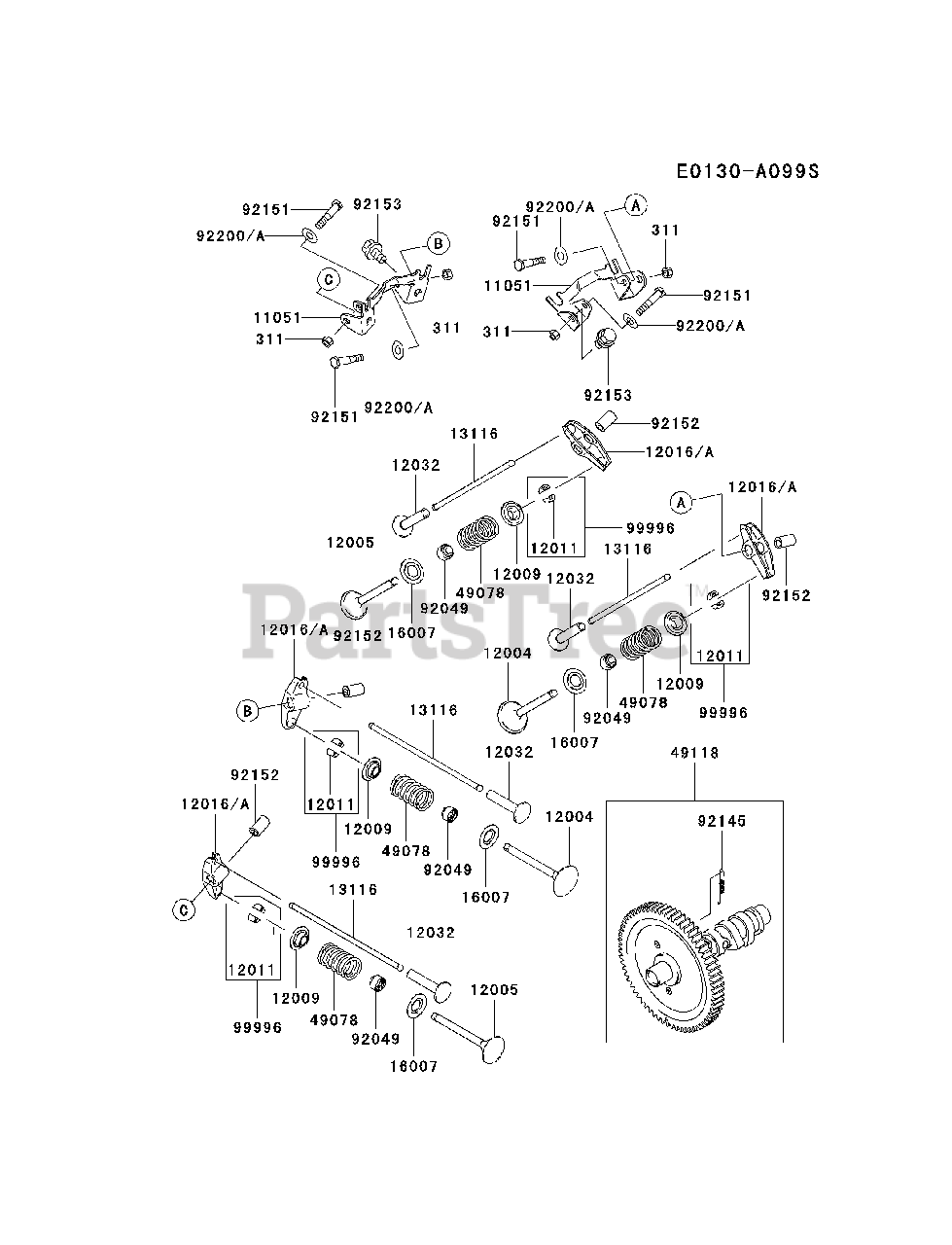

VALVE/CAMSHAFT Parts Diagram

  • Title

92200A

Kawasaki 92200-2151

WASHER,8.1X18X0.5

$1.49

$

In Stock, Qty 20+

0

99996

Kawasaki 99996-2077

KIT,COLLET

$1.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

11051

Kawasaki 11051-2092

BRACKET

$9.49

$

Usually ships in 2-5 days

0

12004

Kawasaki 12004-2113

VALVE-INTAKE

$31.99

$

In Stock, Qty 5

0

12005

Kawasaki 12005-2100

VALVE-EXHAUST

$41.99

$

In Stock, Qty 5

0

12009

Kawasaki 12009-2060

RETAINER-VALVE SPRING

$5.99

$

In Stock, Qty 6

0

12011

Kawasaki 12011-2052

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2065

ARM-ROCKER
(Superseded to 12016-2066)

$13.99

$

In Stock, Qty 20+

0

12016A

Kawasaki 12016-2066

ARM-ROCKER
(Superseded to 120160040)

$13.99

$

In Stock, Qty 20+

0

12032

Kawasaki 12032-2060

TAPPET

$17.99

$

In Stock, only 2 left!

0

13116

Kawasaki 13116-2074

ROD-PUSH

$13.99

$

Usually ships in 2-5 days

0

16007

Kawasaki 16007-2052

SEAT-SPRING

$1.49

$

In Stock, only 3 left!

0

49078

Kawasaki 49078-2060

SPRING-ENGINE VALVE

$4.99

$

In Stock, Qty 7

0

49118

Kawasaki 49118-2138

CAMSHAFT-COMP

$218.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2100

SEAL-OIL,VSB 7X12X5.5X9.7

$5.49

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-2085

SPRING

$2.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2165

BOLT,M6

$3.99

$

In Stock, only 1 left!

0

92152

Kawasaki 92152-2077

COLLAR

$2.49

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-2062

BOLT,8X14

$1.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2128

WASHER,8.1X18X0.5
(Superseded to 92200-2151)

$1.49

$

In Stock, Qty 20+

0
