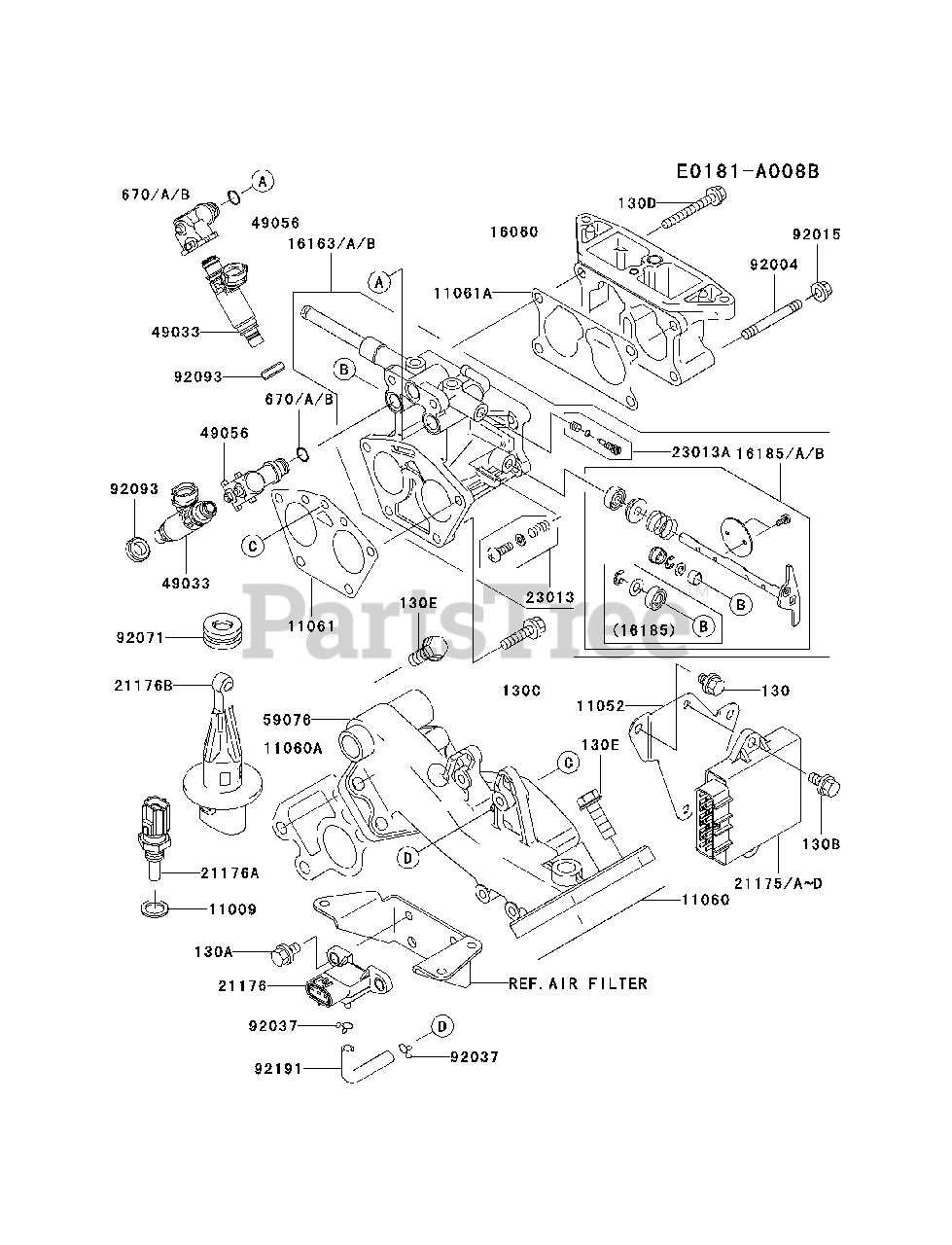

FD791D-AS00 - Kawasaki Engine THROTTLE-EQUIPMENT Parts Diagram

Engine

THROTTLE-EQUIPMENT Parts Diagram

  • Title

21175

Kawasaki 21175-2056

CONTROL UNIT-ELECTRONIC
(Superseded to 21175-2057)

$740.99

$

Usually ships in 2-5 days

0

21175A

Kawasaki 21175-2057

CONTROL UNIT-ELECTRONIC
(Superseded to 21175-2058)

$740.99

$

Usually ships in 2-5 days

0

21175B

Kawasaki 21175-2058

CONTROL UNIT-ELECTRONIC
(Superseded to 21175-2059)

$740.99

$

Usually ships in 2-5 days

0

21175D

Kawasaki 21175-2059

CONTROL UNIT-ELECTRONIC
(Superseded to 21175-2061)

$740.99

$

Usually ships in 2-5 days

0

21176

Kawasaki 21176-1095

SENSOR

$157.99

$

Usually ships in 2-5 days

0

21176A

Kawasaki 21176-2097

SENSOR

$37.99

$

Usually ships in 2-5 days

0

21176B

Kawasaki 21176-2106

SENSOR
(Superseded to 21176-2096)

$27.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2065

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2066

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 11009-1376

GASKET,12.5X18X1.5
(Superseded to 11060-2179)

$1.99

$

Usually ships in 2-5 days

0

11052

Kawasaki 11052-2063-9H

BRACKET

$

$

Not available

11060

Kawasaki 11060-2468

GASKET,INTAKE MANIFOLD

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

GASKET,INTAKE MANIFOLD

$5.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2058

GASKET,THROTTLE

$5.49

$

In Stock, Qty 6

0

11061A

Kawasaki 11061-2075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.49

$

In Stock, Qty 20+

0

16060

Kawasaki 16060-2194

PIPE-INTAKE

$43.99

$

Usually ships in 2-5 days

0

16163

Kawasaki 16163-2062

THROTTLE-ASSY
(Superseded to 16163-2065)

$311.99

$

Usually ships in 2-5 days

0

16163B

Kawasaki 16163-2065

THROTTLE-ASSY
(Superseded to 16163-2067)

$311.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2043

VALVE-ASSY-THROTTLE

$53.99

$

Usually ships in 2-5 days

0

16185B

Kawasaki 16185-2046

VALVE-ASSY-THROTTLE

$58.99

$

Usually ships in 2-5 days

0

49033

Kawasaki 49033-2059

NOZZLE-INJECTION

$229.99

$

Usually ships in 2-5 days

0

49056

Kawasaki 49056-2060

PIPE-INJECTION
(Superseded to 49056-2062)

$28.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2080

MANIFOLD-INTAKE

$229.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 92004-2133

STUD,6X100

$3.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-2163

CLAMP

$2.49

$

In Stock, only 2 left!

0

92071

Kawasaki 92071-2140

GROMMET

$3.49

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-2119

SEAL

$

$

Not available

92191

Kawasaki 92191-2133

TUBE,4X7X65

$

$

Not available

130

Kawasaki 130C0608

BOLT-FLANGED
(Superseded to 130AB0608)

$3.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0610

BOLT-FLANGED
(Superseded to 130BA0610)

$1.49

$

In Stock, only 4 left!

0

130B

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

130D

Kawasaki 130G0645

BOLT-FLANGED
(Superseded to 130BA0645)

$1.49

$

In Stock, Qty 8

0

130E

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

670

Kawasaki 670B1508

O RING,8MM

$1.49

$

Usually ships in 2-5 days

0

670B

Kawasaki 670E1508

O RING,8MM

$1.99

$

In Stock, only 2 left!

0
