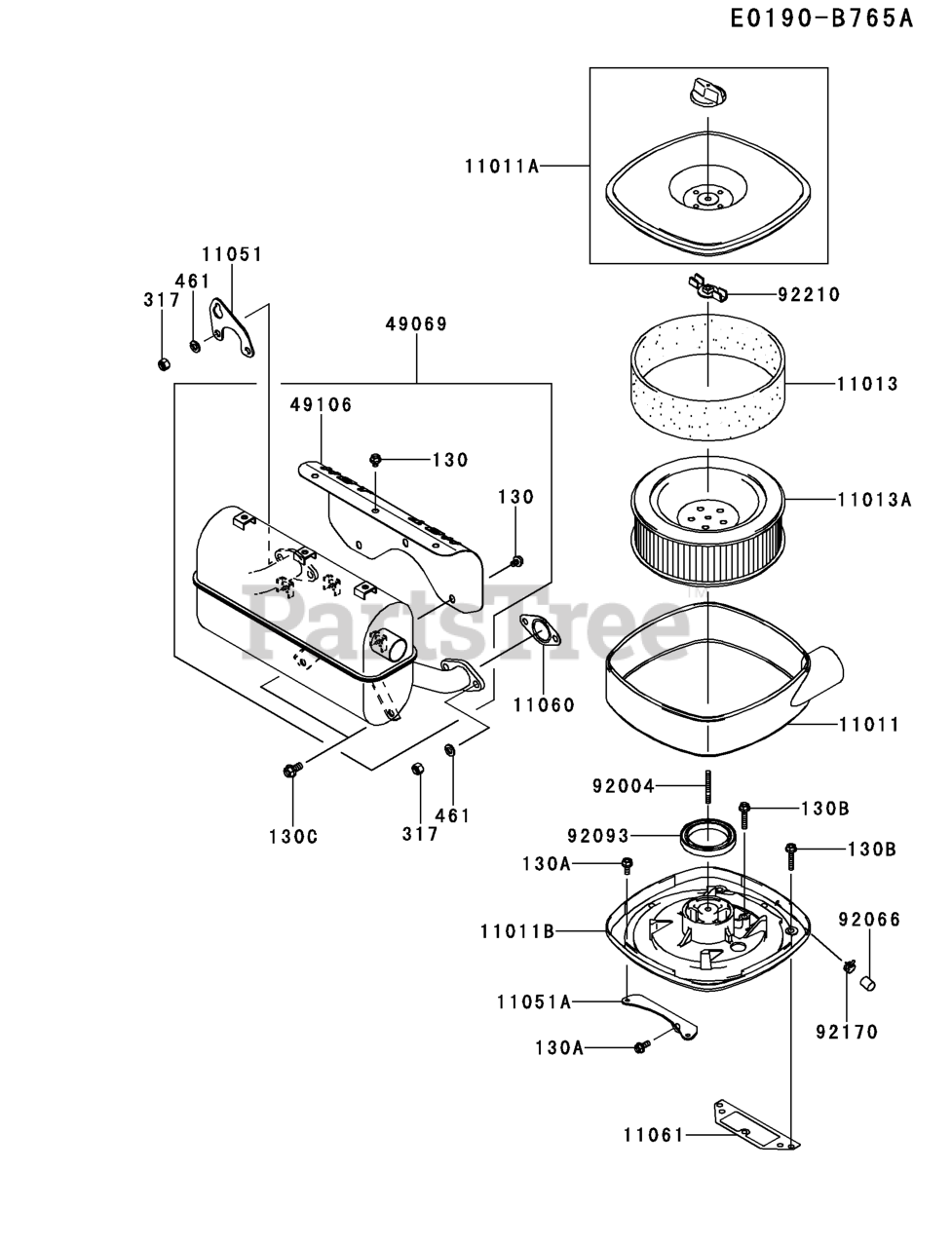

FD750D-PS00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2314

CASE-AIR FILTER,BODY

$38.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2358

CASE-AIR FILTER,UPPER
(Superseded to 11011-2356)

$40.99

$

In Stock, only 1 left!

0

11011B

Kawasaki 11011-2391

CASE-AIR FILTER

$90.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-0798

ELEMENT-AIR FILTER

$10.99

$

In Stock, only 3 left!

0

11013A

Kawasaki 11013-2213

ELEMENT-AIR FILTER
(Superseded to 11013-2186)

$65.99

$

In Stock, only 1 left!

0

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-2089

BRACKET,AIR FILTER

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 10

0

49069

Kawasaki 49069-2356-9Y

MUFFLER-ASSY
(Superseded to 49069-2347-9Y)

$428.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2644-9Y

COVER-MUFFLER

$

$

Not available

92004

Kawasaki 92004-2152

STUD,6X30

$3.99

$

In Stock, only 1 left!

0

92066

Kawasaki 92066-2096

PLUG

$1.99

$

In Stock, only 2 left!

0

92093

Kawasaki 92093-2123

SEAL

$10.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2043

CLAMP

$1.49

$

In Stock, Qty 19

0

92210

Kawasaki 92210-2079

NUT,M6

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0608

BOLT-FLANGED,6X8
(Superseded to 92153-1005)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0614

BOLT-FLANGED,6X14
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 6

0

130B

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130C

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
