FD750D-MS08 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

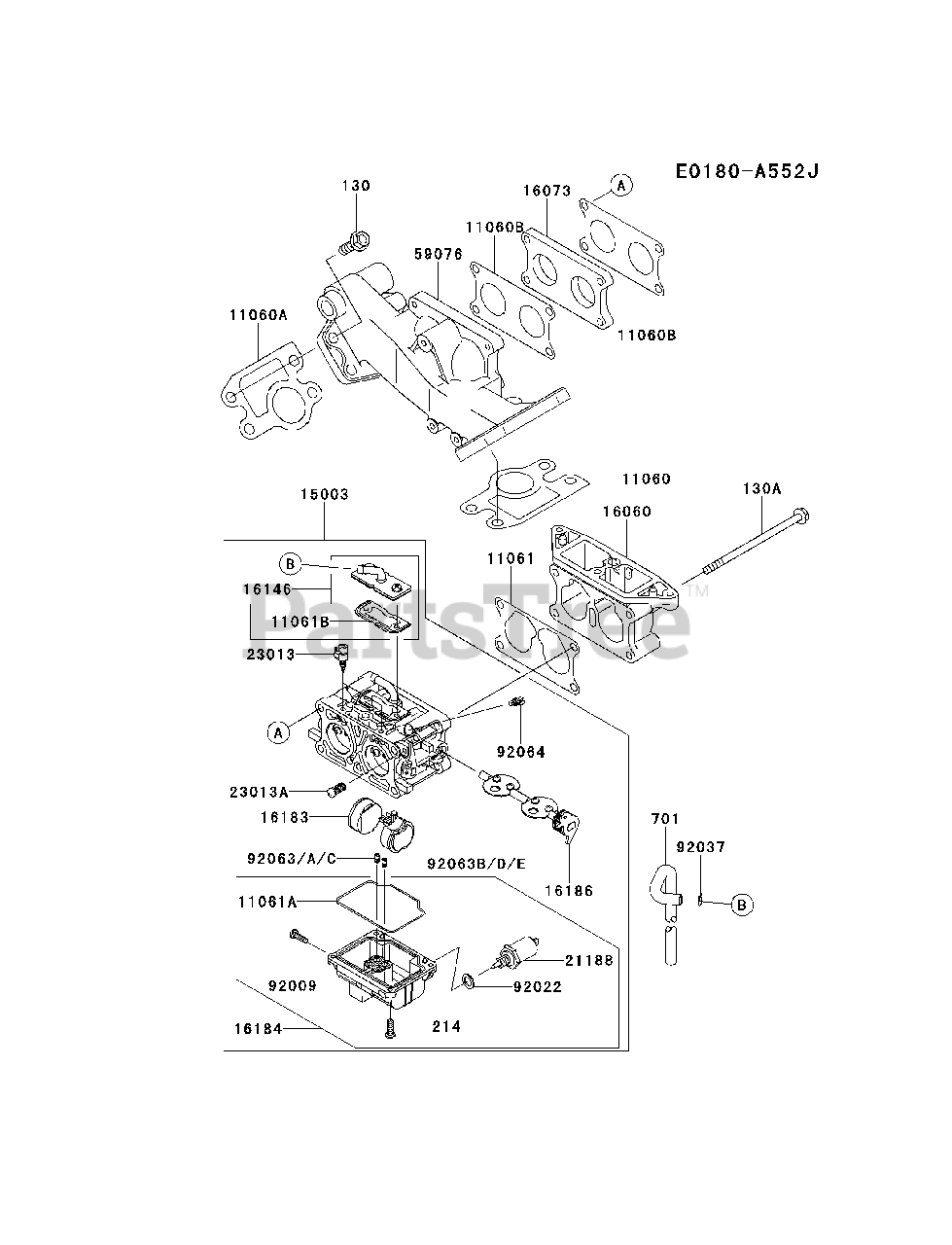

CARBURETOR Parts Diagram

  • Title
11060

Kawasaki 11060-2468

GASKET,INTAKE MANIFOLD

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

GASKET,INTAKE MANIFOLD

$5.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2471

GASKET,INTAKE PIPE

$5.49

$

In Stock, Qty 16

0

11061

Kawasaki 11061-2075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-2090

GASKET,CHAMBER

$11.99

$

In Stock, only 4 left!

0

11061B

Kawasaki 11061-2091

GASKET,COVER

$8.99

$

In Stock, Qty 6

0

15003

Kawasaki 15003-2976

CARBURETOR-ASSY
(Superseded to 15004-1045)

$464.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-2194

PIPE-INTAKE

$43.99

$

Usually ships in 2-5 days

0

16073

$14.99

$

In Stock, only 4 left!

0

16146

Kawasaki 16146-2227

COVER-ASSY

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2006

FLOAT-ASSY

$50.99

$

In Stock, only 4 left!

0

16184

Kawasaki 16184-2007

CHAMBER-ASSY-FLOAT
(Superseded to 16184-2004)

$205.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2036

VALVE-ASSY-CHOKE

$50.99

$

Usually ships in 2-5 days

0

21188

$183.99

$

In Stock, only 1 left!

0

23013

Kawasaki 23013-2063

SCREW-ASSY

$

$

Not available

23013A

Kawasaki 23013-2064

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2065

MANIFOLD-INTAKE

$188.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92022

$1.99

$

In Stock, Qty 13

0

92037

$2.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2347

JET-MAIN,#97.5

$10.99

$

In Stock, only 1 left!

0

92063A

Kawasaki 92063-2399

JET-MAIN,#95,3280FT

$12.99

$

In Stock, only 1 left!

0

92063B

Kawasaki 92063-2400

JET-MAIN,#96.3

$14.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-2402

JET-MAIN,#92.5,6560FT

$12.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-2407

JET-MAIN,#91.3,6560FT

$10.99

$

Usually ships in 2-5 days

0

92063E

Kawasaki 92063-2412

JET-MAIN,#93.8,3280FT

$12.99

$

In Stock, only 2 left!

0

92064

Kawasaki 92064-2126

JET-PILOT,#47.5

$12.99

$

In Stock, only 1 left!

0

130

Kawasaki 130BA0825

BOLT-FLANGED,8X25
(Superseded to 130D0825)

$1.49

$

In Stock, Qty 6

0

130A

Kawasaki 130CA06110

BOLT-FLANGED,6X110
(Superseded to 130T06110)

$2.49

$

In Stock, Qty 8

0

214

Kawasaki 214AA0414

SCREW-PAN+-,4X14
(Superseded to 211B0414A)

$0.99

$

In Stock, only 2 left!

0

701

$5.49

$

In Stock, Qty 11

0
