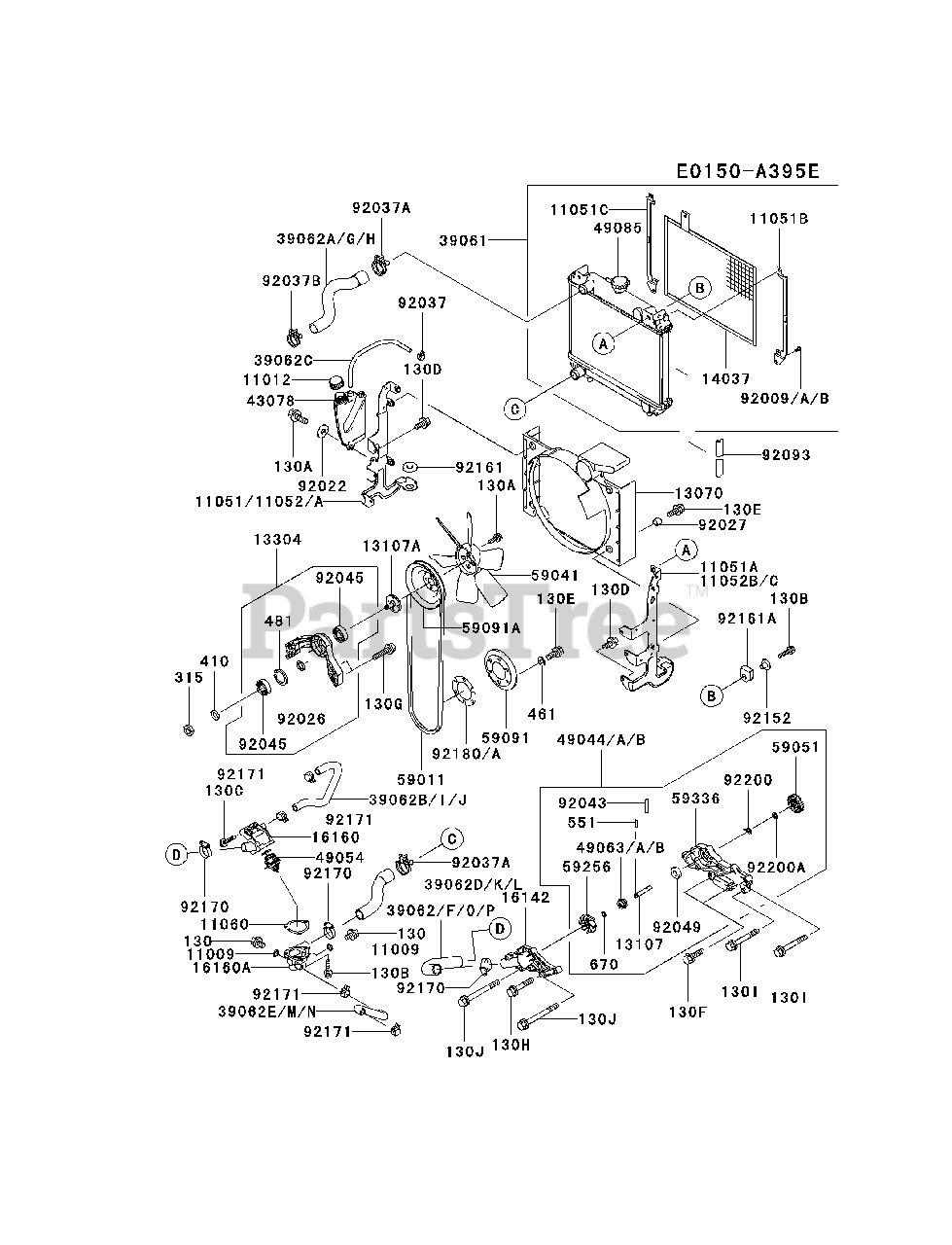

FD750D-BS02 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title
49044A

Kawasaki 49044-2067

PUMP-WATER
(Superseded to 49044-2063)

$261.99

$

In Stock, Qty 8

0

49054

Kawasaki 49054-2058

THERMOSTAT

$58.99

$

In Stock, Qty 6

0

49063A

Kawasaki 49063-1056

SEAL-MECHANICAL
(Superseded to 49063-1054)

$

$

Not available

49085

Kawasaki 49085-2052

CAP-ASSY-PRESSURE

$23.99

$

In Stock, Qty 8

0

59011

$26.99

$

In Stock, Qty 9

0

$66.99

$

In Stock, only 3 left!

0

59051

Kawasaki 59051-2355

GEAR-SPUR,25T

$9.49

$

In Stock, only 2 left!

0

59091

$12.99

$

Usually ships in 2-5 days

0

59091A

$18.99

$

Usually ships in 2-5 days

0

59256

$21.99

$

In Stock, only 1 left!

0

59336

$126.99

$

Usually ships in 2-5 days

0

92009A

$0.99

$

In Stock, only 1 left!

0

92026

Kawasaki 92026-2311

SPACER,12X18X1.4

$0.99

$

In Stock, only 1 left!

0

92027

Kawasaki 92027-1568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92037

$1.49

$

In Stock, only 3 left!

0

92037A

$

$

Not available

92037B

$2.49

$

In Stock, Qty 6

0

$0.99

$

In Stock, Qty 6

0

92045

Kawasaki 92045-2191

BEARING-BALL,6001DDUC3

$16.99

$

Usually ships in 2-5 days

0

92049

$4.49

$

In Stock, Qty 12

0

92093

$5.99

$

Usually ships in 2-5 days

0

92152

$4.49

$

In Stock, only 2 left!

0

92161

Kawasaki 92161-2053

DAMPER,RADIATOR,LWR

$4.49

$

In Stock, only 2 left!

0

92161A

Kawasaki 92161-2054

DAMPER,RADIATOR,UPP

$2.99

$

In Stock, only 2 left!

0

92170

Kawasaki 92170-1284

CLAMP
(Superseded to 92171-0179)

$8.99

$

Usually ships in 2-5 days

0

92171

$1.99

$

In Stock, only 1 left!

0

92180

Kawasaki 92180-2013

SHIM,T=0.6

$1.99

$

In Stock, Qty 6

0

92180A

Kawasaki 92180-2014

SHIM,T=1.2

$2.49

$

In Stock, Qty 11

0

92200

$1.49

$

In Stock, only 3 left!

0

92200A

Kawasaki 92200-2135

WASHER,10.2X19X0.8

$1.49

$

In Stock, only 2 left!

0

130

Kawasaki 130C0812

BOLT-FLANGED
(Superseded to 130AB0812)

$0.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0616

BOLT-FLANGED
(Superseded to 130BA0616)

$1.49

$

In Stock, only 2 left!

0

130B

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0
