FD750D-AS06 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

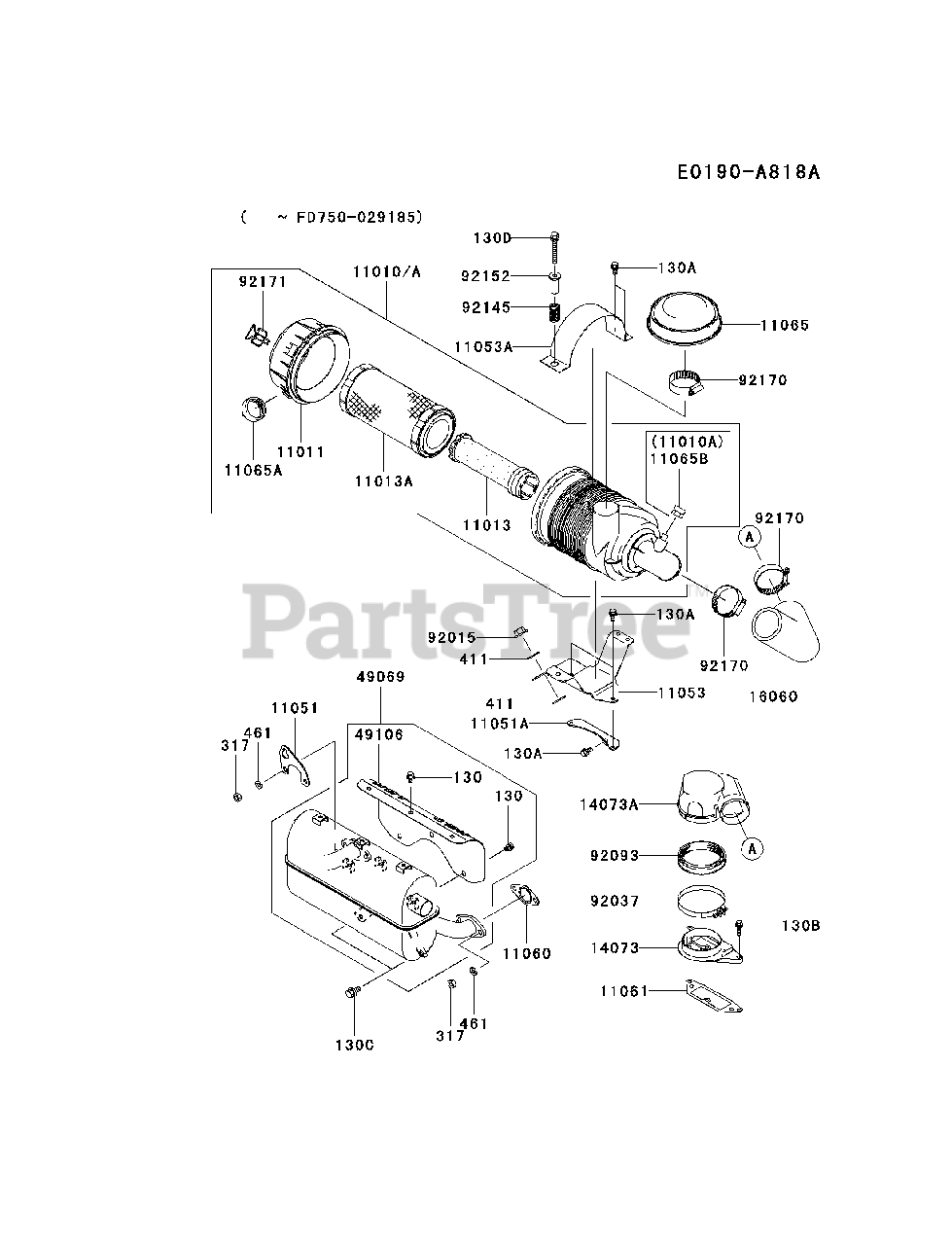

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7004

FILTER-ASSY-AIR
(Superseded to 11010-7011)

$

$

Not available

11010A

Kawasaki 11010-7011

FILTER-ASSY-AIR
(Superseded to 11010-7032)

$

$

Not available

11011

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 1 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, only 2 left!

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 14

0

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-2089

BRACKET,AIR FILTER

$9.49

$

Usually ships in 2-5 days

0

11053

Kawasaki 11053-2055-9H

BRACKET,LOWER

$12.99

$

Usually ships in 2-5 days

0

11053A

Kawasaki 11053-2056-9H

BRACKET,UPPER

$7.49

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 10

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, only 3 left!

0

11065A

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 5

0

11065B

Kawasaki 11065-7009

CAP

$10.99

$

In Stock, only 1 left!

0

14073

Kawasaki 14073-2075

DUCT,LOW
(Superseded to 14073-2084)

$29.99

$

In Stock, only 1 left!

0

14073A

Kawasaki 14073-2076

DUCT,UPP
(Superseded to 99916-2182)

$

$

Not available

16060

Kawasaki 16060-2199

PIPE-INTAKE
(Superseded to 16060-2208)

$24.99

$

In Stock, only 2 left!

0

49069

Kawasaki 49069-2356-9Y

MUFFLER-ASSY
(Superseded to 49069-2347-9Y)

$428.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2644-9Y

COVER-MUFFLER

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92037

Kawasaki 92037-1654

CLAMP

$13.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-2118

SEAL

$12.99

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-2120

SPRING

$2.49

$

In Stock, only 1 left!

0

92152

Kawasaki 92152-2083

COLLAR

$12.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 7

0

130

Kawasaki 130AA0608

BOLT-FLANGED
(Superseded to 92153-1005)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0614

BOLT-FLANGED
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 6

0

130B

Kawasaki 130BA0620

BOLT-FLANGED
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130BA0816

BOLT-FLANGED
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130D

Kawasaki 130BA0855

BOLT-FLANGED
(Superseded to 130D0855)

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
