FD750D-AS02 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

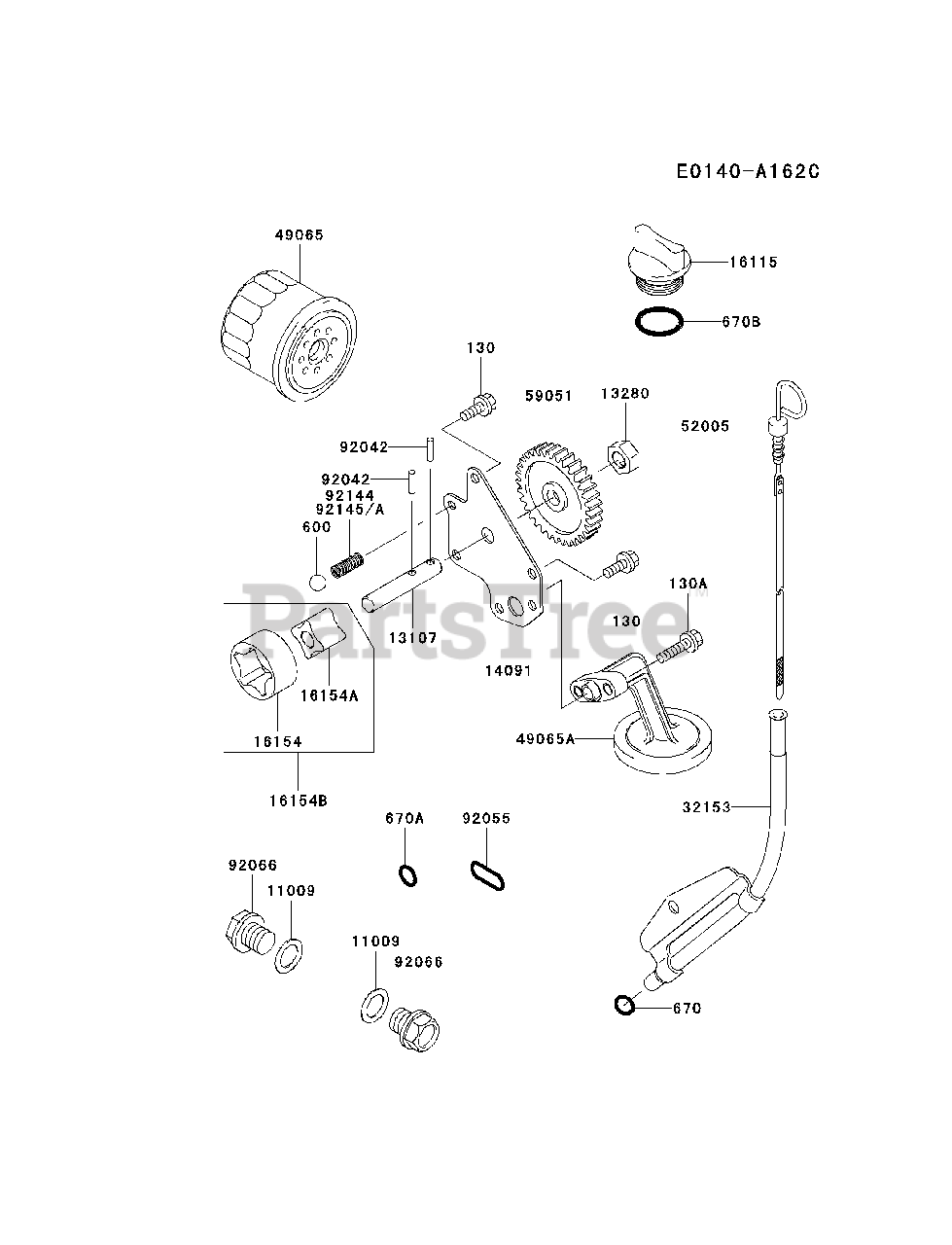

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 8

0

13107

Kawasaki 13107-2281

SHAFT,OIL PUMP

$11.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-2061

HOLDER,OIL PUMP

$6.49

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-2065

COVER,OIL PUMP

$9.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-2126

CAP-OIL FILLER

$2.99

$

In Stock, only 4 left!

0

16154

Kawasaki 16154-1075

ROTOR-PUMP,OUTER

$22.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 16154-1076

ROTOR-PUMP,INNER

$22.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 16154-1079

ROTOR-PUMP

$29.99

$

In Stock, only 2 left!

0

32153

Kawasaki 32153-2076-9H

PIPE,OIL GAUGE

$31.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 20+

0

49065A

Kawasaki 49065-2082

FILTER-OIL

$30.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 52005-2132

GAUGE,OIL

$26.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2354

GEAR-SPUR,33T

$21.99

$

In Stock, only 3 left!

0

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 12

0

92055

Kawasaki 92055-2086

RING-O

$1.49

$

In Stock, Qty 17

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92144

Kawasaki 92144-2053

SPRING
(Superseded to 92145-2132)

$0.99

$

In Stock, only 1 left!

0

92145A

Kawasaki 92145-2132

SPRING

$0.99

$

In Stock, only 1 left!

0

130

Kawasaki 130G0616

BOLT-FLANGED
(Superseded to 130BA0616)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

600

Kawasaki 600A1300

BALL-STEEL

$0.99

$

In Stock, Qty 14

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 10

0

670A

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0

670B

Kawasaki 670B3025

O RING,25MM

$1.49

$

In Stock, only 1 left!

0
