FD750D-AS02 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

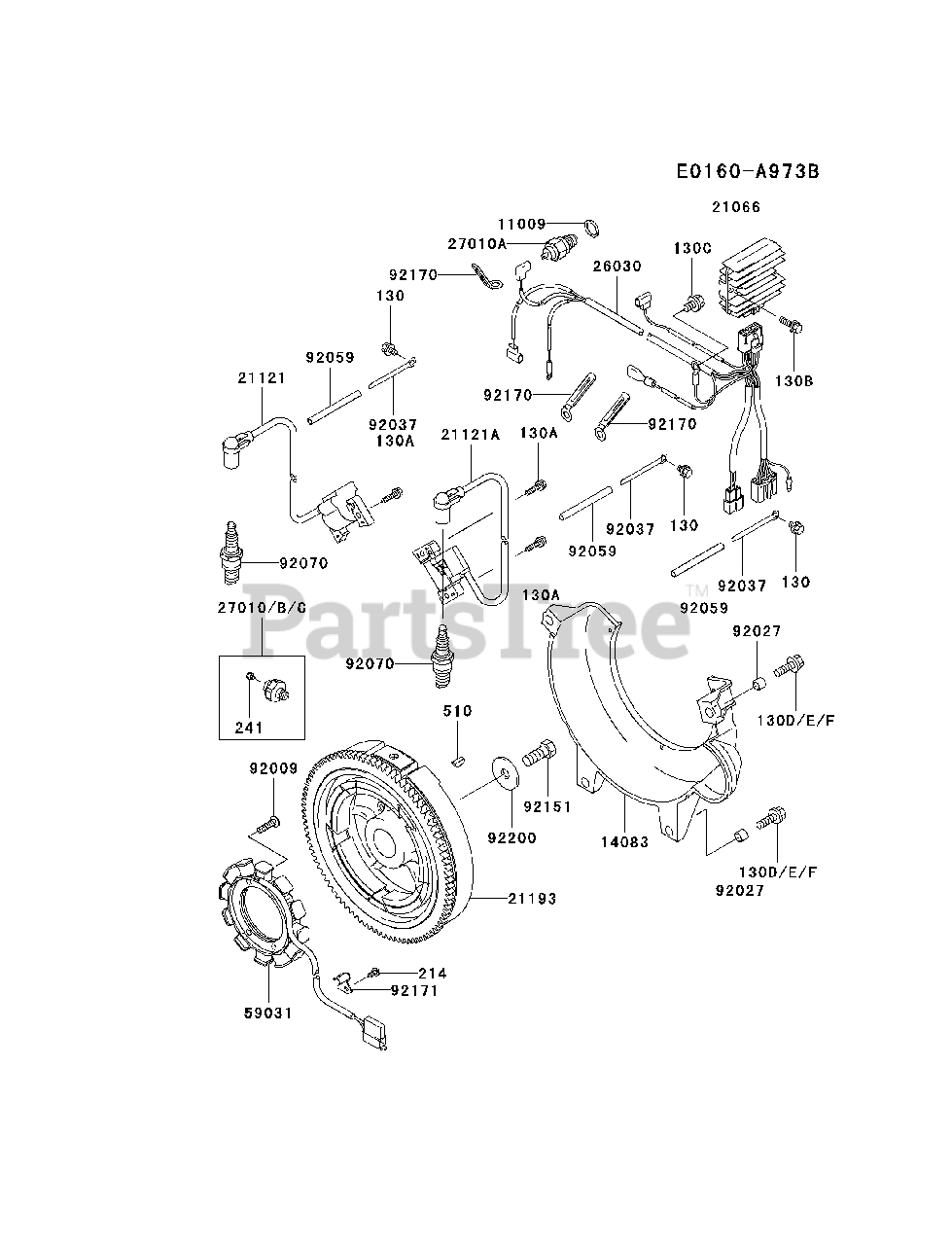

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET,16X24X1
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

14083

Kawasaki 14083-2055

COVER-FLYWHEEL

$41.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21121

Kawasaki 21121-2090

COIL-IGNITION,NO1

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

COIL-IGNITION,NO2

$66.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2187

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$526.99

$

Usually ships in 2-5 days

0

26030

$66.99

$

In Stock, only 3 left!

0

27010

Kawasaki 27010-2170

SWITCH
(Superseded to 27010-2234)

$19.99

$

In Stock, Qty 7

0

27010A

$38.99

$

In Stock, Qty 5

0

27010C

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

In Stock, Qty 7

0

59031

Kawasaki 59031-2123

COIL-CHARGING

$196.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-1568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92037

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2110

PLUG-SPARK,BPR2ES,SOLID
(Superseded to BPR2ES)

Note: NGK

$3.99

$

In Stock, only 2 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 19

0

92170

$3.99

$

Usually ships in 2-5 days

0

92171

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130C0608

BOLT-FLANGED
(Superseded to 130AB0608)

$3.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0520

BOLT-FLANGED
(Superseded to 130BA0520)

$0.99

$

In Stock, only 2 left!

0

130B

Kawasaki 130G0620

BOLT-FLANGED
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

130C

Kawasaki 130G0812

BOLT-FLANGED
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0

130D

Kawasaki 130G0820

BOLT-FLANGED
(Superseded to 130BA0820)

$4.99

$

Usually ships in 2-5 days

0

130F

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

241

Kawasaki 241B0406

SCREW-PAN-WP+-
(Superseded to 223AA0406)

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
