FD750D-AS01 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

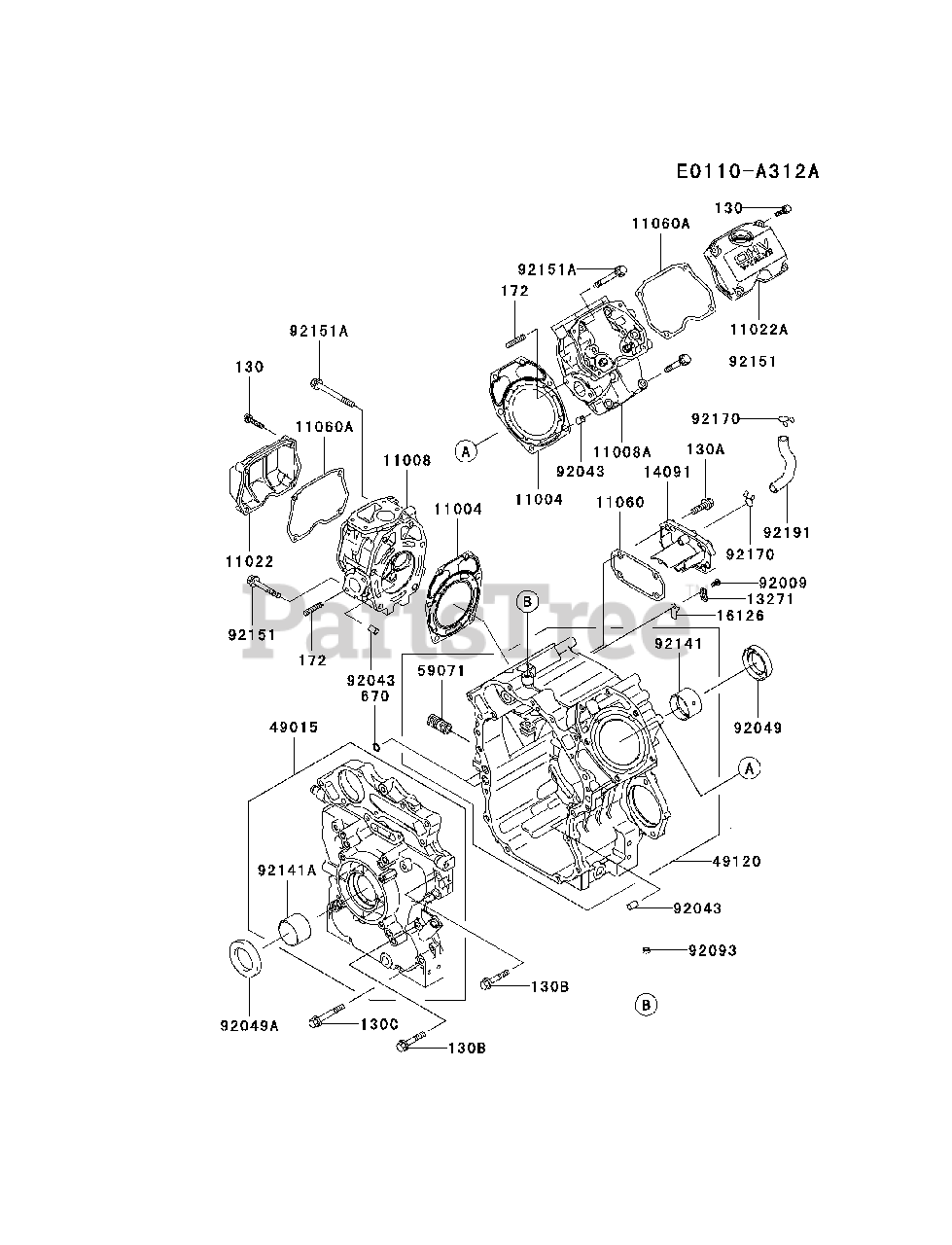

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-2142

GASKET-HEAD

$58.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-2145

HEAD-COMP-CYLINDER
(Superseded to 11008-0823)

$333.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-2146

HEAD-COMP-CYLINDER
(Superseded to 11008-0824)

$334.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-2072

CASE-ROCKER

$50.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 11022-2073

CASE-ROCKER

$59.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2466

GASKET,BREATH

$6.99

$

In Stock, Qty 6

0

11060A

Kawasaki 11060-2470

GASKET,ROCKER CASE

$6.49

$

In Stock, Qty 20+

0

13271

$1.49

$

In Stock, only 2 left!

0

14091

Kawasaki 14091-2064

COVER,BREATH

$22.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2225

VALVE,BREATH

$1.49

$

In Stock, only 1 left!

0

49015

Kawasaki 49015-6233

COVER-CRANKCASE
(Superseded to 49015-6293)

$471.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-6127

CRANKCASE-COMP
(Superseded to 49120-6134)

$

$

Not available

59071

$6.49

$

In Stock, Qty 8

0

92009

$0.99

$

In Stock, Qty 10

0

$0.99

$

In Stock, Qty 20+

0

92049

$14.99

$

In Stock, only 3 left!

0

92049A

$15.99

$

In Stock, only 2 left!

0

92093

Kawasaki 92093-2086

SEAL
(Superseded to 92049-2255)

$3.49

$

In Stock, Qty 6

0

92141

Kawasaki 92141-2118

BEARING-PLANE
(Superseded to 92141-2123)

$25.99

$

Usually ships in 2-5 days

0

92141A

Kawasaki 92141-2119

BEARING-PLANE
(Superseded to 92141-2124)

$25.99

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2158

BOLT,8X55
(Superseded to 92153-2130)

$2.49

$

Usually ships in 2-5 days

0

92151A

Kawasaki 92151-2159

BOLT,8X80
(Superseded to 92153-2132)

$2.49

$

In Stock, Qty 20+

0

92170

$0.99

$

In Stock, only 3 left!

0

92191

Kawasaki 92191-2105

TUBE
(Superseded to 92192-1611)

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0630

BOLT-FLANGED
(Superseded to 130BA0630)

$1.99

$

In Stock, Qty 15

0

130A

Kawasaki 130G0830

BOLT-FLANGED
(Superseded to 130BA0830)

$3.99

$

In Stock, Qty 5

0

130B

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

130C

Kawasaki 130G0860

BOLT-FLANGED
(Superseded to 130BA0860)

$1.99

$

In Stock, Qty 9

0

172

Kawasaki 172G0822

BOLT-STUD
(Superseded to 172BA0822)

$2.49

$

In Stock, Qty 20+

0

670

$1.49

$

In Stock, Qty 20+

0
