FD731V-ES01 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

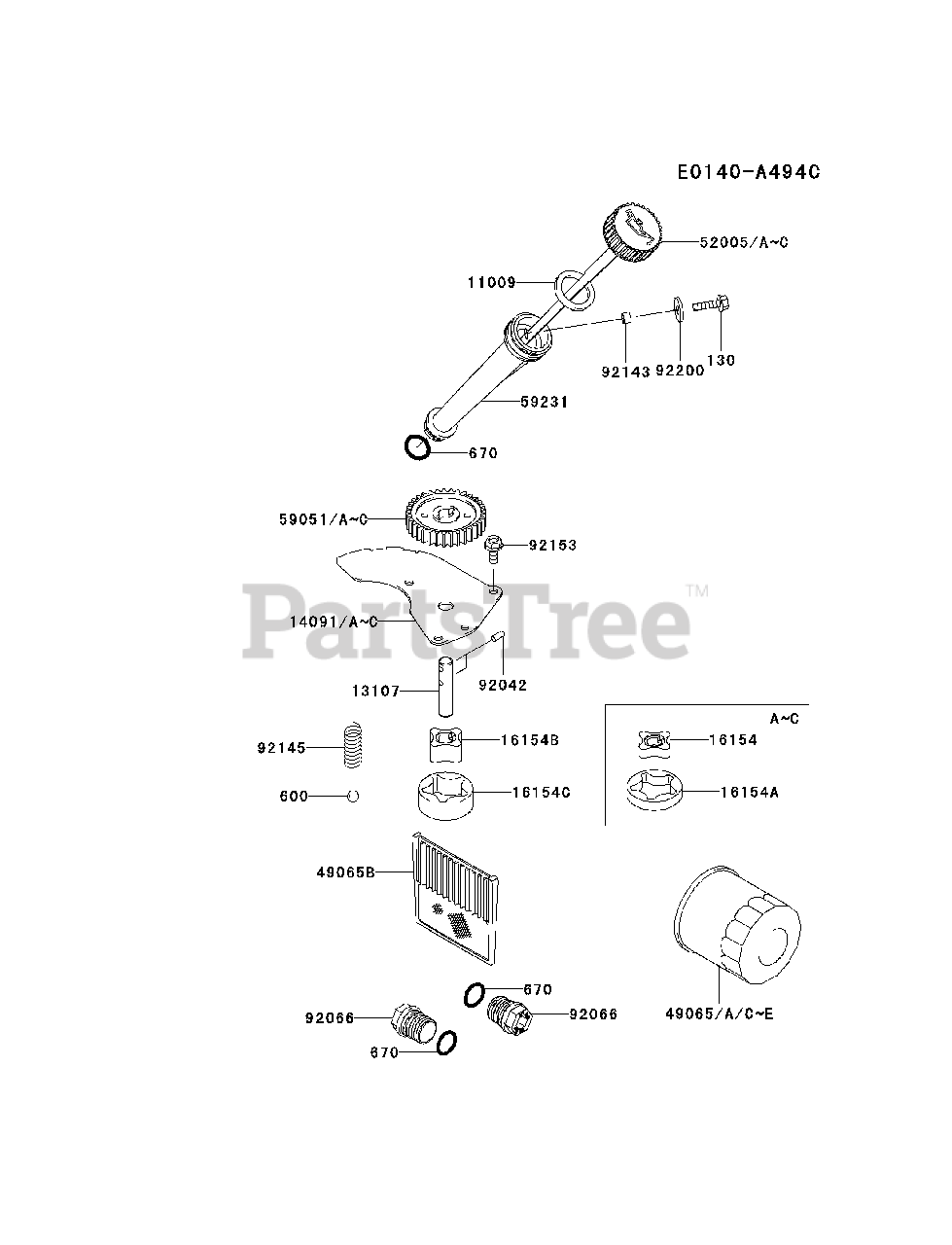

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2346

GASKET,OIL GAUGE
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

13107

Kawasaki 13107-2296

SHAFT,OIL PUMP
(Superseded to 13107-2099)

$12.99

$

In Stock, only 1 left!

0

14091B

Kawasaki 14091-2143

COVER

$9.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 16154-7007

ROTOR-PUMP,IN

$8.49

$

In Stock, Qty 6

0

16154C

Kawasaki 16154-7008

ROTOR-PUMP,OUT

$19.99

$

In Stock, only 3 left!

0

49065

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 20+

0

49065B

Kawasaki 49065-2085

FILTER-OIL

$7.99

$

Usually ships in 2-5 days

0

52005B

Kawasaki 52005-2153

GAUGE,OIL LEVEL
(Superseded to 52005-2150)

$13.99

$

In Stock, only 1 left!

0

59051

Kawasaki 59051-2114

GEAR-SPUR
(Superseded to 59051-2371)

$7.49

$

In Stock, only 1 left!

0

59231

Kawasaki 59231-2096

FILLER

$8.99

$

Usually ships in 2-5 days

0

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 11

0

92066

Kawasaki 92066-2250

PLUG

$4.99

$

Usually ships in 2-5 days

0

92143

Kawasaki 92143-2182

COLLAR,6.2X7.8X5

$4.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2132

SPRING

$0.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-2109

BOLT,6X14

$1.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2037

WASHER,6.5X18X2.0

$0.99

$

In Stock, only 4 left!

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

600

Kawasaki 600A1300

BALL-STEEL,13/32"

$0.99

$

In Stock, Qty 14

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
