FD731V-AS09 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

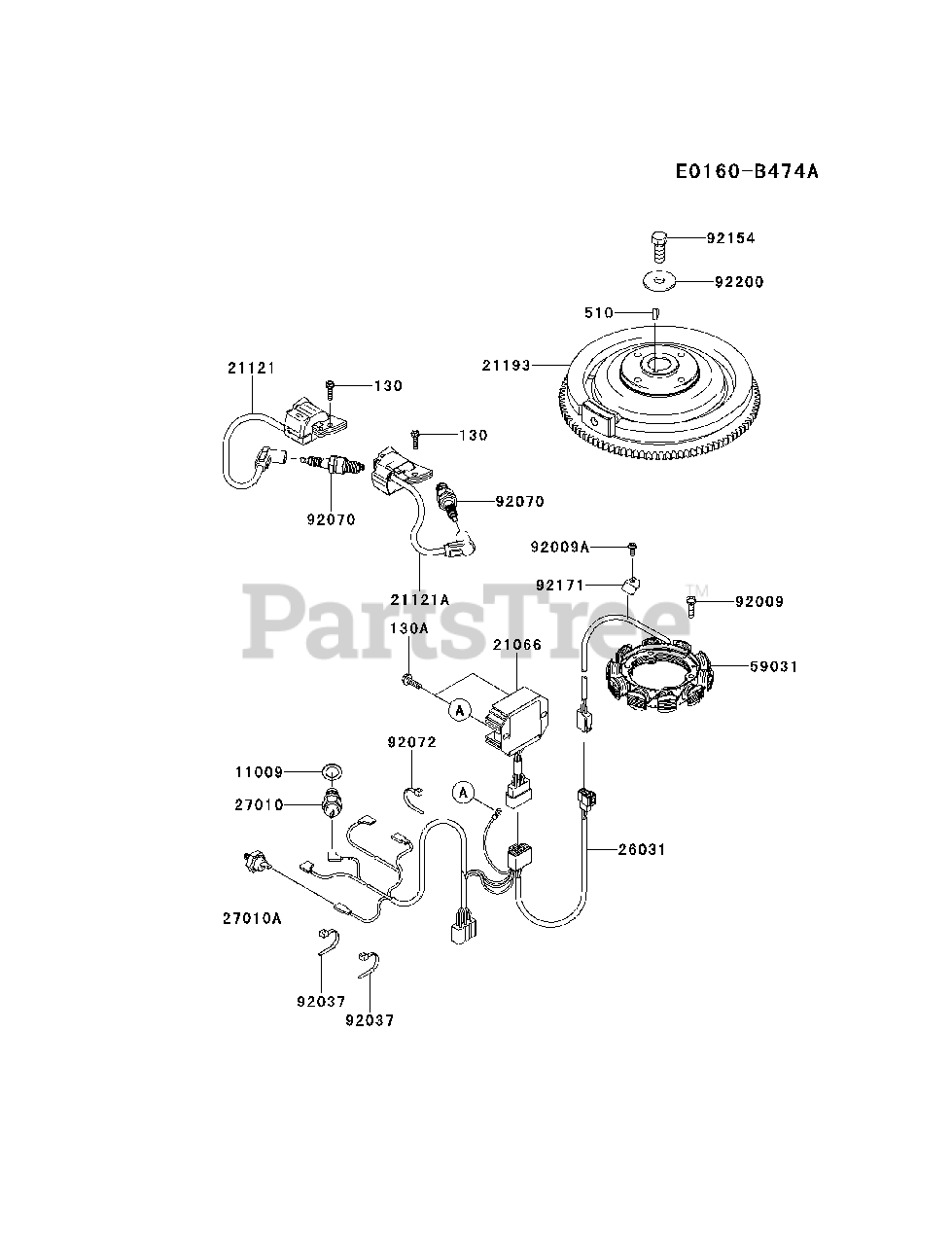

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0

11009

Kawasaki 11009-2766

GASKET,16X21X2
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

21066

Kawasaki 21066-2085

REGULATOR-VOLTAGE
(Superseded to 21066-2081)

$156.99

$

In Stock, Qty 6

0

21121

Kawasaki 21121-2105

COIL-IGNITION
(Superseded to 21121-0709)

$

$

Not available

21121A

Kawasaki 21121-2106

COIL-IGNITION
(Superseded to 21121-2104)

$

$

Not available

21193

Kawasaki 21193-2192

FLYWHEEL-ASSY
(Superseded to 21193-2190)

$534.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-2064

HARNESS

$70.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-2182

SWITCH

$38.99

$

In Stock, Qty 5

0

27010A

Kawasaki 27010-2232

SWITCH

$23.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2131

COIL-CHARGING

$195.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92037

Kawasaki 92037-1173

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-1195

BAND

$1.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 19

0

92171

Kawasaki 92171-2078

CLAMP

$

$

Not available

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0
