FD731V-AS09 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

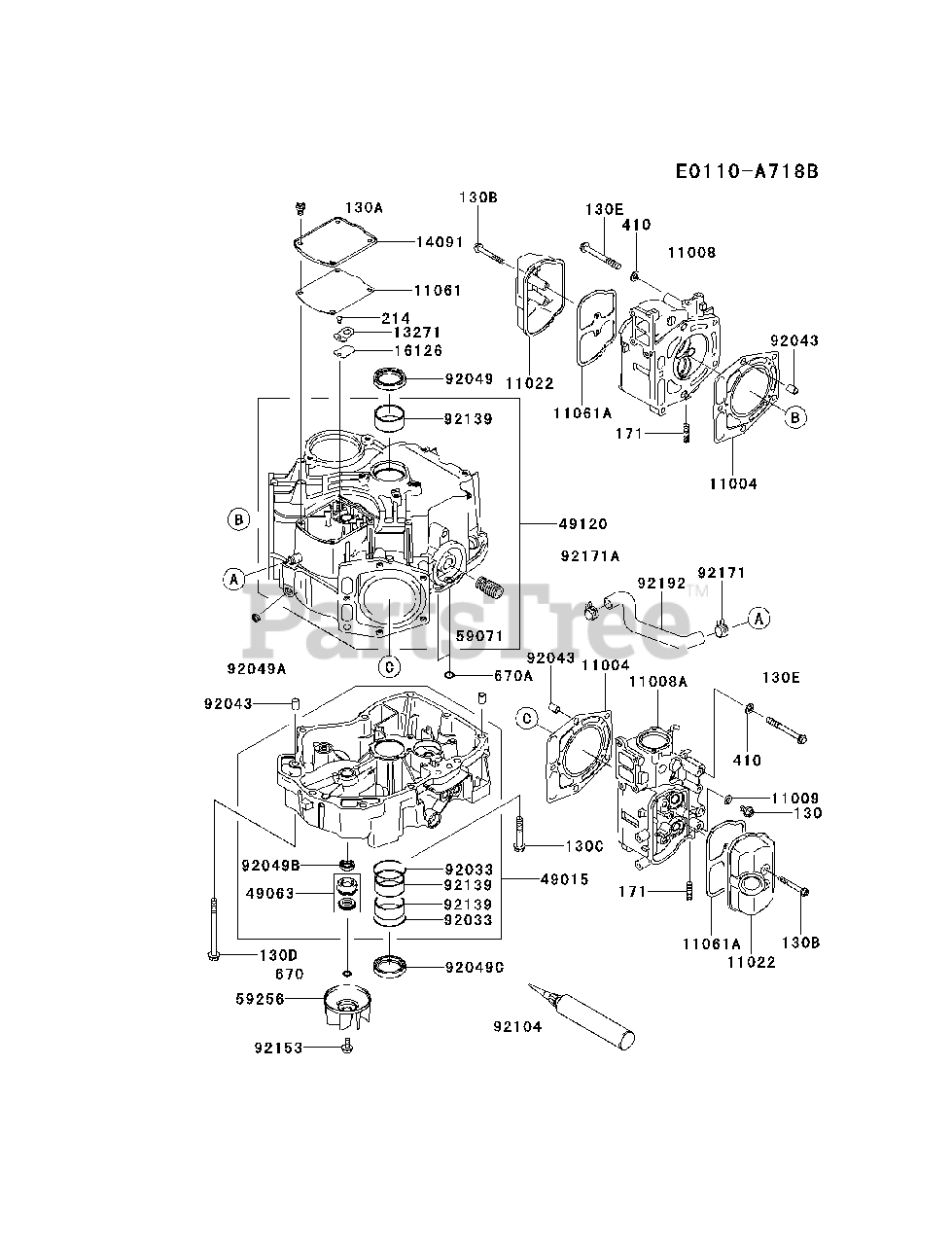

CYLINDER/CRANKCASE Parts Diagram

  • Title
130

Kawasaki 130AA0812

BOLT-FLANGED,8X12
(Superseded to 130B0812)

$0.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130BA0650

BOLT-FLANGED,6X50
(Superseded to 92003-179)

$1.49

$

In Stock, Qty 6

0

130C

Kawasaki 130BA0850

BOLT-FLANGED,8X50
(Superseded to 130B0850)

$

$

Not available

130D

Kawasaki 130CA08100

BOLT-FLANGED,8X100
(Superseded to 130T08100)

$2.99

$

Usually ships in 2-5 days

0

130E

Kawasaki 130CA0870

BOLT-FLANGED,8X70
(Superseded to 130G0870)

$

$

Not available

171

Kawasaki 171BA0818

BOLT-STUD,8X18
(Superseded to 171B0818)

$1.99

$

In Stock, only 2 left!

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 11

0

410

Kawasaki 410B0800

W-PLAIN-S,8MM
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670B1509

O RING,9MM

$3.99

$

In Stock, only 2 left!

0

670A

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0

11004

Kawasaki 11004-2144

GASKET-HEAD

$28.99

$

In Stock, Qty 13

0

11008

Kawasaki 11008-2163

HEAD-COMP-CYLINDER

$300.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-2164

HEAD-COMP-CYLINDER

$301.99

$

In Stock, only 1 left!

0

11009

Kawasaki 11009-2161

GASKET,DRAIN
(Superseded to 318290-7447-00)

$0.99

$

In Stock, only 3 left!

0

11022

Kawasaki 11022-2078

CASE-ROCKER

$35.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2127

GASKET,BREATHER COVER

$9.49

$

In Stock, only 1 left!

0

11061A

Kawasaki 11061-2137

GASKET,CASE-ROCKER

$7.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-2230

PLATE,BREATHER

$1.49

$

In Stock, only 2 left!

0

14091

Kawasaki 14091-2112

COVER,BREATHER COVER

$6.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2239

VALVE,BREATHER

$0.99

$

In Stock, Qty 5

0

49015

Kawasaki 49015-2446

COVER-CRANKCASE

$403.99

$

Usually ships in 2-5 days

0

49063

Kawasaki 49063-1055

SEAL-MECHANICAL
(Superseded to 49063-1002)

$21.99

$

In Stock, only 3 left!

0

49120

Kawasaki 49120-2371

CRANKCASE-COMP

$1078.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

59256

Kawasaki 59256-2071

IMPELLER

$32.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2195

RING-SNAP

$1.49

$

In Stock, only 2 left!

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2254

SEAL-OIL,35X48X8

$8.49

$

In Stock, Qty 16

0

92049A

Kawasaki 92049-2255

SEAL-OIL,VC 8X12X2.5

$3.49

$

In Stock, Qty 6

0

92049B

Kawasaki 92049-2257

SEAL-OIL,12X22X5

$7.99

$

In Stock, Qty 10

0

92049C

Kawasaki 92049-2270

SEAL-OIL,TC 38X50X8

$3.49

$

Usually ships in 2-5 days

0

92104

Kawasaki 92104-2068

GASKET-LIQUID,TB1207B

$76.99

$

Usually ships in 2-5 days

0

92139

Kawasaki 92139-7009

BUSHING

$

$

Not available

92153

Kawasaki 92153-2122

BOLT,6X14

$1.49

$

In Stock, Qty 10

0

92171

Kawasaki 92171-0332

CLAMP

$2.49

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-2056

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2071

TUBE,BREATHER

$9.49

$

Usually ships in 2-5 days

0
