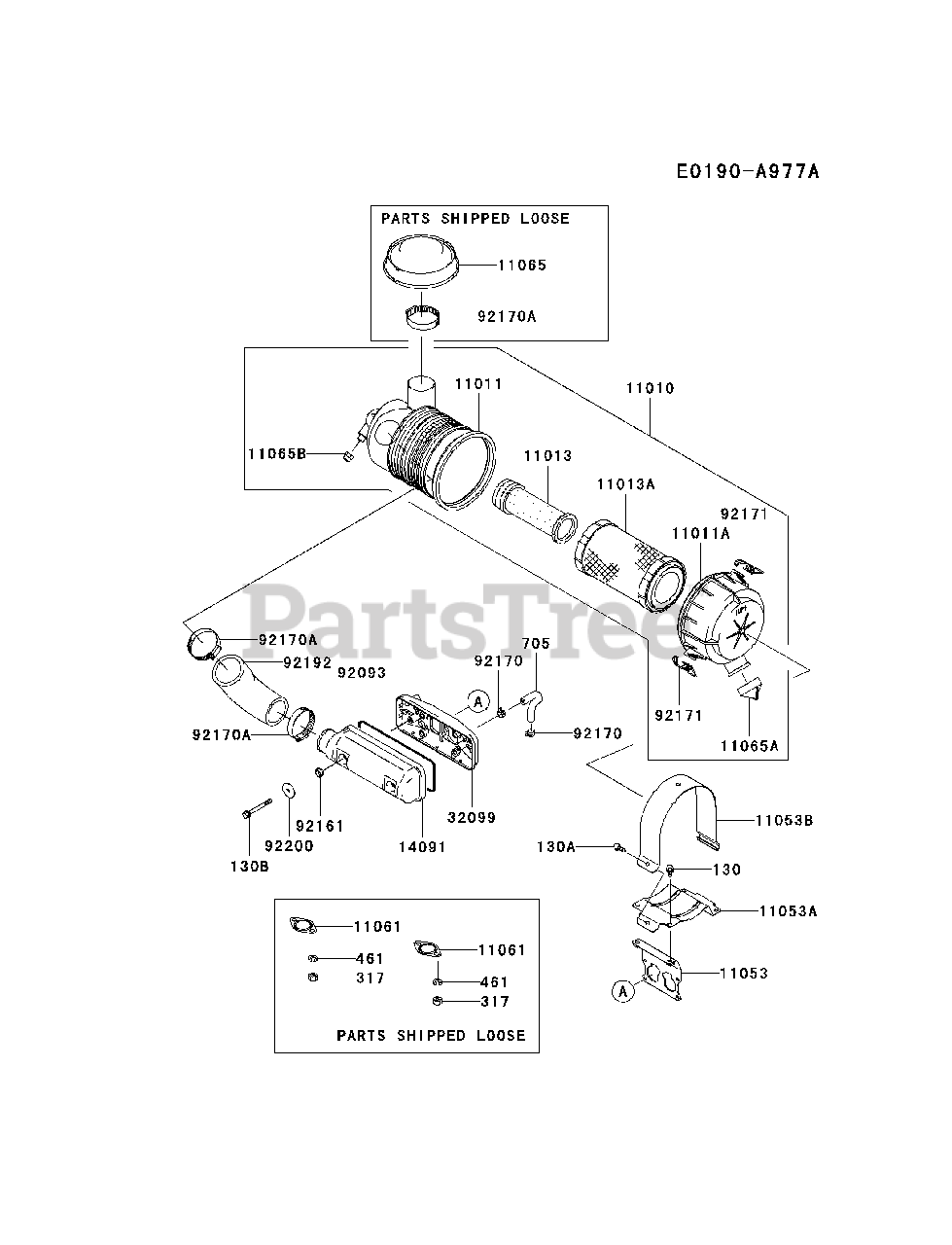

FD731V-AS06 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2579

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2364

CASE-AIR FILTER

$62.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 3 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-2088

BRACKET

$9.99

$

Usually ships in 2-5 days

0

11053A

Kawasaki 11053-2089

BRACKET

$13.99

$

In Stock, only 1 left!

0

11053B

Kawasaki 11053-2090

BRACKET

$8.49

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2126

GASKET,MUFFLER

$3.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 11065-7009

CAP

$10.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-2106

COVER

$43.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-6005

CASE

$53.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-2115

SEAL

$3.99

$

In Stock, Qty 14

0

92161

Kawasaki 92161-2058

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2043

CLAMP

$1.49

$

In Stock, Qty 14

0

92170A

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 6

0

92192

Kawasaki 92192-2072

TUBE,CASE-FILTER

$27.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2144

WASHER

$2.49

$

In Stock, Qty 9

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED,6X16
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0660

BOLT-FLANGED,6X60
(Superseded to 130BA0660)

$4.99

$

Usually ships in 2-5 days

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING,8MM
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

705

Kawasaki 705A061000

TUBE-BRAID
(Superseded to 92191-2037)

$28.99

$

In Stock, Qty 5

0
