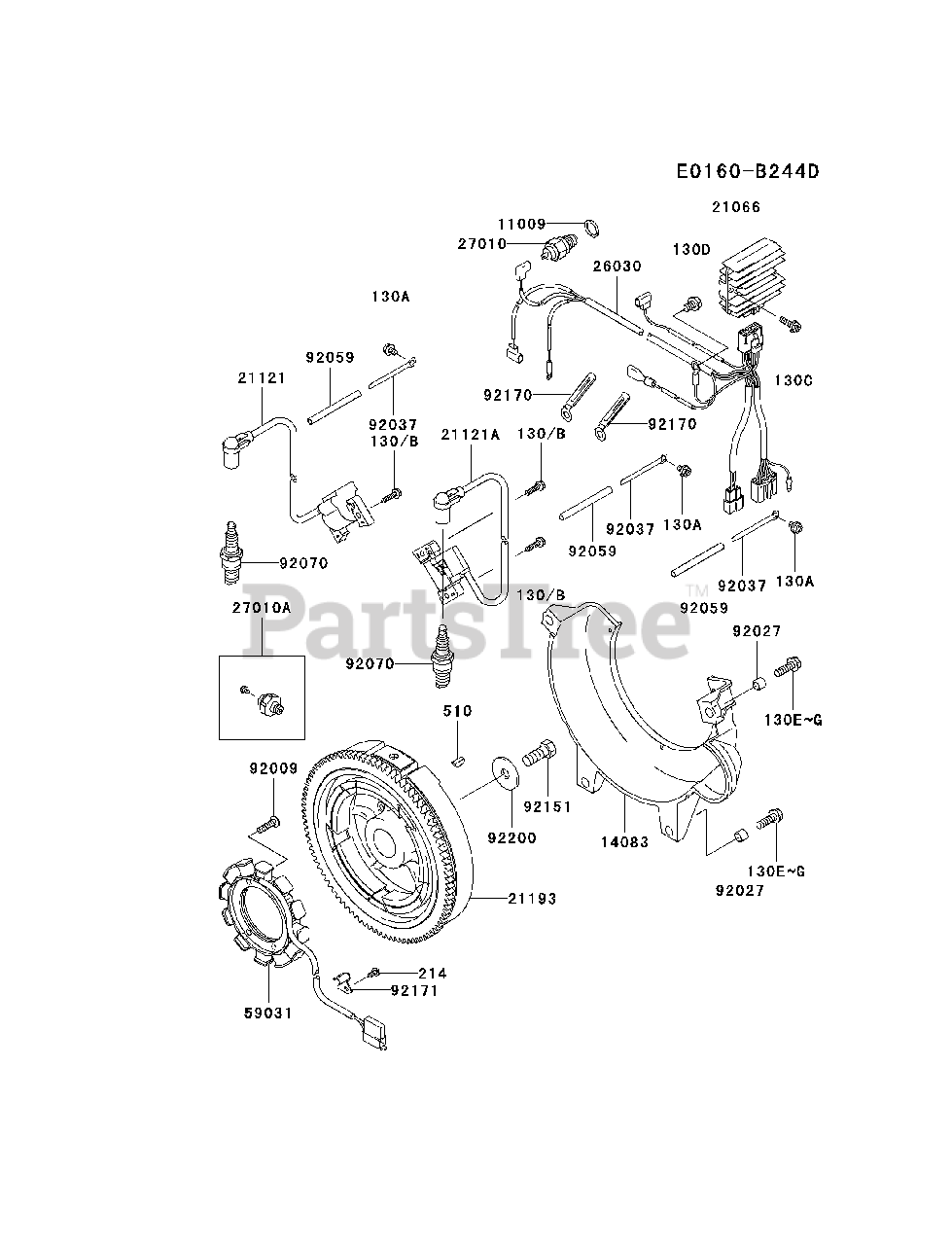

FD711D-BS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET,16X21X2
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

14083

Kawasaki 14083-2055

COVER-FLYWHEEL

$41.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21121

Kawasaki 21121-2090

COIL-IGNITION,NO1

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

COIL-IGNITION,NO2

$66.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2187

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$526.99

$

Usually ships in 2-5 days

0

26030

$66.99

$

In Stock, only 2 left!

0

27010

$38.99

$

In Stock, only 1 left!

0

27010A

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-2123

COIL-CHARGING

$196.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-1568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92037

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2110

PLUG-SPARK,BPR2ES,SOLID
(Superseded to BPR2ES)

Note: NGK

$3.49

$

In Stock, only 2 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, only 1 left!

0

92170

$3.99

$

Usually ships in 2-5 days

0

92171

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0

130A

Kawasaki 130AB0608

BOLT-FLANGED,6X8
(Superseded to 130C0608)

$3.99

$

Usually ships in 2-5 days

0

130B

Kawasaki 130BA0520

BOLT-FLANGED,5X20
(Superseded to 92154-1924)

$0.99

$

In Stock, only 2 left!

0

130C

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130D

Kawasaki 130BA0812

BOLT-FLANGED,8X12
(Superseded to 92002-2086)

$1.49

$

In Stock, only 4 left!

0

130F

Kawasaki 130BA0825

BOLT-FLANGED,8X25
(Superseded to 130D0825)

$1.49

$

In Stock, Qty 6

0

130G

Kawasaki 130G0825

BOLT-FLANGED,8X25
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 13

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
