FD711D-AS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

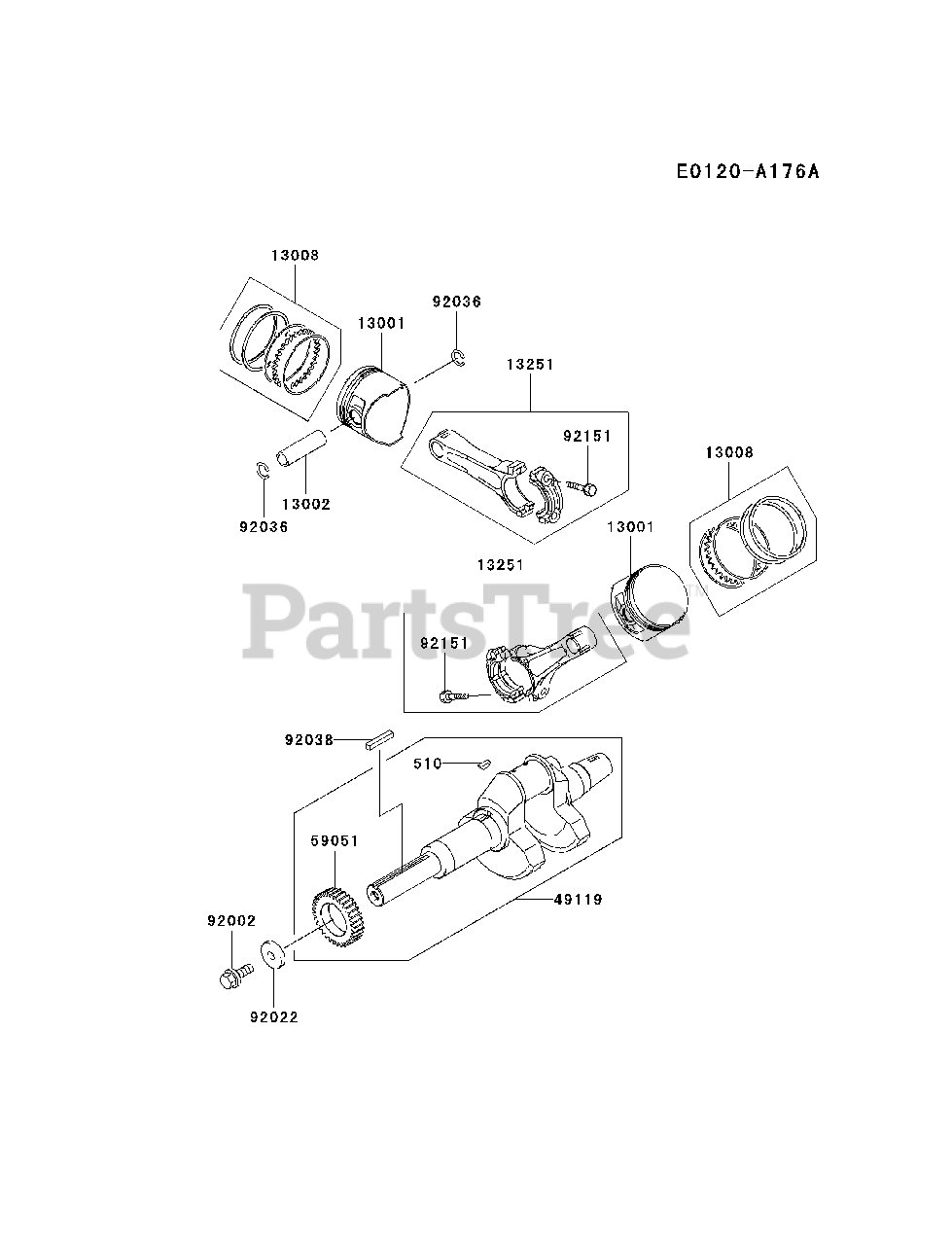

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2125

PISTON-ENGINE
(Superseded to 13001-2207)

$49.99

$

In Stock, only 2 left!

0

13002

Kawasaki 13002-2069

PIN-PISTON

$10.99

$

In Stock, only 1 left!

0

13008

Kawasaki 13008-6007

RING-SET-PISTON

$37.99

$

In Stock, Qty 6

0

13251

Kawasaki 13251-2058

ROD-ASSY-CONNECTING
(Superseded to 13251-2084)

$

$

Not available

49119

Kawasaki 49119-2198

CRANKSHAFT-ASSY
(Superseded to 49119-2206)

$650.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2358

GEAR-SPUR,33T

$

$

Not available

92002

Kawasaki 92002-2263

BOLT,10X28

$1.99

$

In Stock, only 1 left!

0

92022

$4.49

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036-008

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2150

BOLT,7X36
(Superseded to 92153-2054)

$1.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
