FD671D-AS04 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

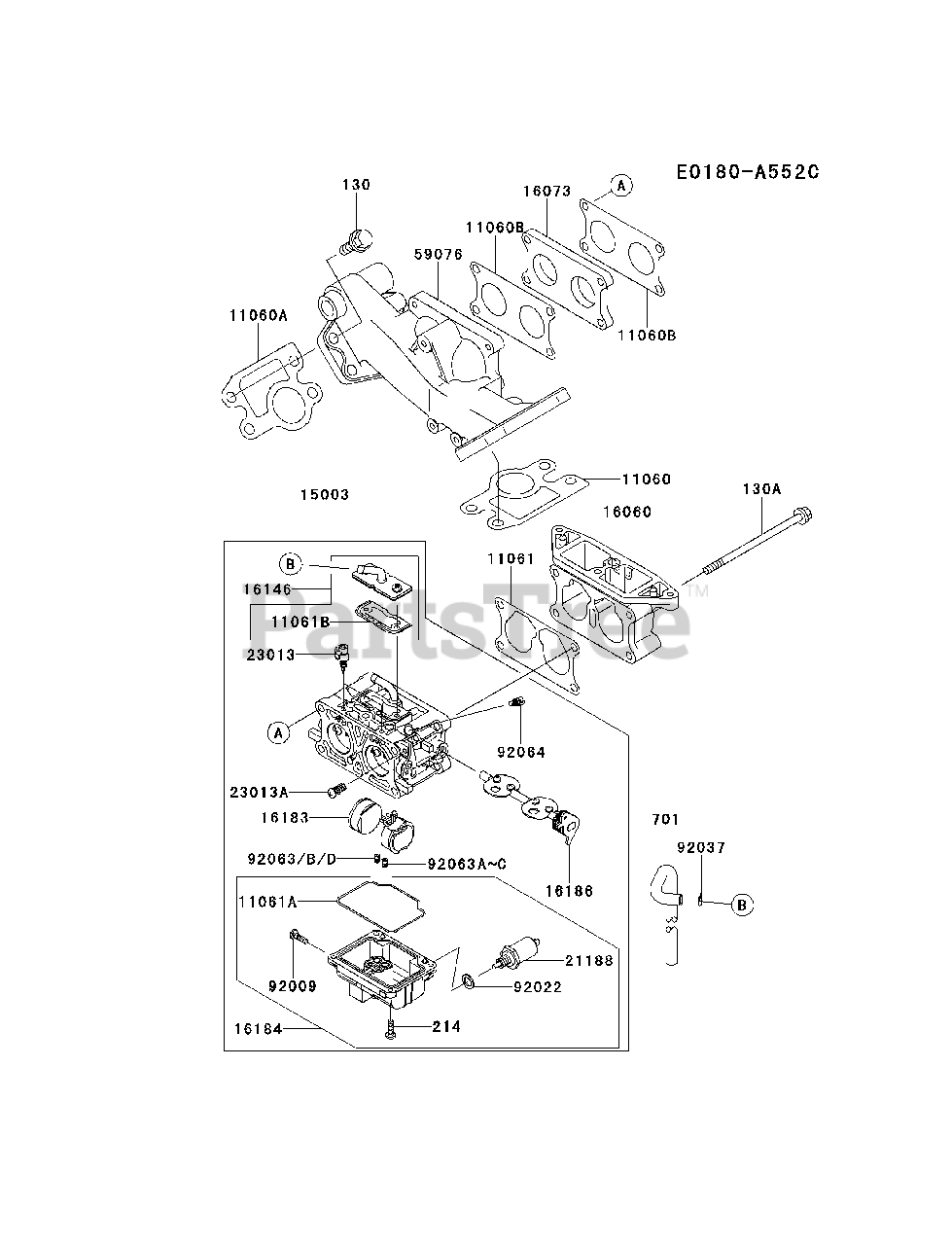

CARBURETOR Parts Diagram

  • Title
11060

Kawasaki 11060-2468

GASKET,INTAKE MANIFOLD

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

GASKET,INTAKE MANIFOLD

$5.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2471

GASKET,INTAKE PIPE

$5.49

$

In Stock, Qty 14

0

11061

Kawasaki 11061-2075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-2090

GASKET,CHAMBER

$11.99

$

In Stock, only 2 left!

0

11061B

Kawasaki 11061-2091

GASKET,COVER

$8.99

$

In Stock, Qty 5

0

15003

Kawasaki 15003-2889

CARBURETOR-ASSY
(Superseded to 15003-2983)

$

$

Not available

16060

Kawasaki 16060-2194

PIPE-INTAKE

$43.99

$

Usually ships in 2-5 days

0

16073

$14.99

$

In Stock, only 4 left!

0

16146

Kawasaki 16146-2227

COVER-ASSY

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2006

FLOAT-ASSY

$50.99

$

In Stock, only 4 left!

0

16184

Kawasaki 16184-2007

CHAMBER-ASSY-FLOAT
(Superseded to 16184-2004)

$205.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2036

VALVE-ASSY-CHOKE

$50.99

$

Usually ships in 2-5 days

0

21188

$183.99

$

In Stock, only 1 left!

0

23013

Kawasaki 23013-2063

SCREW-ASSY

$

$

Not available

23013A

Kawasaki 23013-2064

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2065

MANIFOLD-INTAKE

$188.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92022

$1.99

$

In Stock, Qty 12

0

92037

$2.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2347

JET-MAIN,2000FT,HIGHER

$10.99

$

In Stock, only 1 left!

0

92063A

Kawasaki 92063-2370

JET-MAIN,#111.3

$10.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-2396

JET-MAIN,#100

$10.99

$

In Stock, only 1 left!

0

92063C

Kawasaki 92063-2397

JET-MAIN,1000-2000FT

$10.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-2421

JET-MAIN,#108.8

$

$

Not available

92064

Kawasaki 92064-2133

JET-PILOT,#41.3

$12.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

130A

Kawasaki 130T06110

BOLT-FLANGED
(Superseded to 130CA06110)

$2.49

$

In Stock, Qty 8

0

214

Kawasaki 214B0414

SCREW-PAN+-
(Superseded to 214AA0414)

$0.99

$

In Stock, only 2 left!

0

701

$5.49

$

In Stock, Qty 11

0
