FD671D-AS00 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

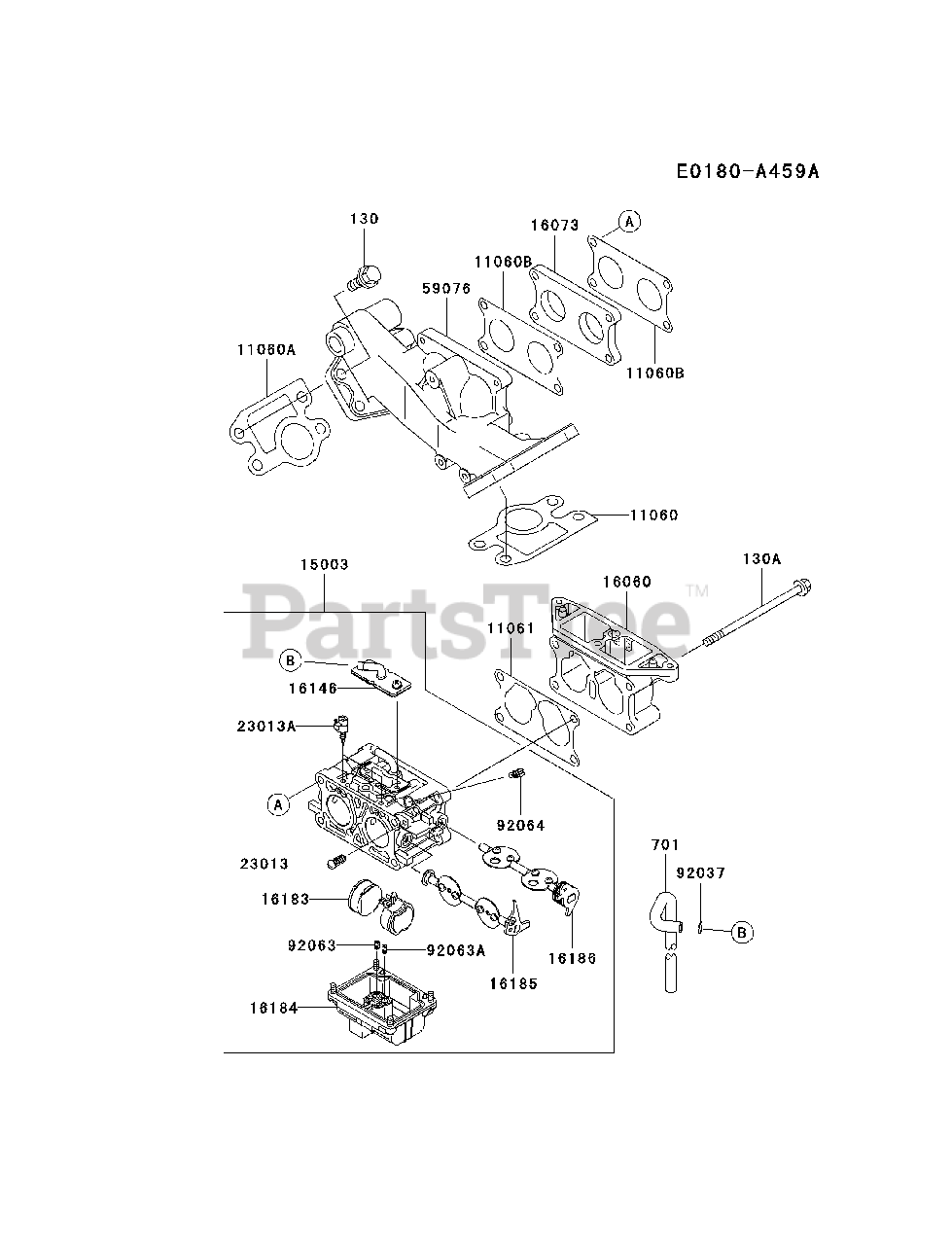

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 11060-2468

GASKET,INTAKE MANIFOLD

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

GASKET,INTAKE MANIFOLD

$5.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2471

GASKET,INTAKE PIPE

$5.49

$

In Stock, Qty 16

0

11061

Kawasaki 11061-2075

GASKET
(Superseded to 11060-2473)

$5.49

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-2787

CARBURETOR-ASSY
(Superseded to 15003-2980)

$463.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-2194

PIPE-INTAKE

$43.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2206

INSULATOR

$14.99

$

In Stock, only 4 left!

0

16146

Kawasaki 16146-2227

COVER-ASSY

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2006

FLOAT-ASSY

$50.99

$

In Stock, only 4 left!

0

16184

Kawasaki 16184-2007

CHAMBER-ASSY-FLOAT
(Superseded to 16184-2004)

$205.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2040

VALVE-ASSY-THROTTLE

$

$

Not available

16186

Kawasaki 16186-2036

VALVE-ASSY-CHOKE

$50.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2059

SCREW-ASSY

$

$

Not available

23013A

Kawasaki 23013-2063

SCREW-ASSY

$

$

Not available

59076

Kawasaki 59076-2065

MANIFOLD-INTAKE

$188.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-1610

CLAMP

$2.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2397

JET-MAIN,#102.5

$10.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-2410

JET-MAIN,#105

$10.99

$

In Stock, only 1 left!

0

92064

Kawasaki 92064-2133

JET-PILOT,#41.3

$12.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

130A

Kawasaki 130T06110

BOLT-FLANGED
(Superseded to 130CA06110)

$2.49

$

In Stock, Qty 8

0

701

Kawasaki 701Q061000

TUBE-PVC

$5.49

$

In Stock, Qty 11

0
