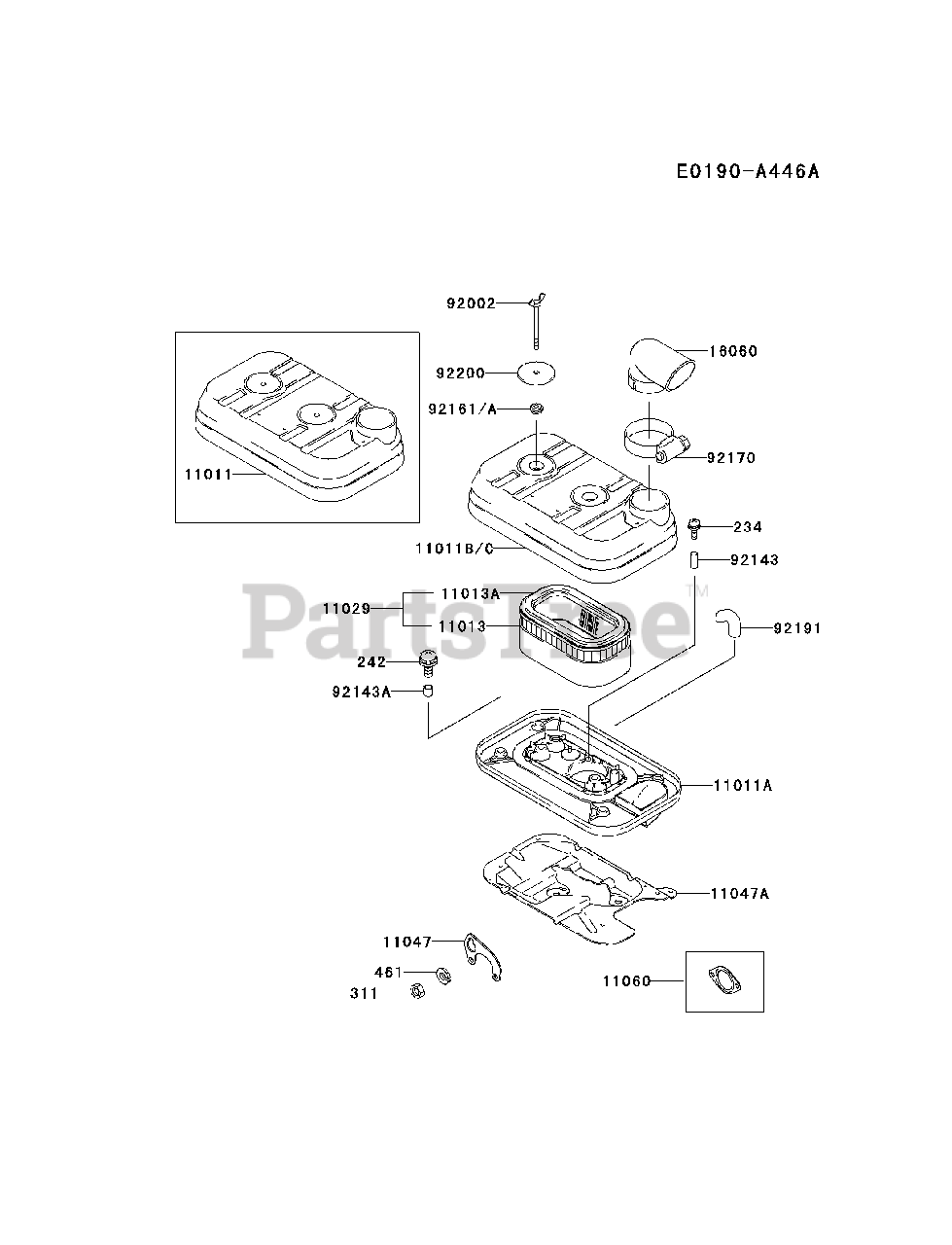

FD661D-AS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2239

CASE-AIR FILTER
(Superseded to 11011-2323)

$59.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2259

CASE-AIR FILTER
(Superseded to 11011-2224)

$37.99

$

Usually ships in 2-5 days

0

11011C

Kawasaki 11011-2323

CASE-AIR FILTER
(Superseded to 11011-2239)

$59.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2114

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-2139

ELEMENT-AIR FILTER
(Superseded to 11013-2204)

$29.99

$

In Stock, Qty 10

0

11029

Kawasaki 11029-2005

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-2016)

$41.99

$

In Stock, only 1 left!

0

11047

Kawasaki 11047-2057-9H

BRACKET

$10.99

$

Usually ships in 2-5 days

0

11047A

Kawasaki 11047-2111-9H

BRACKET
(Superseded to 11056-0941-9H)

$53.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2448

GASKET

$10.99

$

In Stock, only 2 left!

0

16060

Kawasaki 16060-2185

PIPE-INTAKE

$41.99

$

In Stock, only 1 left!

0

92002

Kawasaki 92002-2230

BOLT

$3.99

$

In Stock, only 2 left!

0

92143

Kawasaki 92143-2178

COLLAR,5.1X6.3X14

$0.99

$

In Stock, only 4 left!

0

92143A

Kawasaki 92143-2189

COLLAR,6.2X7.8X7.5

$1.49

$

In Stock, only 3 left!

0

92161A

Kawasaki 92161-2058

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-2010

TUBE

$

$

Not available

92200

Kawasaki 92200-2059-9H

WASHER

$7.49

$

In Stock, only 2 left!

0

234

Kawasaki 234B0525

SCREW-PAN-WSP+-
(Superseded to 234AA0525)

$0.99

$

In Stock, only 3 left!

0

242

Kawasaki 242B0516

SCREW-PAN-WSP+-
(Superseded to 242AA0516)

$0.99

$

In Stock, Qty 13

0

311

Kawasaki 311G0600

NUT-HEX
(Superseded to 311BA0600)

$2.49

$

In Stock, only 3 left!

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
