FD620D-FS13 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

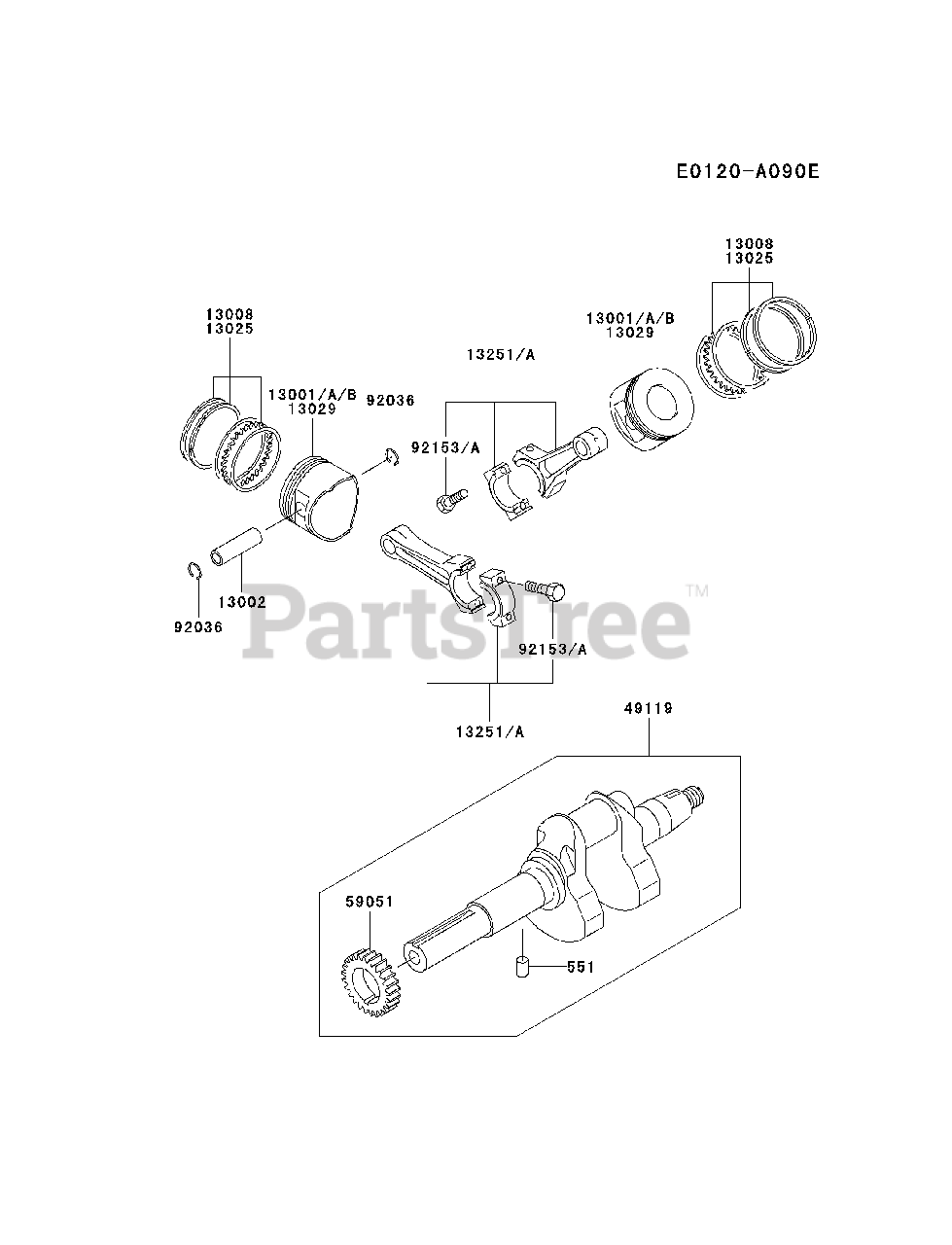

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2136

PISTON-ENGINE
(Superseded to 13001-2169)

$49.99

$

Usually ships in 2-5 days

0

13001B

Kawasaki 13001-2169

PISTON-ENGINE
(Superseded to 13001-2186)

$49.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-1013

PIN-PISTON

$7.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6025

RING-SET-PISTON

$39.99

$

In Stock, only 2 left!

0

13025

Kawasaki 13025-6008

RING-SET-PISTON L,0.50

$40.99

$

In Stock, only 1 left!

0

13029

Kawasaki 13029-2109

PISTON-ENGINE L,0.50
(Superseded to 13029-2131)

$83.99

$

In Stock, only 4 left!

0

13251

Kawasaki 13251-6068

ROD-ASSY-CONNECTING
(Superseded to 13251-0034)

$

$

Not available

13251A

Kawasaki 13251-6069

ROD-ASSY-CONNECTING,U/S=0.50
(Superseded to 13251-2087)

$81.99

$

Usually ships in 2-5 days

0

49119

Kawasaki 49119-2130

CRANKSHAFT-ASSY
(Superseded to 49119-0005)

$430.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2112

GEAR-SPUR

$40.99

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036-021

RING-SNAP

$0.99

$

In Stock, only 4 left!

0

92153

Kawasaki 92153-2054

BOLT,7X35.2

$1.99

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-2054

BOLT,7X35.2

$1.99

$

In Stock, Qty 20+

0

551

Kawasaki 551A0408

PIN-DOWEL,4X8

$0.99

$

Usually ships in 2-5 days

0
