FD620D-FS13 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

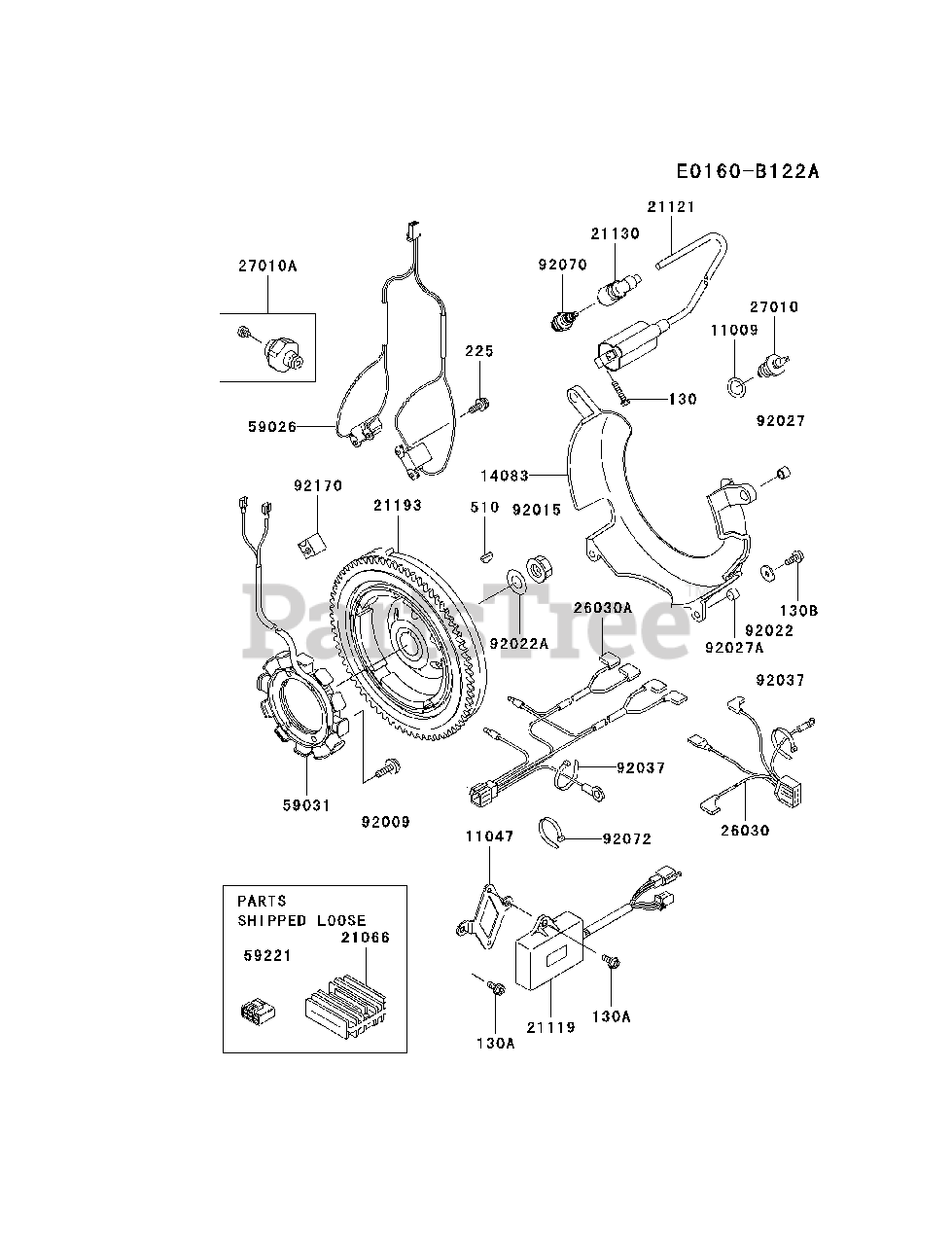

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET,16X24X1
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

11047

$14.99

$

Usually ships in 2-5 days

0

14083

Kawasaki 14083-2051

COVER-FLYWHEEL

$27.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21119

Kawasaki 21119-2157

IGNITER
(Superseded to 21119-2116)

$317.99

$

In Stock, only 1 left!

0

21121

Kawasaki 21121-2083

COIL-IGNITION
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 8

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-2149

FLYWHEEL-ASSY
(Superseded to 21193-0029)

$452.99

$

Usually ships in 2-5 days

0

26030

$26.99

$

Usually ships in 2-5 days

0

26030A

Kawasaki 26030-2167

HARNESS
(Superseded to 26030-2081)

$26.99

$

Usually ships in 2-5 days

0

27010

$38.99

$

In Stock, Qty 5

0

27010A

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

In Stock, Qty 7

0

59026

Kawasaki 59026-2054

COIL-PULSING

$

$

Not available

59031

Kawasaki 59031-2096

COIL-CHARGING
(Superseded to 59031-2108)

$190.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 59221-2099

CONNECTOR-CORD

$1.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

$7.49

$

Usually ships in 2-5 days

0

92022

$2.49

$

Usually ships in 2-5 days

0

92022A

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-1568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92027A

Kawasaki 92027-2096

COLLAR,6.2X7.8X5

$0.99

$

Usually ships in 2-5 days

0

92037

$3.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

$1.99

$

Usually ships in 2-5 days

0

92170

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130AA0614

BOLT-FLANGED,6X14
(Superseded to 130B0614)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 20+

0

225

Kawasaki 225AA0414

SCREW-PAN-WSP-CROS,4X14
(Superseded to 225B0414)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
