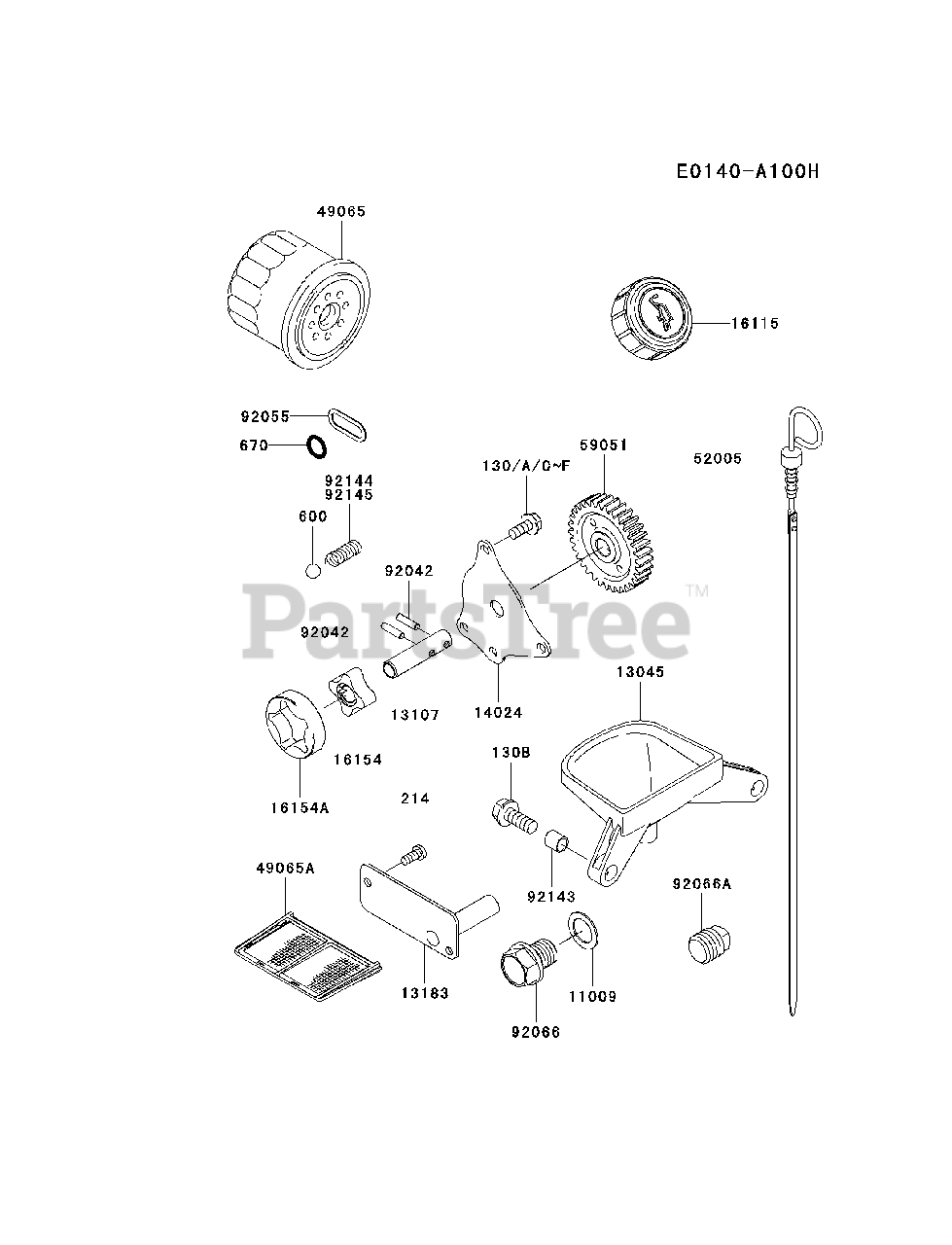

FD620D-DS19 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 8

0

13045

Kawasaki 13045-2051

RECEIVER-OIL

$8.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-2099

SHAFT,OIL PUMP
(Superseded to 13107-2296)

$12.99

$

In Stock, only 1 left!

0

13183

Kawasaki 13183-2419

PLATE

$19.99

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2113

COVER,OIL PUMP

$4.99

$

In Stock, only 1 left!

0

16115

Kawasaki 16115-2090

CAP-OIL FILLER

$10.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, Qty 5

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, Qty 5

0

49065

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 9

0

49065A

Kawasaki 49065-2072

FILTER-OIL

$7.99

$

In Stock, Qty 6

0

52005

Kawasaki 52005-2120

GAUGE,OIL
(Superseded to 52005-2114)

$24.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2114

GEAR-SPUR
(Superseded to 59051-2371)

$7.49

$

In Stock, only 1 left!

0

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 12

0

92055

Kawasaki 92055-2086

RING-O

$1.49

$

In Stock, Qty 18

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92066A

Kawasaki 92066-2235

PLUG

$3.49

$

Usually ships in 2-5 days

0

92143

Kawasaki 92143-2187

COLLAR,8.2X10X10

$0.99

$

In Stock, only 3 left!

0

92145

Kawasaki 92145-2132

SPRING

$0.99

$

In Stock, only 1 left!

0

130B

Kawasaki 130AA0820

BOLT-FLANGED,8X20
(Superseded to 130B0820)

$0.99

$

In Stock, only 2 left!

0

130D

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 15

0

130F

Kawasaki 130B0614

BOLT-FLANGED,6X14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

214

Kawasaki 214AA0512

SCREW-PAN+-,5X12
(Superseded to 211B0512A)

$0.99

$

In Stock, only 1 left!

0

600

Kawasaki 600A1300

BALL-STEEL,13/32"

$0.99

$

In Stock, only 3 left!

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
