FD620D-CS17 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

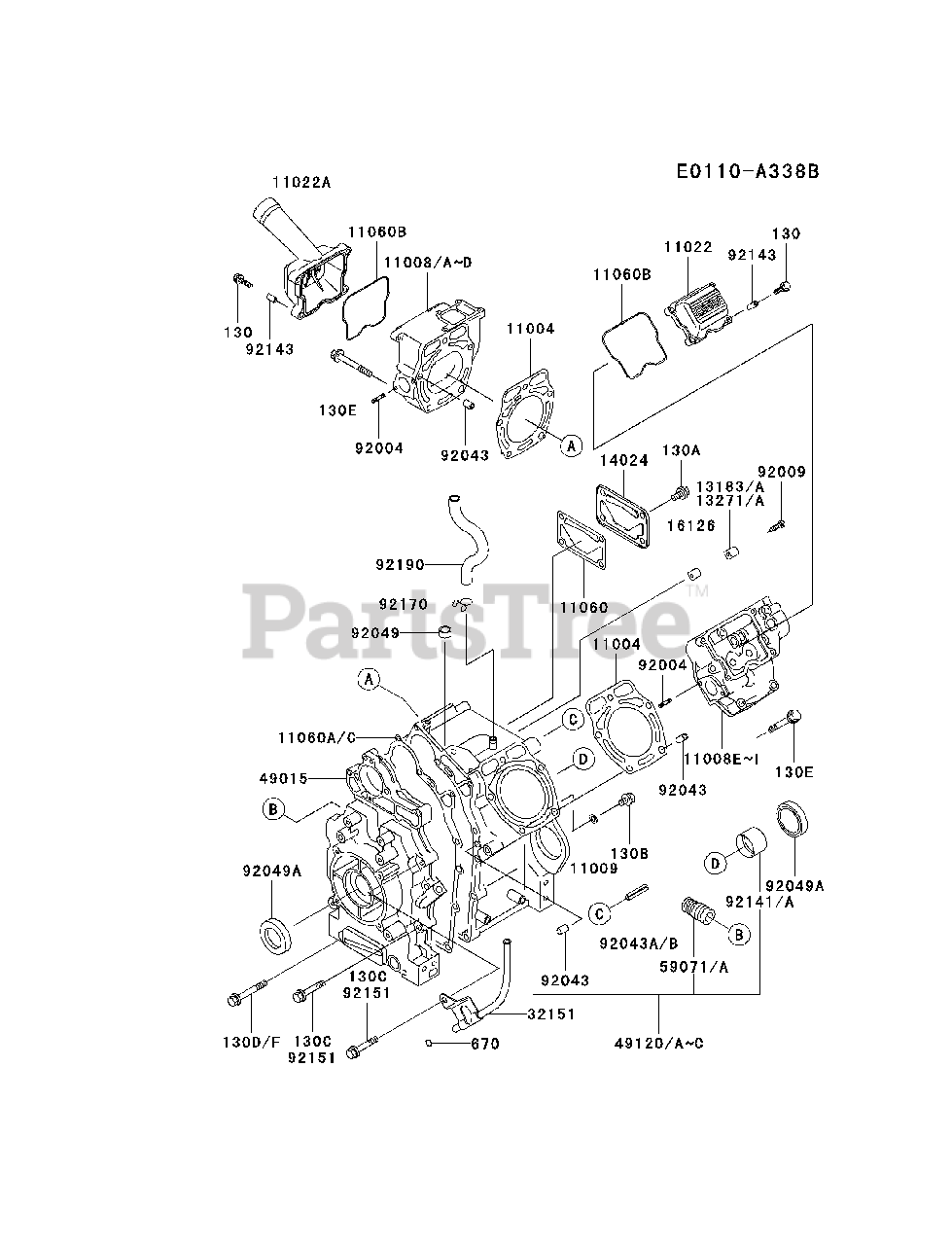

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2107

GASKET-HEAD

$19.99

$

In Stock, Qty 10

0

11008B

Kawasaki 11008-2135

HEAD-COMP-CYLINDER
(Superseded to 11008-2087)

$

$

Not available

11008H

Kawasaki 11008-6036

HEAD-COMP-CYLINDER
(Superseded to 11008-6015)

$

$

Not available

11009

Kawasaki 11009-3028

GASKET,8.2X12X1

$0.99

$

In Stock, Qty 10

0

11022

Kawasaki 11022-2056

CASE-ROCKER

$16.99

$

In Stock, Qty 7

0

11022A

Kawasaki 11022-2063

CASE-ROCKER

$33.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2089

GASKET,BREATHER,COVER
(Superseded to 11009-2934)

$4.49

$

In Stock, Qty 6

0

11060B

Kawasaki 11060-2332

GASKET,ROCKER CASE
(Superseded to 11061-2182)

$7.99

$

In Stock, Qty 20+

0

11060C

Kawasaki 11060-2449

GASKET,CRANKCASE COVER
(Superseded to 11060-2284)

$22.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2054

PLATE

$2.49

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2292

COVER

$5.49

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2146

VALVE

$0.99

$

In Stock, Qty 8

0

32151

Kawasaki 32151-2032-9H

PIPE,OIL GAUGE
(Superseded to 32151-2010-9H)

$32.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6130

COVER-CRANKCASE

$453.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-2291

CRANKCASE-COMP
(Superseded to 49120-6115)

$1059.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

92004

Kawasaki 92004-2142

STUD

$1.49

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-2227

PIN

$0.99

$

In Stock, Qty 7

0
