FD620D-BS03 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

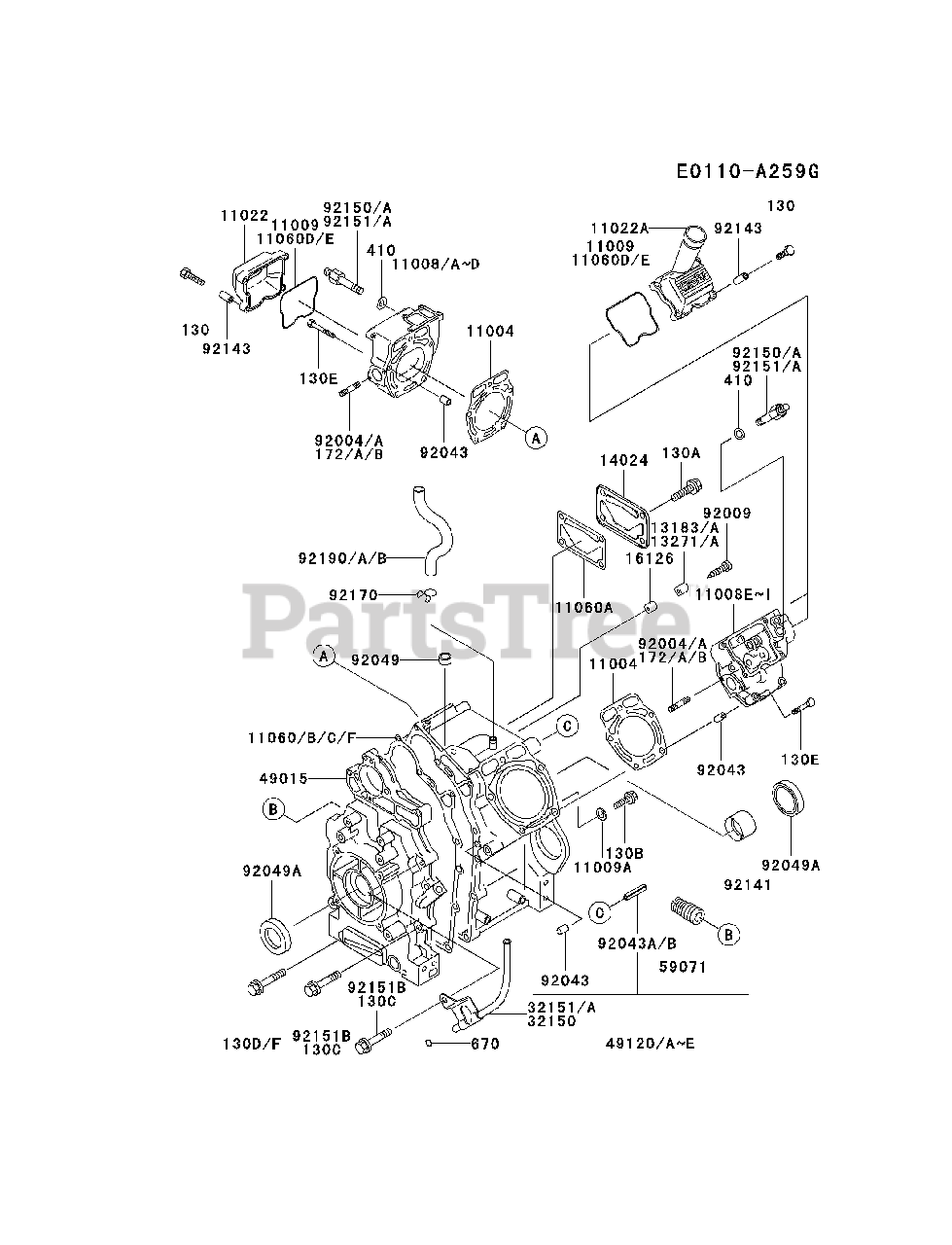

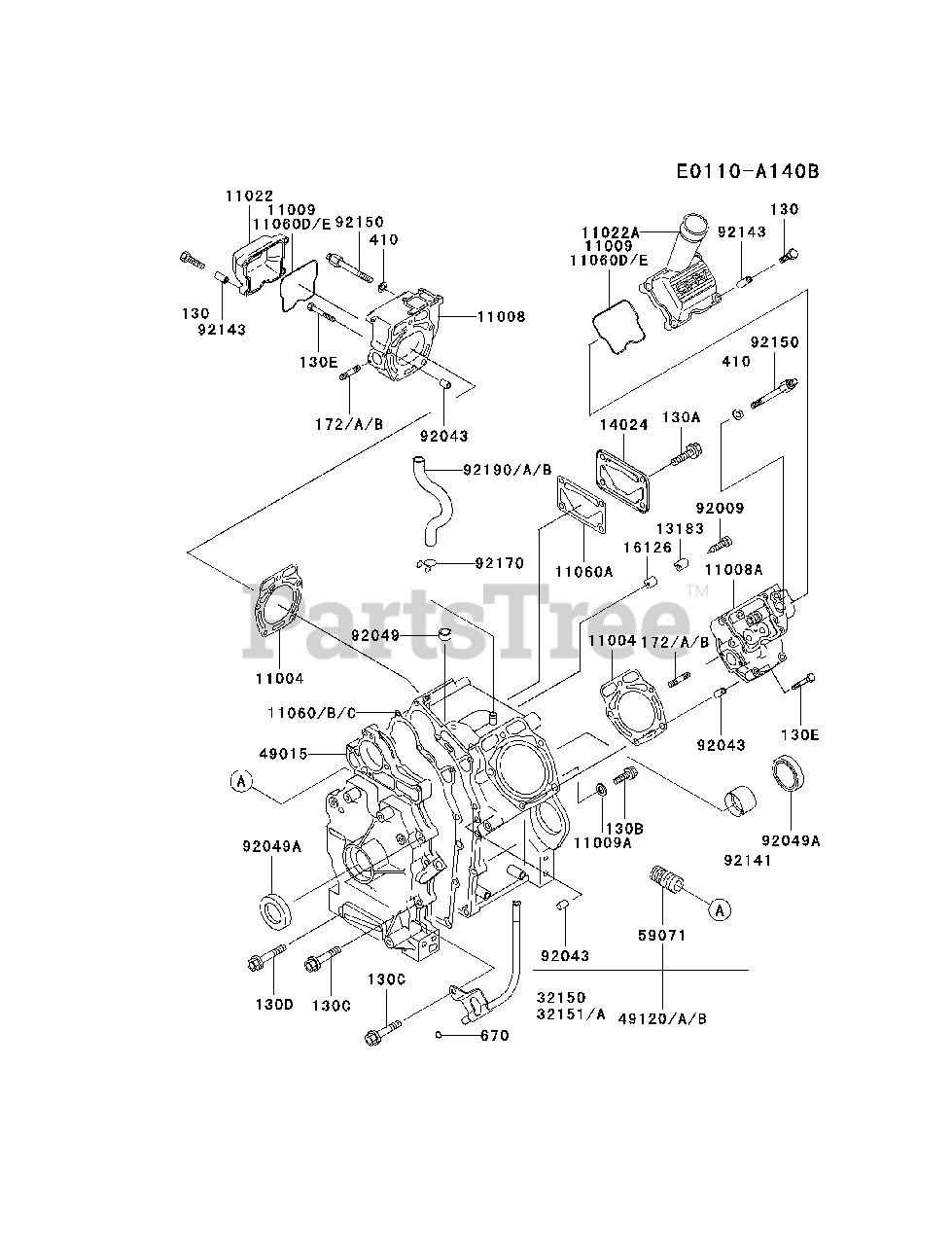

CYLINDER/CRANKCASE Parts Diagram

  • Title

49015

Kawasaki 49015-6130

COVER-CRANKCASE

$453.99

$

Usually ships in 2-5 days

0

49120C

Kawasaki 49120-6075

CRANKCASE-COMP
(Superseded to 49120-2287)

$

$

Not available

59071

Kawasaki 59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

92004A

Kawasaki 92004-2142

STUD

$1.49

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2097

SEAL-OIL

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-2110

SEAL-OIL
(Superseded to 92049-2112)

$6.99

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-2110

BEARING-PLANE
(Superseded to 92141-2122)

$8.49

$

In Stock, Qty 11

0

92143

Kawasaki 92143-2010

COLLAR

$0.99

$

In Stock, Qty 9

0

92150

Kawasaki 92150-2254

BOLT
(Superseded to 92151-2070)

$14.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2002

CLAMP

$0.99

$

In Stock, only 3 left!

0

92190A

Kawasaki 92190-2147

TUBE

$7.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130C0812

BOLT-FLANGED
(Superseded to 130AB0812)

$0.99

$

Usually ships in 2-5 days

0

130C

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

130D

Kawasaki 130G0860

BOLT-FLANGED
(Superseded to 130BA0860)

$1.99

$

In Stock, Qty 9

0

130E

Kawasaki 130G0865

BOLT-FLANGED

$

$

Not available

172A

Kawasaki 172G0620

BOLT-STUD
(Superseded to 172BA0620)

$1.49

$

Usually ships in 2-5 days

0

410

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 8

0
