FD620D-AS15 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

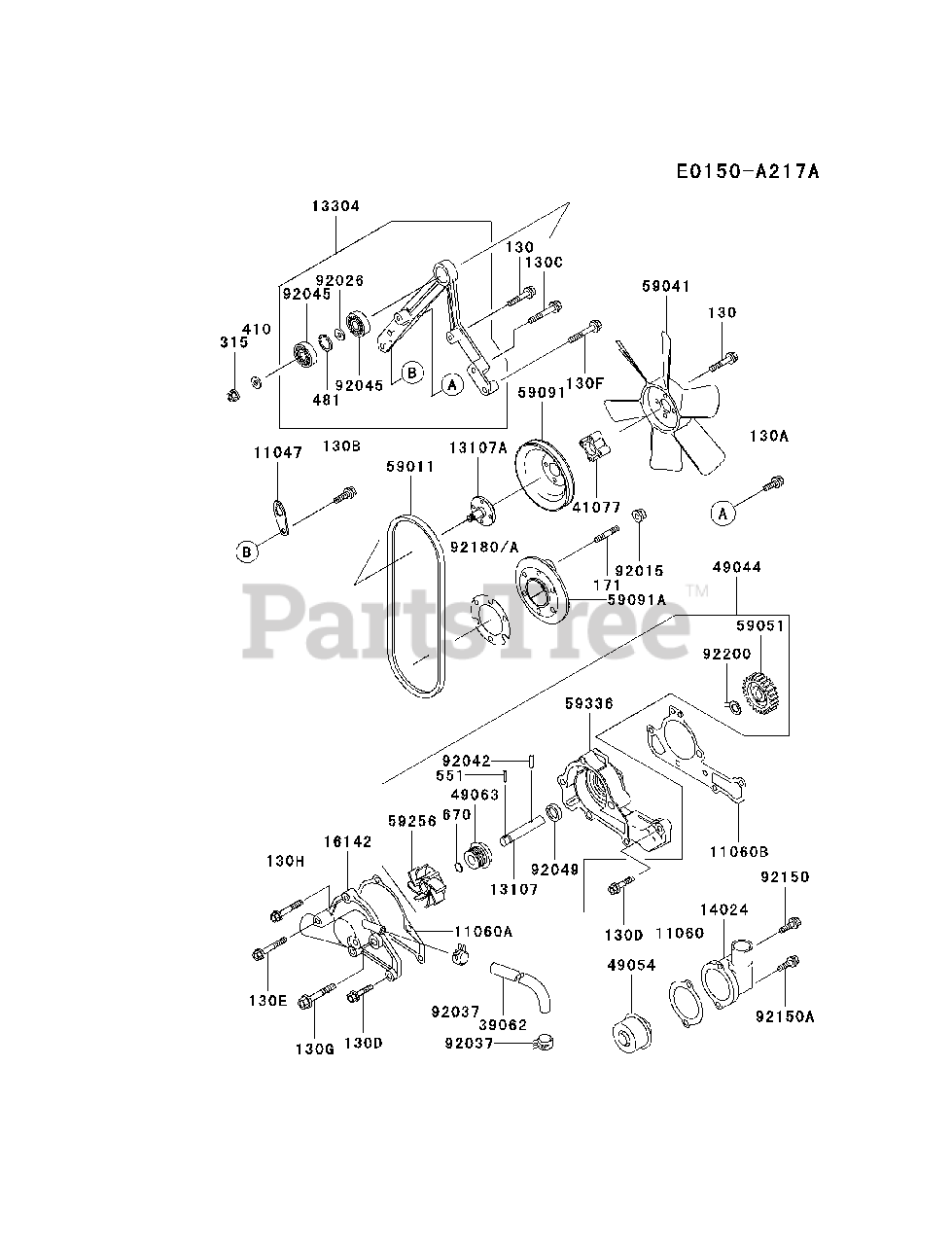

COOLING-EQUIPMENT Parts Diagram

  • Title

11047

Kawasaki 11047-2056-9H

BRACKET

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2084

GASKET,THERMOSTAT COVER
(Superseded to 11009-2768)

$3.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2288

GASKET,PUMP COVER
(Superseded to 11060-2451)

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2289

GASKET,PUMP CASE
(Superseded to 11060-2450)

$8.49

$

In Stock, Qty 20+

0

13107

Kawasaki 13107-2097

SHAFT,IMPELLER

$9.49

$

In Stock, only 3 left!

0

13107A

Kawasaki 13107-2246

SHAFT,PULLEY

$58.99

$

Usually ships in 2-5 days

0

13304

Kawasaki 13304-6007

HOUSING-ASSY
(Superseded to 13304-6005)

$101.99

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2293

COVER,THERMOSTAT
(Superseded to 14093-0061)

$17.99

$

In Stock, only 1 left!

0

16142

Kawasaki 16142-2069

COVER-PUMP
(Superseded to 16142-0729)

$22.99

$

In Stock, only 4 left!

0

39062

Kawasaki 39062-2051

HOSE-COOLING,7.5X13.5X305

$5.99

$

In Stock, only 4 left!

0

41077

Kawasaki 41077-2064

ADAPTER

$13.99

$

Usually ships in 2-5 days

0

49044

Kawasaki 49044-2058

PUMP-WATER
(Superseded to 49044-2066)

$79.99

$

In Stock, Qty 9

0

49054

Kawasaki 49054-2056

THERMOSTAT
(Superseded to 49054-2052)

$31.99

$

In Stock, Qty 20+

0

49063

Kawasaki 49063-2056

SEAL-MECHANICAL
(Superseded to 49063-1056)

$

$

Not available

59011

Kawasaki 59011-2056

BELT,FAN

$26.99

$

In Stock, Qty 9

0

59041

Kawasaki 59041-2063

FAN,COOLING

$44.99

$

In Stock, only 1 left!

0

59051

Kawasaki 59051-2113

GEAR-SPUR

$5.99

$

In Stock, only 1 left!

0

59091

Kawasaki 59091-2052-9H

PULLEY

$35.99

$

Usually ships in 2-5 days

0

59091A

Kawasaki 59091-2053

PULLEY
(Superseded to 59091-2053-9H)

$69.99

$

Usually ships in 2-5 days

0

59256

Kawasaki 59256-2057

IMPELLER
(Superseded to 59256-2051)

$4.99

$

Usually ships in 2-5 days

0

59336

Kawasaki 59336-2052

CASE-PUMP

$35.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1143

NUT

$0.99

$

In Stock, Qty 10

0

92026

Kawasaki 92026-2311

SPACER,12X18X1.4

$0.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-2065

CLAMP
(Superseded to 92037-1181)

$3.99

$

Usually ships in 2-5 days

0

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 12

0

92045

Kawasaki 92045-2191

BEARING-BALL,6001DDUC3

$16.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2111

SEAL-OIL

$4.49

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2230

BOLT,6X40

$1.99

$

Usually ships in 2-5 days

0

92150A

Kawasaki 92150-2231

BOLT,6X20

$2.49

$

Usually ships in 2-5 days

0

92180

Kawasaki 92180-2013

SHIM,T=0.6

$1.99

$

In Stock, Qty 6

0

92180A

Kawasaki 92180-2014

SHIM,T=1.2

$2.49

$

In Stock, Qty 11

0

92200

Kawasaki 92200-2044

WASHER

$3.49

$

In Stock, only 1 left!

0

130

Kawasaki 130B0635

BOLT-FLANGED
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 12

0

130A

Kawasaki 130B0820

BOLT-FLANGED
(Superseded to 130AA0820)

$0.99

$

In Stock, only 2 left!

0

130B

Kawasaki 130B0830

BOLT-FLANGED
(Superseded to 130AA0830)

$0.99

$

In Stock, only 1 left!

0

130C

Kawasaki 130B0840

BOLT-FLANGED
(Superseded to 130BA0840)

$2.49

$

In Stock, Qty 7

0

130D

Kawasaki 130G0645

BOLT-FLANGED
(Superseded to 130BA0645)

$1.49

$

In Stock, Qty 8

0

130E

Kawasaki 130G0675

BOLT-FLANGED
(Superseded to 130CA0675)

$2.99

$

In Stock, only 2 left!

0

130F

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

130G

Kawasaki 130G0870

BOLT-FLANGED
(Superseded to 130BA0870)

$

$

Not available
