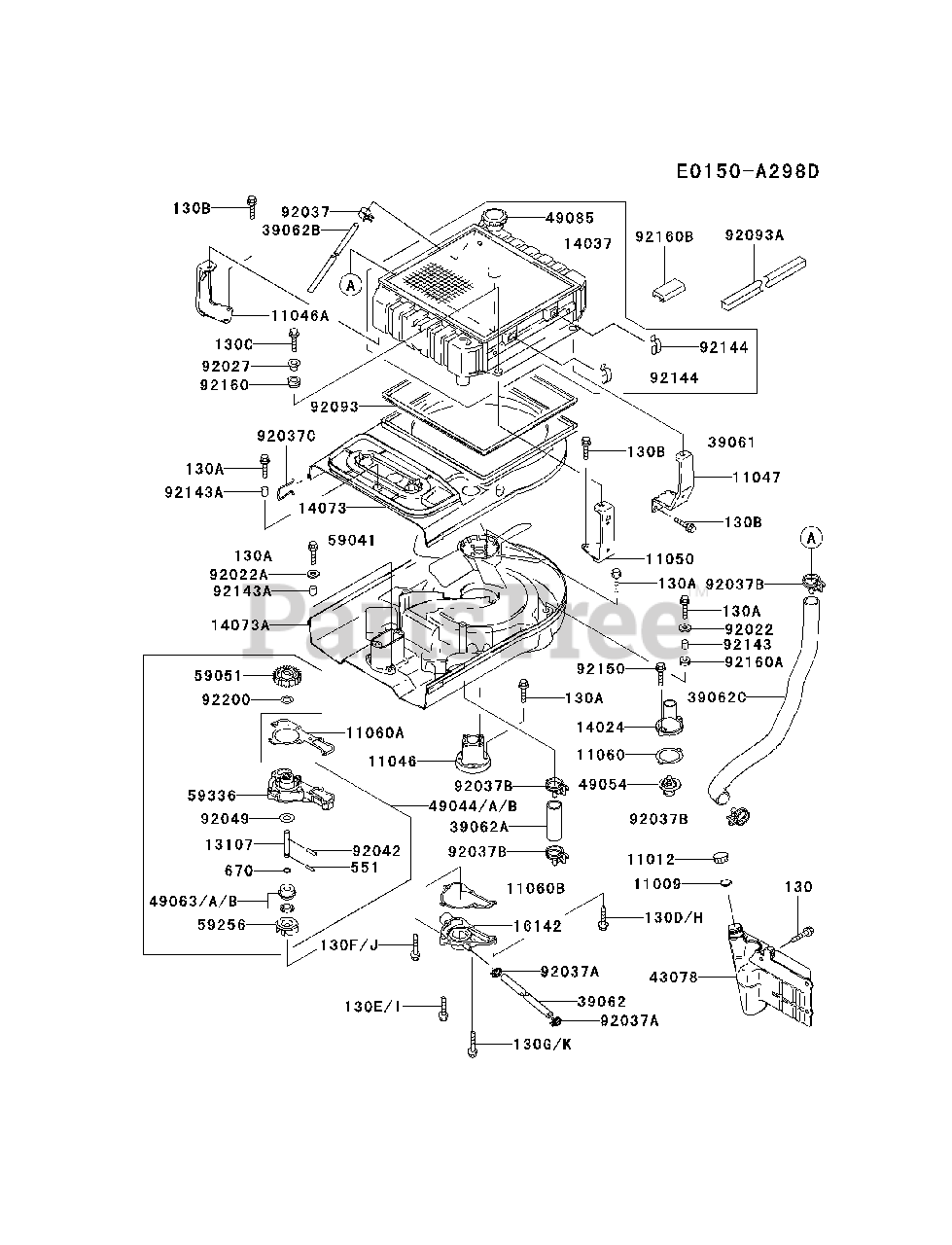

FD611V-DS00 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 12

0

92049

Kawasaki 92049-2111

SEAL-OIL

$4.49

$

In Stock, only 2 left!

0

92093

Kawasaki 92093-2085

SEAL

$10.99

$

Usually ships in 2-5 days

0

92093A

Kawasaki 92093-2111

SEAL

$3.99

$

Usually ships in 2-5 days

0

92143

Kawasaki 92143-2013

COLLAR

$

$

Not available

92143A

Kawasaki 92143-2014

COLLAR

$0.99

$

In Stock, Qty 6

0

92144

Kawasaki 92144-2346

SPRING

$5.99

$

In Stock, only 2 left!

0

92150

Kawasaki 92150-2231

BOLT,6X20

$2.49

$

Usually ships in 2-5 days

0

92160

Kawasaki 92160-2001

DAMPER

$0.99

$

In Stock, Qty 5

0

92160A

Kawasaki 92160-2002

DAMPER

$0.99

$

In Stock, only 1 left!

0

92160B

Kawasaki 92160-2039

DAMPER

$

$

Not available

92200

Kawasaki 92200-2044

WASHER

$3.49

$

In Stock, only 1 left!

0

130

Kawasaki 130B0614

BOLT-FLANGED,6X14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

130A

Kawasaki 130B0620

BOLT-FLANGED,6X20
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0816

BOLT-FLANGED,8X16
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0825

BOLT-FLANGED,8X25
(Superseded to 130CA0825)

$3.99

$

Usually ships in 2-5 days

0

130D

Kawasaki 130CA0645

BOLT-FLANGED,6X45
(Superseded to 130P0645)

$

$

Not available

130E

Kawasaki 130CA0665

BOLT-FLANGED,6X65
(Superseded to 130T0665)

$1.99

$

Usually ships in 2-5 days

0

130F

Kawasaki 130CA0675

BOLT-FLANGED,6X75
(Superseded to 130G0675)

$2.99

$

In Stock, only 2 left!

0

130G

Kawasaki 130CA0870

BOLT-FLANGED,8X70
(Superseded to 130G0870)

$

$

Not available

551

Kawasaki 551A0314

PIN-DOWEL,3X14

$0.99

$

In Stock, Qty 9

0

670

Kawasaki 670B1507

O RING,7MM
(Superseded to 92055-1072)

$1.49

$

In Stock, only 4 left!

0
