FD611V-AS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

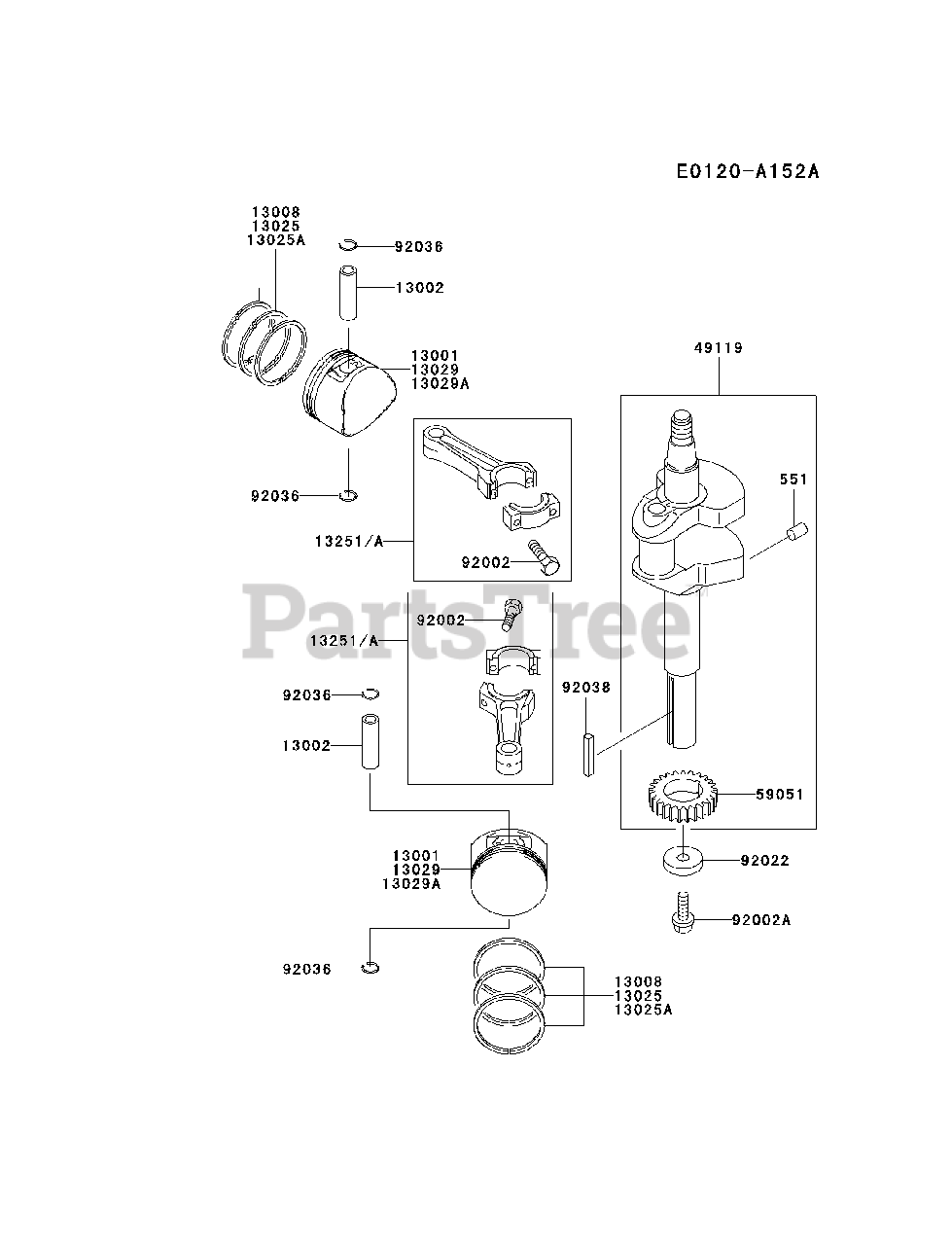

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2123

PISTON-ENGINE
(Superseded to 13001-2105)

$

$

Not available

13002

Kawasaki 13002-1013

PIN-PISTON

$7.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6016

RING-SET-PISTON

$37.99

$

In Stock, only 2 left!

0

13025

Kawasaki 13025-6001

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13025-6002

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2090

PISTON-ENGINE L,0.25

$

$

Not available

13029A

Kawasaki 13029-2091

PISTON-ENGINE L,0.50

$58.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-6022

ROD-ASSY-CONNECTING
(Superseded to 13251-0034)

$

$

Not available

13251A

Kawasaki 13251-6026

ROD-ASSY-CONNECTING,U/S=0.50
(Superseded to 13251-6069)

$81.99

$

Usually ships in 2-5 days

0

49119

Kawasaki 49119-2130

CRANKSHAFT-ASSY
(Superseded to 49119-0005)

$430.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2112

GEAR-SPUR

$40.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2053

BOLT
(Superseded to 315601-3245A)

$6.99

$

In Stock, Qty 12

0

92002A

Kawasaki 92002-2263

BOLT,10X28

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2194

WASHER

$4.49

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036-021

RING-SNAP

$0.99

$

In Stock, only 4 left!

0

92038

Kawasaki 92038-2101

KEY

$4.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0408

PIN-DOWEL

$0.99

$

Usually ships in 2-5 days

0
