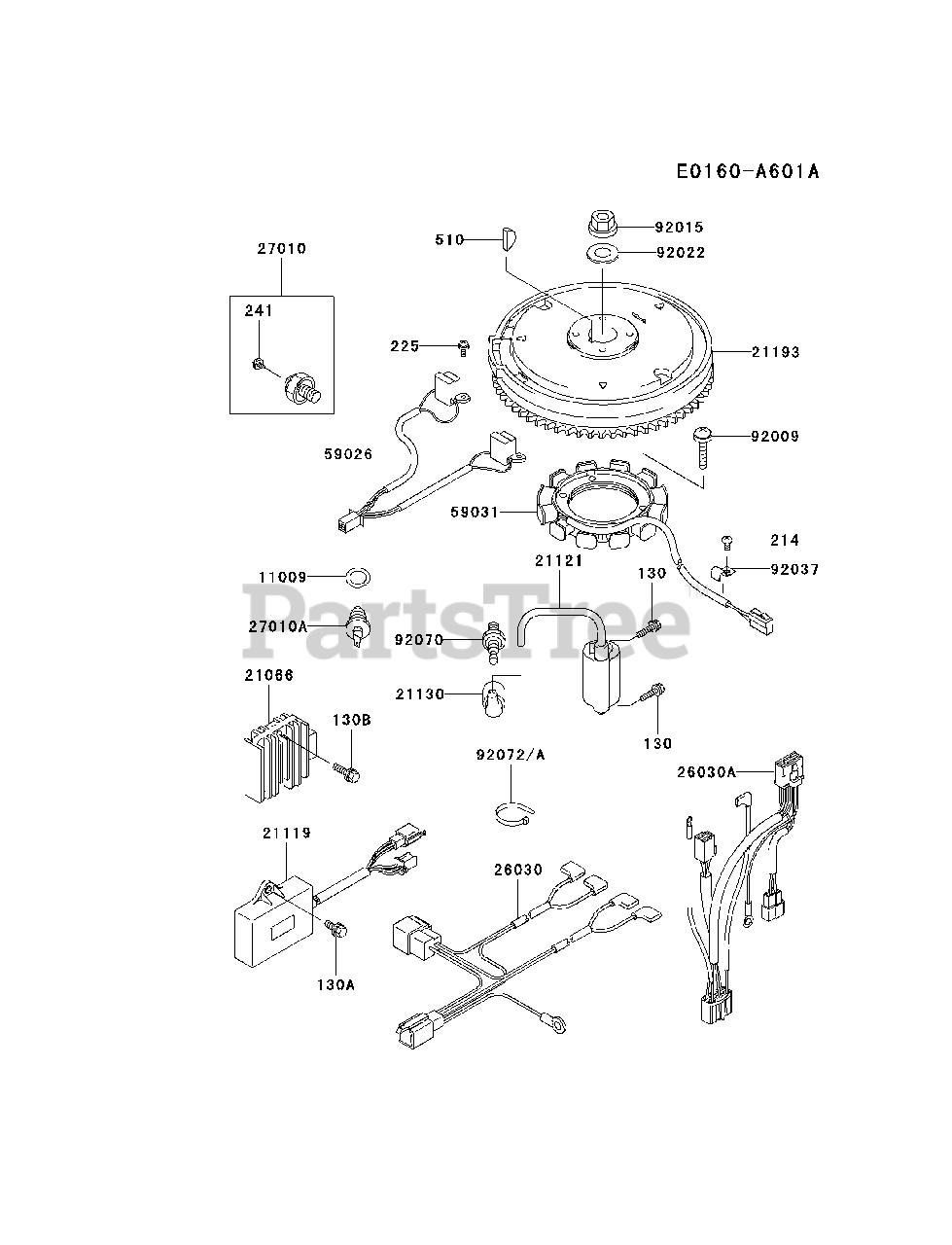

FD611V-AS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21119

Kawasaki 21119-2157

IGNITER
(Superseded to 21119-2116)

$317.99

$

In Stock, only 1 left!

0

21121

Kawasaki 21121-2083

COIL-IGNITION
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 8

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-2148

FLYWHEEL-ASSY
(Superseded to 21193-2078)

$398.99

$

Usually ships in 2-5 days

0

26030

$31.99

$

Usually ships in 2-5 days

0

26030A

$70.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-2170

SWITCH
(Superseded to 27010-2234)

$19.99

$

In Stock, Qty 8

0

27010A

$38.99

$

In Stock, Qty 5

0

59026

Kawasaki 59026-2054

COIL-PULSING

$

$

Not available

59031

Kawasaki 59031-2122

COIL-CHARGING

$

$

Not available

92009

$1.49

$

Usually ships in 2-5 days

0

$7.49

$

Usually ships in 2-5 days

0

92022

$1.49

$

Usually ships in 2-5 days

0

92037

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2060

PLUG-SPARK,BMR6A,SOLID
(Superseded to BMR6A)

Note: NGK

$3.49

$

In Stock, Qty 5

0

92072

$1.99

$

Usually ships in 2-5 days

0

92072A

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130B0614

BOLT-FLANGED
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130G0620

BOLT-FLANGED
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

225

Kawasaki 225B0414

SCREW-PAN-WSP-CROS
(Superseded to 225AA0414)

$0.99

$

In Stock, Qty 6

0

241

Kawasaki 241B0406

SCREW-PAN-WP+-
(Superseded to 223AA0406)

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
