FD590V-CS06 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

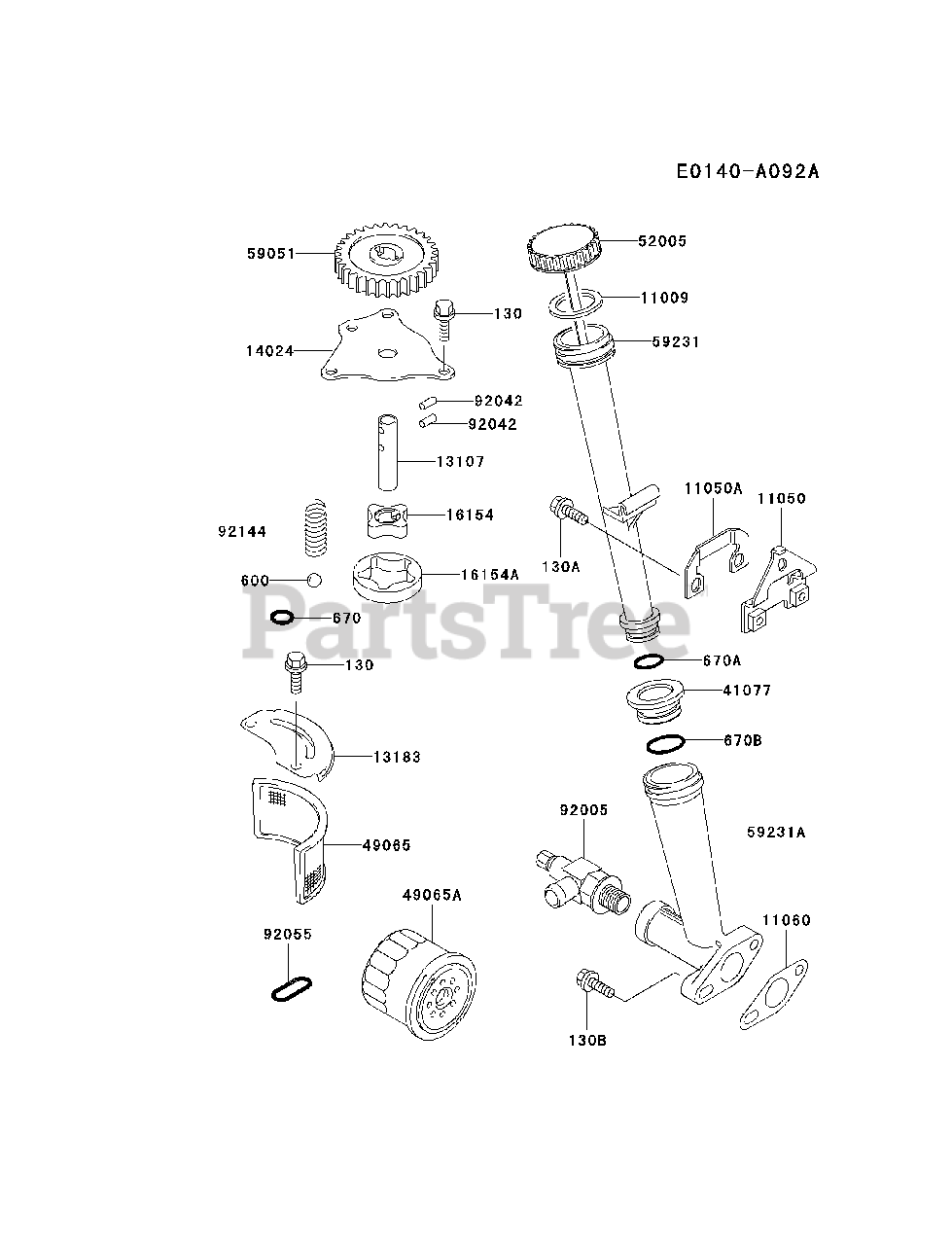

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2346

GASKET,OIL GAUGE
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

11050

$

$

Not available

11050A

$

$

Not available

11060

Kawasaki 11060-2083

GASKET,FILLER
(Superseded to 11009-2761)

$1.49

$

In Stock, Qty 13

0

13107

Kawasaki 13107-2099

SHAFT,OIL PUMP
(Superseded to 13107-2296)

$12.99

$

In Stock, only 1 left!

0

13183

$

$

Not available

14024

Kawasaki 14024-2113

COVER,OIL PUMP

$4.99

$

In Stock, only 1 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 2 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

41077

$

$

Not available

49065

Kawasaki 49065-2058

FILTER-OIL

$8.49

$

Usually ships in 2-5 days

0

49065A

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 20+

0

52005

$

$

Not available

59051

Kawasaki 59051-2114

GEAR-SPUR
(Superseded to 59051-2371)

$7.49

$

In Stock, only 1 left!

0

59231

$

$

Not available

59231A

$

$

Not available

92005

Kawasaki 92005-2059

FITTING
(Superseded to 99969-1395)

$20.99

$

In Stock, only 1 left!

0

92042

$0.99

$

In Stock, Qty 11

0

92055

$1.49

$

In Stock, Qty 12

0

92144

Kawasaki 92144-2053

SPRING
(Superseded to 92145-2132)

$0.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0614

BOLT-FLANGED
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

600

Kawasaki 600A1300

BALL-STEEL

$0.99

$

In Stock, Qty 14

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0

670A

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0

670B

Kawasaki 670D2022

O RING
(Superseded to 670E2022)

$7.99

$

In Stock, only 1 left!

0
