FD501D-GS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

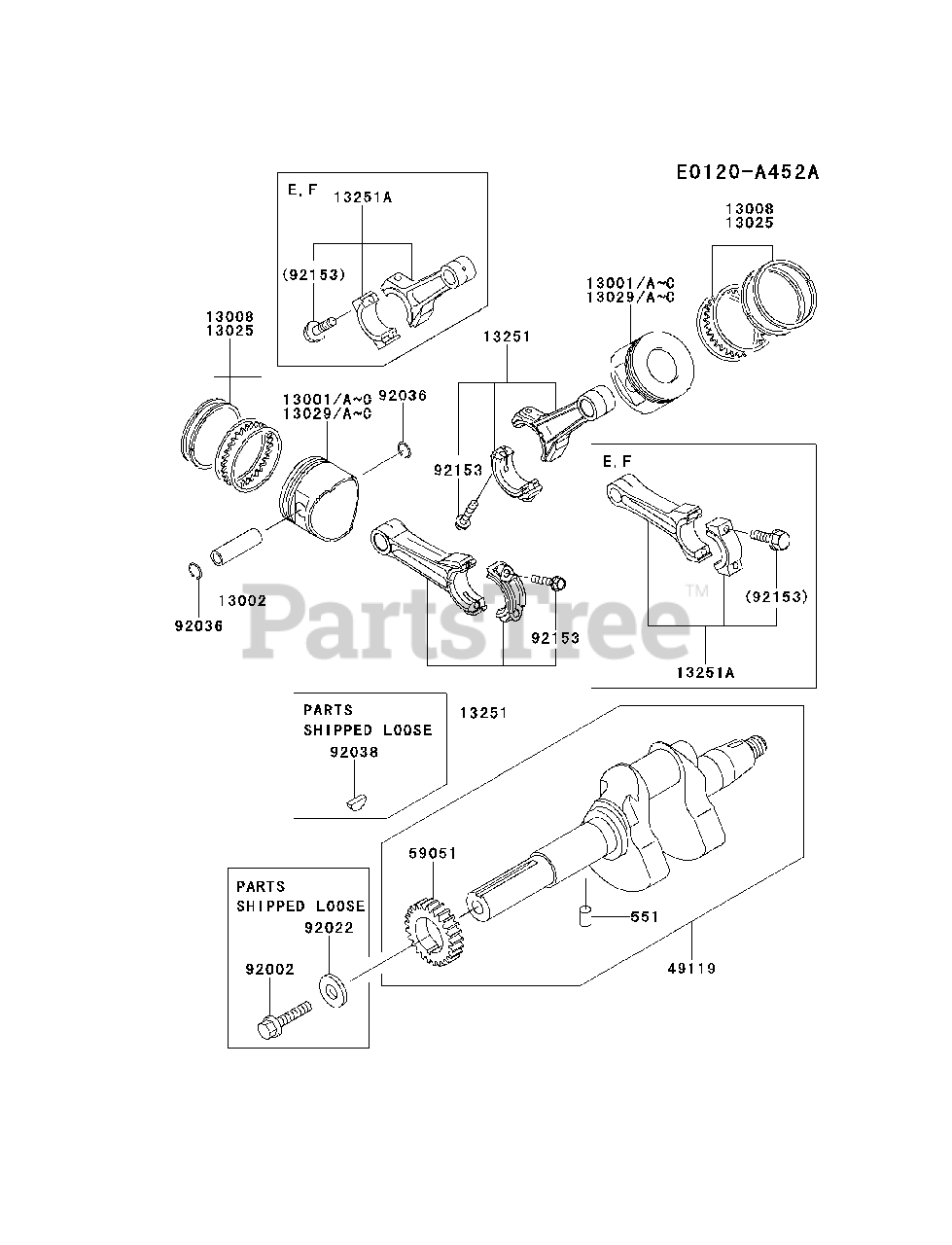

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001B

Kawasaki 13001-2187

PISTON-ENGINE
(Superseded to 13001-2203)

$71.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-1004

PIN-PISTON

$9.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-2060

RING-SET-PISTON

$38.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 13025-2100

RING-SET-PISTON L,0.5

$43.99

$

Usually ships in 2-5 days

0

13029B

Kawasaki 13029-2132

PISTON-ENGINE L,0.50
(Superseded to 13029-0037)

$78.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-0712

ROD-ASSY-CONNECTING
(Superseded to 13251-6063)

$80.99

$

In Stock, only 2 left!

0

49119

Kawasaki 49119-2214

CRANKSHAFT-ASSY

$

$

Not available

59051

Kawasaki 59051-2369

GEAR-SPUR

$62.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2263

BOLT,10X28

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2194

WASHER

$4.49

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036-004

RING-SNAP

$0.99

$

In Stock, Qty 6

0

92038

Kawasaki 92038-2101

KEY

$4.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-2097

BOLT,6X30

$3.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0408

PIN-DOWEL,4X8

$0.99

$

Usually ships in 2-5 days

0
