FD501D-FS00 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

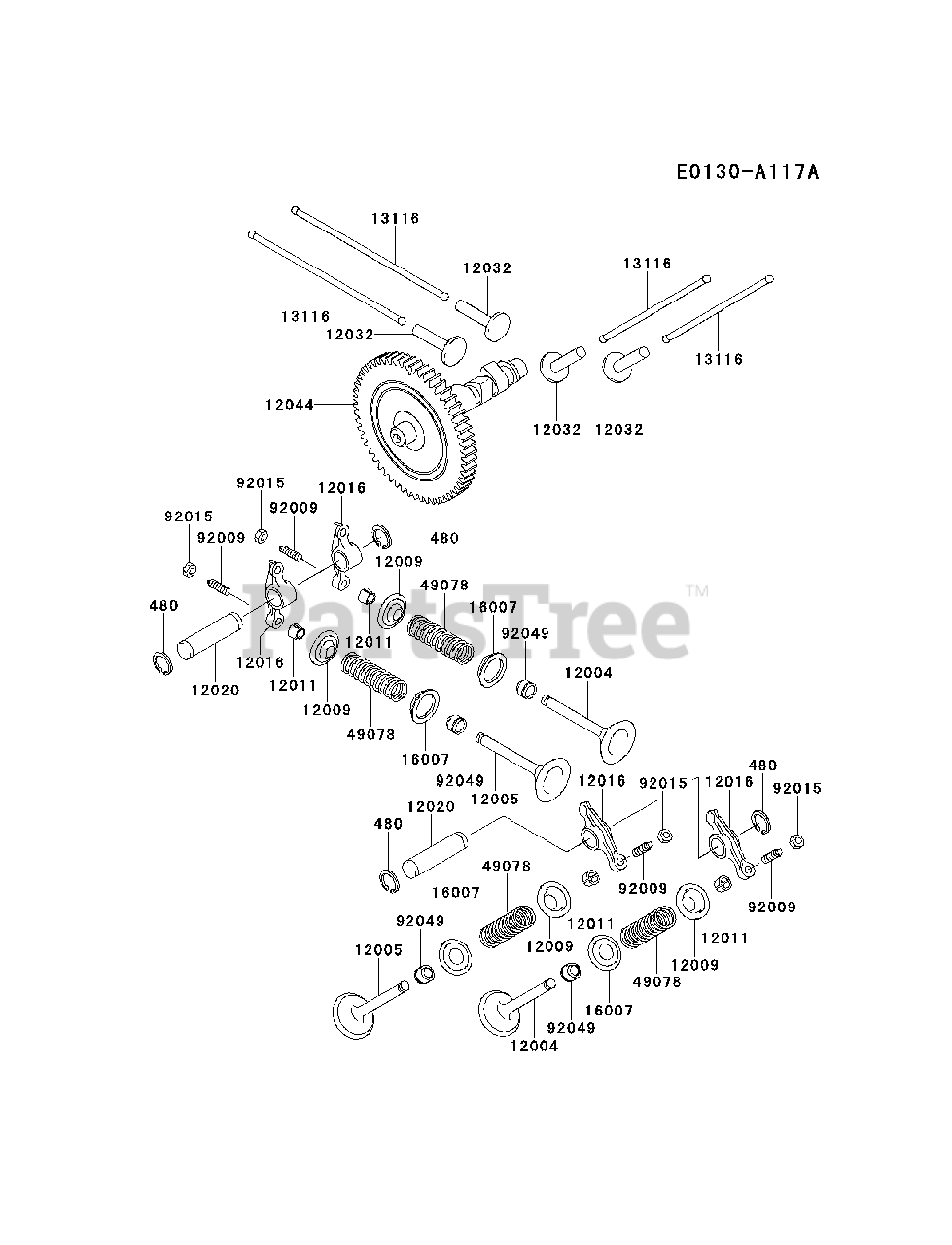

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-2112

VALVE-INTAKE
(Superseded to 12004-0721)

$22.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 12005-2099

VALVE-EXHAUST

$33.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2071

RETAINER-VALVE SPRING

$3.49

$

Usually ships in 2-5 days

0

12011

Kawasaki 12011-1051

COLLET

$2.49

$

Usually ships in 2-5 days

0

12016

Kawasaki 12016-2056

ARM-ROCKER

$19.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 12020-2061

SHAFT-ROCKER

$5.49

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-2066

TAPPET

$9.99

$

Usually ships in 2-5 days

0

12044

Kawasaki 12044-2248

CAMSHAFT-VALVE

$247.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-2070

ROD-PUSH
(Superseded to 13116-2069)

$4.99

$

In Stock, Qty 7

0

16007

Kawasaki 16007-2071

SEAT-SPRING

$0.99

$

In Stock, only 1 left!

0

49078

Kawasaki 49078-2088

SPRING-ENGINE VALVE
(Superseded to 49078-2084)

$4.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-1109

SCREW

$2.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1137

NUT
(Superseded to 92210-1491)

$1.49

$

In Stock, only 2 left!

0

92049

Kawasaki 92049-1218

SEAL-OIL

$4.49

$

In Stock, Qty 15

0

480

Kawasaki 480J1200

CIRCLIP,12MM

$0.99

$

In Stock, Qty 10

0
