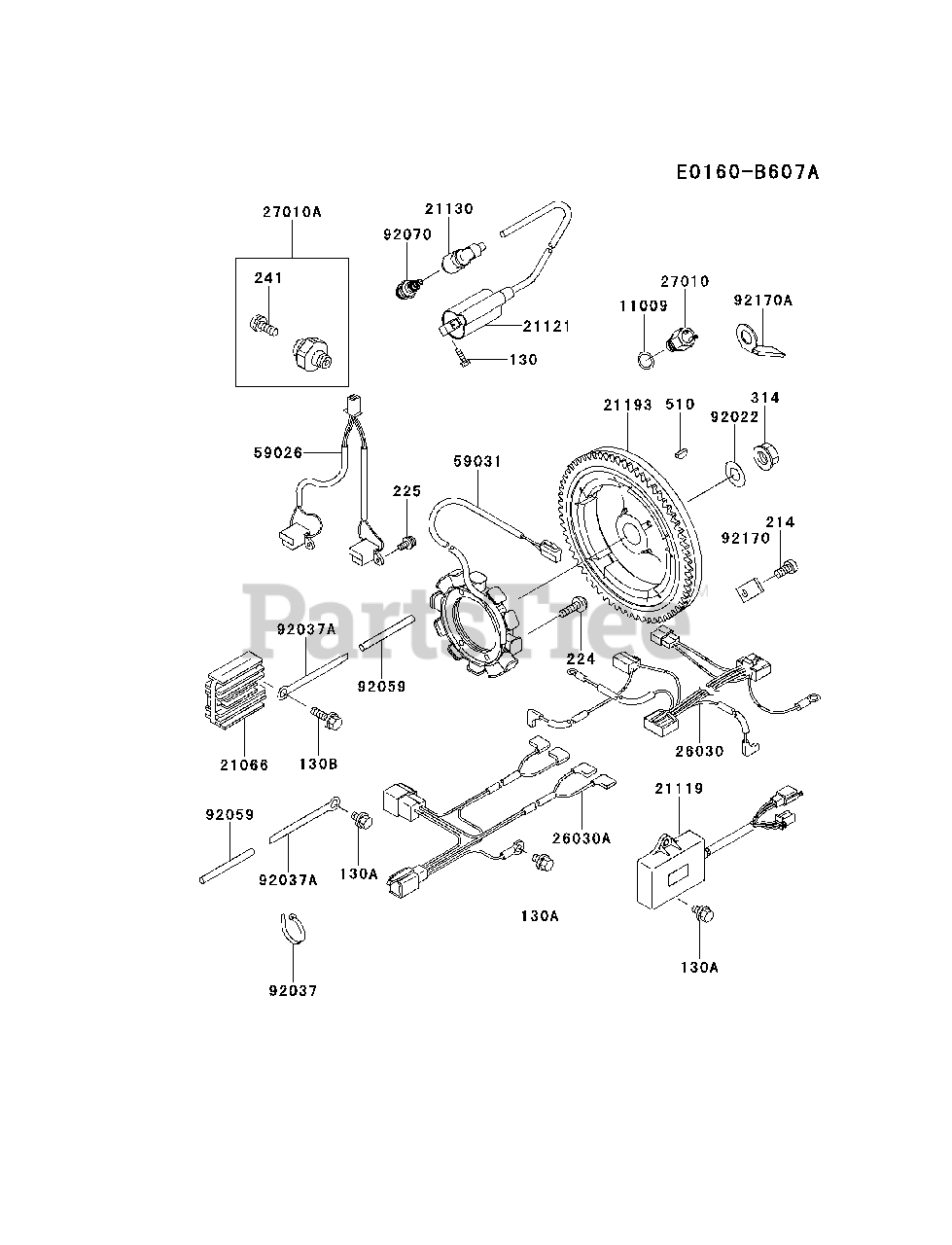

FD501D-ES00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2766

GASKET,16X21X2
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21119

Kawasaki 21119-2156

IGNITER
(Superseded to 21119-2148)

$279.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 21121-2083

COIL-IGNITION
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 8

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-2147

FLYWHEEL-ASSY
(Superseded to 21193-2110)

$

$

Not available

26030

$42.99

$

Usually ships in 2-5 days

0

26030A

Kawasaki 26030-2252

HARNESS
(Superseded to 26030-2240)

$35.99

$

Usually ships in 2-5 days

0

27010

$41.99

$

Usually ships in 2-5 days

0

27010A

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

In Stock, Qty 8

0

59026

Kawasaki 59026-2064

COIL-PULSING
(Superseded to 59026-2063)

$110.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2121

COIL-CHARGING

$137.99

$

Usually ships in 2-5 days

0

92022

$1.49

$

Usually ships in 2-5 days

0

92037

$3.99

$

Usually ships in 2-5 days

0

92037A

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92170

$0.99

$

Usually ships in 2-5 days

0

92170A

$3.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130AA0612

BOLT-FLANGED,6X12
(Superseded to 130B0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 13

0

224

Kawasaki 224AA0625

SCREW-PAN-WP-CROS,6X25
(Superseded to 224B0625)

$0.99

$

In Stock, Qty 9

0

225

Kawasaki 225AA0414

SCREW-PAN-WSP-CROS,4X14
(Superseded to 225B0414)

$0.99

$

In Stock, Qty 6

0

241

Kawasaki 241AA0406

SCREW-PAN-WP+-,4X6
(Superseded to 223AA0406)

$

$

Not available

314

Kawasaki 314BA1800

NUT-HEX-FINE,18MM

$2.49

$

Usually ships in 2-5 days

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
