FD501D-ES00 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

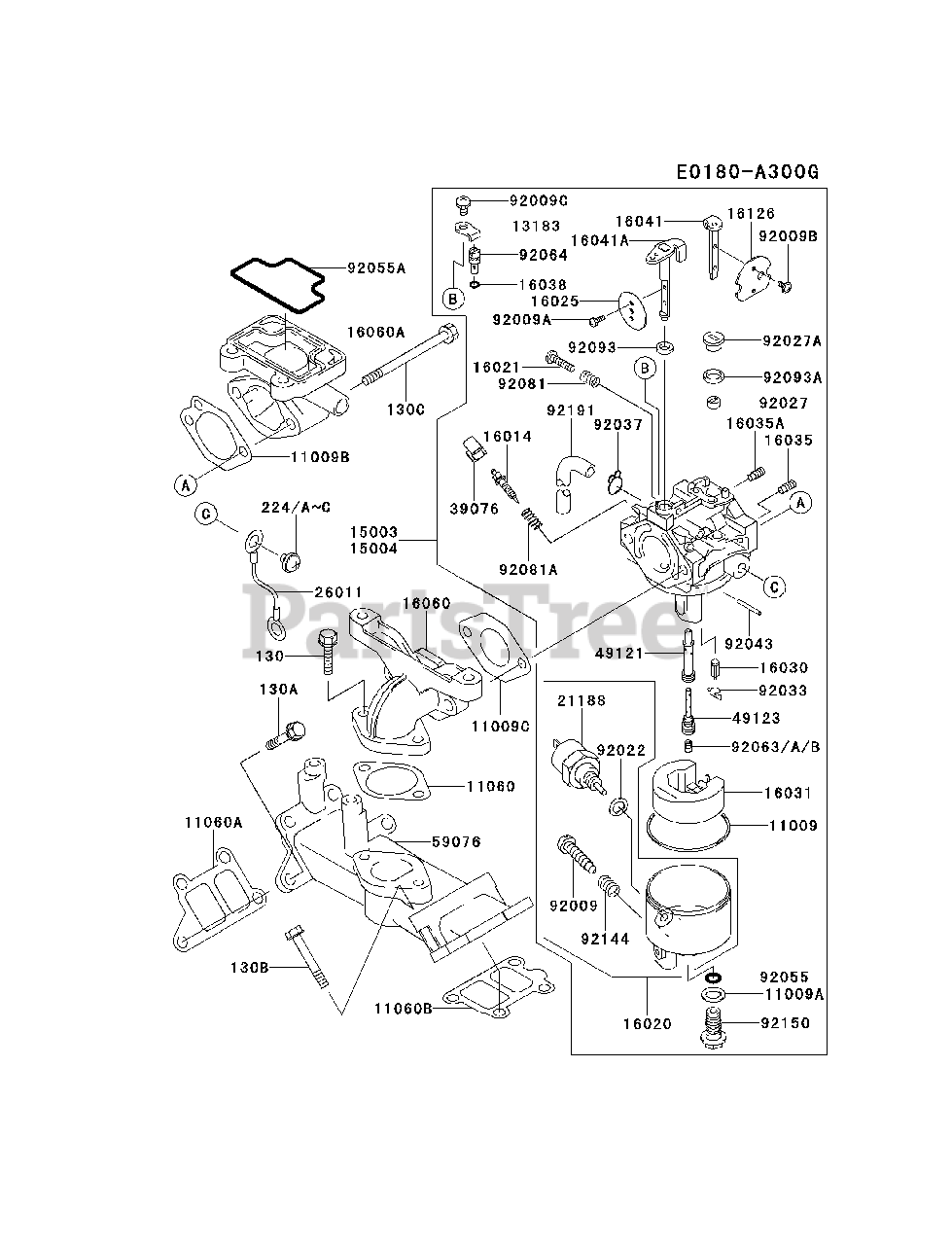

CARBURETOR Parts Diagram

  • Title

92009

Kawasaki 92009-2025

SCREW
(Superseded to 315499-6133A)

$3.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2080

SCREW
(Superseded to 92009-3710)

$

$

Not available

92009B

Kawasaki 92009-2081

SCREW
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92009C

Kawasaki 92009-2244

SCREW

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2231

WASHER

$1.99

$

In Stock, only 4 left!

0

92027

Kawasaki 92027-2003

COLLAR

$3.99

$

Usually ships in 2-5 days

0

92027A

Kawasaki 92027-2004

COLLAR

$5.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2067

RING-SNAP

$5.49

$

In Stock, only 3 left!

0

92037

Kawasaki 92037-1610

CLAMP

$2.49

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-2006

PIN

$3.49

$

In Stock, only 1 left!

0

92055

Kawasaki 92055-2148

O RING

$1.49

$

In Stock, only 1 left!

0

92055A

Kawasaki 92055-2183

RING-O

$3.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2347

JET-MAIN,#97.5

$10.99

$

In Stock, only 1 left!

0

92063A

Kawasaki 92063-2399

JET-MAIN,#95,3280FT

$12.99

$

In Stock, only 1 left!

0

92063B

Kawasaki 92063-2402

JET-MAIN,#92.5,6560FT

$12.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2124

JET-PILOT,#43.8

$12.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2009

SPRING

$3.49

$

In Stock, only 3 left!

0

92081A

Kawasaki 92081-2256

SPRING

$7.99

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-2002

SEAL

$1.99

$

In Stock, Qty 6

0

92093A

Kawasaki 92093-2101

SEAL

$2.49

$

In Stock, only 3 left!

0

92144

Kawasaki 92144-2174

SPRING

$1.99

$

In Stock, only 2 left!

0

92150

Kawasaki 92150-2121

BOLT

$20.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-2009

TUBE,6.5X9.5X350

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130B

Kawasaki 130BA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, only 3 left!

0

130C

Kawasaki 130BA0690

BOLT-FLANGED,6X90
(Superseded to 130G0690)

$2.49

$

In Stock, only 1 left!

0

224B

Kawasaki 224B0508

SCREW-PAN-WP-CROS,5X8
(Superseded to 224AA0508)

$0.99

$

In Stock, only 3 left!

0
