FD501D-ES00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

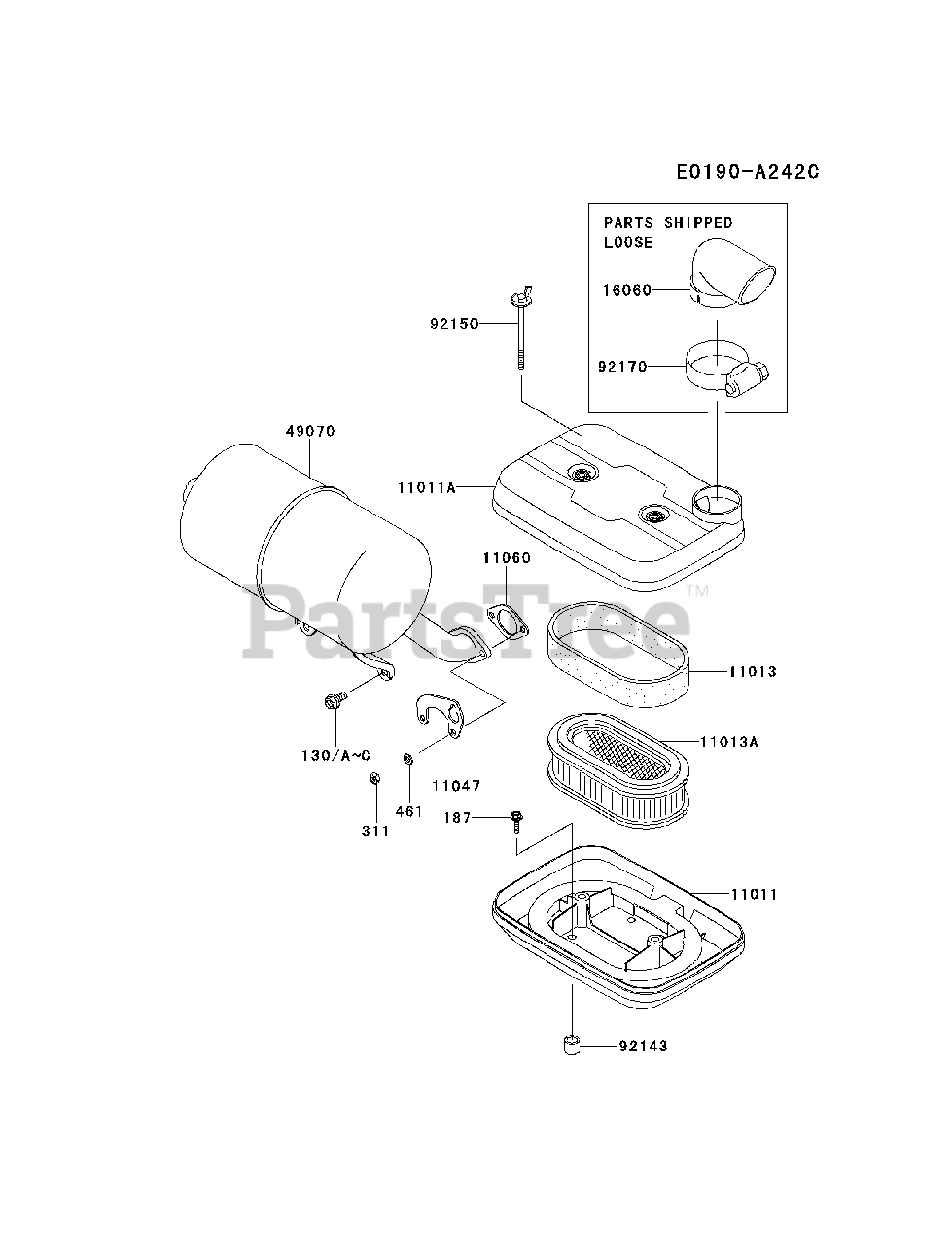

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2253

CASE-AIR FILTER

$54.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2254

CASE-AIR FILTER

$43.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2161

ELEMENT-AIR FILTER

$4.99

$

Usually ships in 2-5 days

0

11013A

Kawasaki 11013-2207

ELEMENT-AIR FILTER
(Superseded to 11013-0045)

$52.99

$

Usually ships in 2-5 days

0

11047

Kawasaki 11047-2057-9H

BRACKET

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2079

GASKET,MUFFLRT
(Superseded to 11009-2562)

$5.49

$

In Stock, only 2 left!

0

16060

Kawasaki 16060-2185

PIPE-INTAKE

$41.99

$

In Stock, only 1 left!

0

49070

Kawasaki 49070-2640-9Y

MUFFLER-COMP

$369.99

$

Usually ships in 2-5 days

0

92143

Kawasaki 92143-1336

COLLAR

$1.49

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2285

BOLT

$3.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

130B

Kawasaki 130B0816

BOLT-FLANGED,8X16
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

187

Kawasaki 187AA0520

BOLT-UPSET-WSP,5X20

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311BA0600

NUT-HEX,6MM
(Superseded to 310G0600)

$

$

Not available

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 10

0
