FD501D-AS02 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

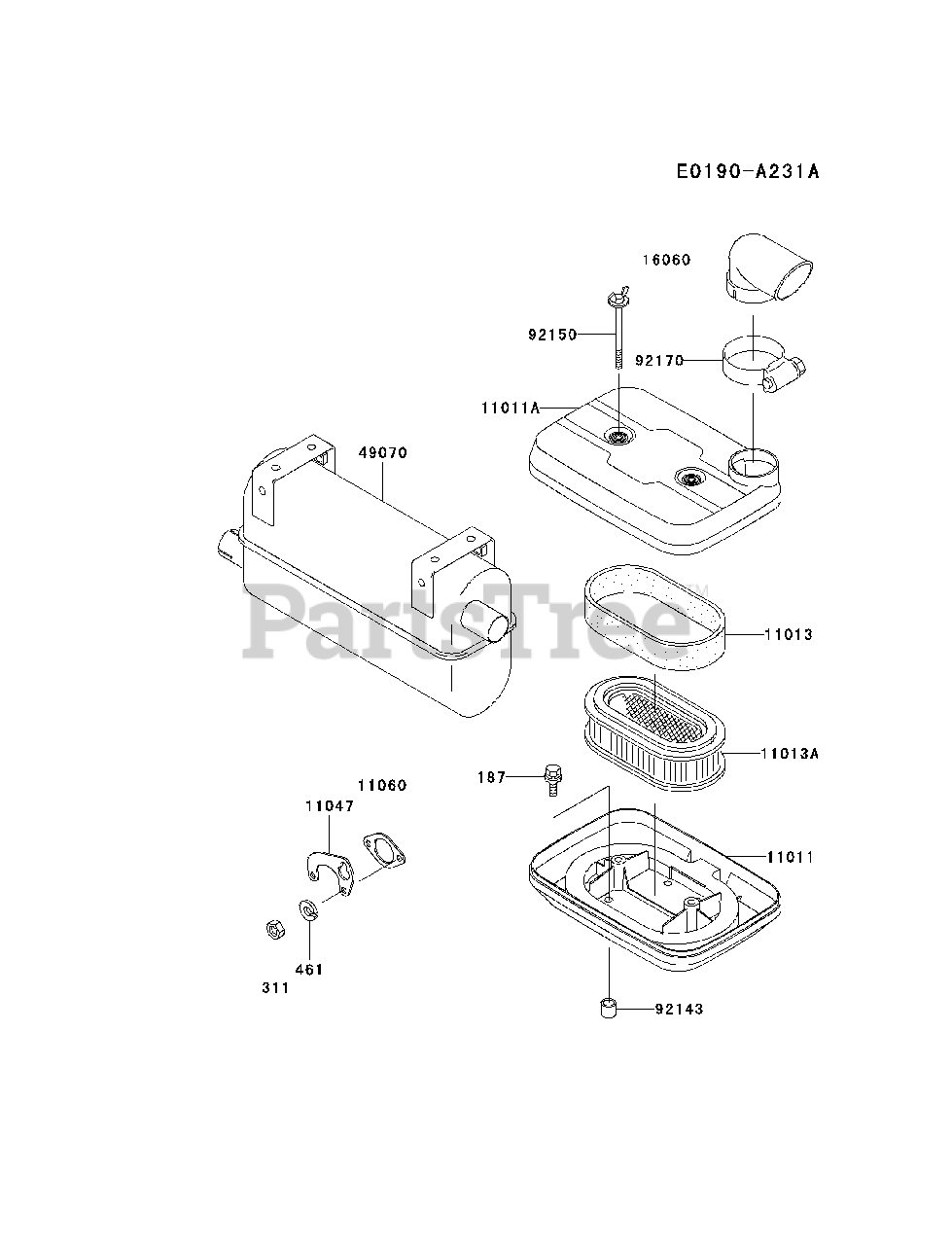

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2253

CASE-AIR FILTER

$54.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2254

CASE-AIR FILTER

$43.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2161

ELEMENT-AIR FILTER

$4.99

$

Usually ships in 2-5 days

0

11013A

Kawasaki 11013-2162

ELEMENT-AIR FILTER
(Superseded to 11013-2207)

$52.99

$

Usually ships in 2-5 days

0

11047

Kawasaki 11047-2057-9H

BRACKET

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2079

GASKET,MUFFLRT
(Superseded to 11009-2562)

$5.49

$

In Stock, only 2 left!

0

16060

Kawasaki 16060-2185

PIPE-INTAKE

$41.99

$

In Stock, only 1 left!

0

49070

Kawasaki 49070-2639-9Y

MUFFLER-COMP
(Superseded to 49070-2639)

$354.99

$

Usually ships in 2-5 days

0

92143

Kawasaki 92143-1336

COLLAR

$1.49

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2285

BOLT

$3.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

187

Kawasaki 187B0520

BOLT-UPSET-WSP
(Superseded to 187AA0520)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311G0600

NUT-HEX
(Superseded to 311BA0600)

$2.49

$

In Stock, Qty 7

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 10

0
