FD501D-AS01 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

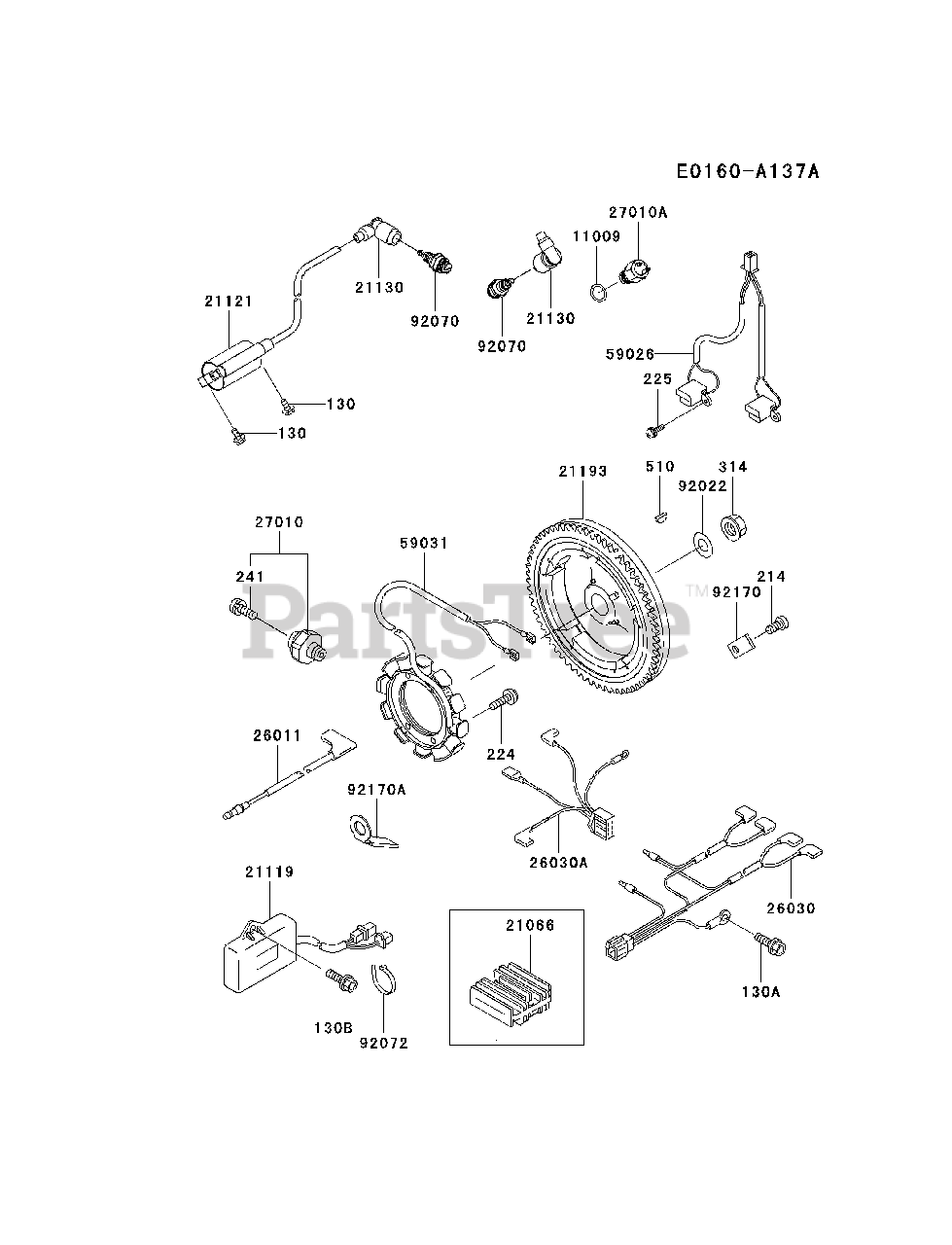

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2766

GASKET
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

21066

Kawasaki 21066-2056

REGULATOR-VOLTAGE

$120.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2120

IGNITER
(Superseded to 21119-2157)

$317.99

$

In Stock, only 1 left!

0

21121

Kawasaki 21121-2083

COIL-IGNITION
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 8

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-2147

FLYWHEEL-ASSY
(Superseded to 21193-2110)

$

$

Not available

26011

Kawasaki 26011-2307

WIRE-LEAD

$

$

Not available

26030

Kawasaki 26030-2203

HARNESS

$

$

Not available

26030A

Kawasaki 26030-2204

HARNESS

$

$

Not available

27010

Kawasaki 27010-2170

SWITCH
(Superseded to 27010-2234)

$19.99

$

In Stock, Qty 8

0

27010A

Kawasaki 27010-2181

SWITCH

$41.99

$

Usually ships in 2-5 days

0

59026

Kawasaki 59026-2063

COIL-PULSING
(Superseded to 59026-2064)

$110.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2107

COIL-CHARGING

$

$

Not available

92022

Kawasaki 92022-2245

WASHER

$1.49

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2103

PLUG-SPARK,BMR2A-10,SOLI

Note: NGK

$

$

Not available

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2050

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92170A

Kawasaki 92170-2060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0614

BOLT-FLANGED
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

224

Kawasaki 224B0625

SCREW-PAN-WP-CROS
(Superseded to 224AA0625)

$0.99

$

In Stock, Qty 9

0

225

Kawasaki 225B0414

SCREW-PAN-WSP-CROS
(Superseded to 225AA0414)

$0.99

$

In Stock, Qty 6

0

241

Kawasaki 241B0406

SCREW-PAN-WP+-
(Superseded to 223AA0406)

$

$

Not available

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
