FD501D-AS00 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

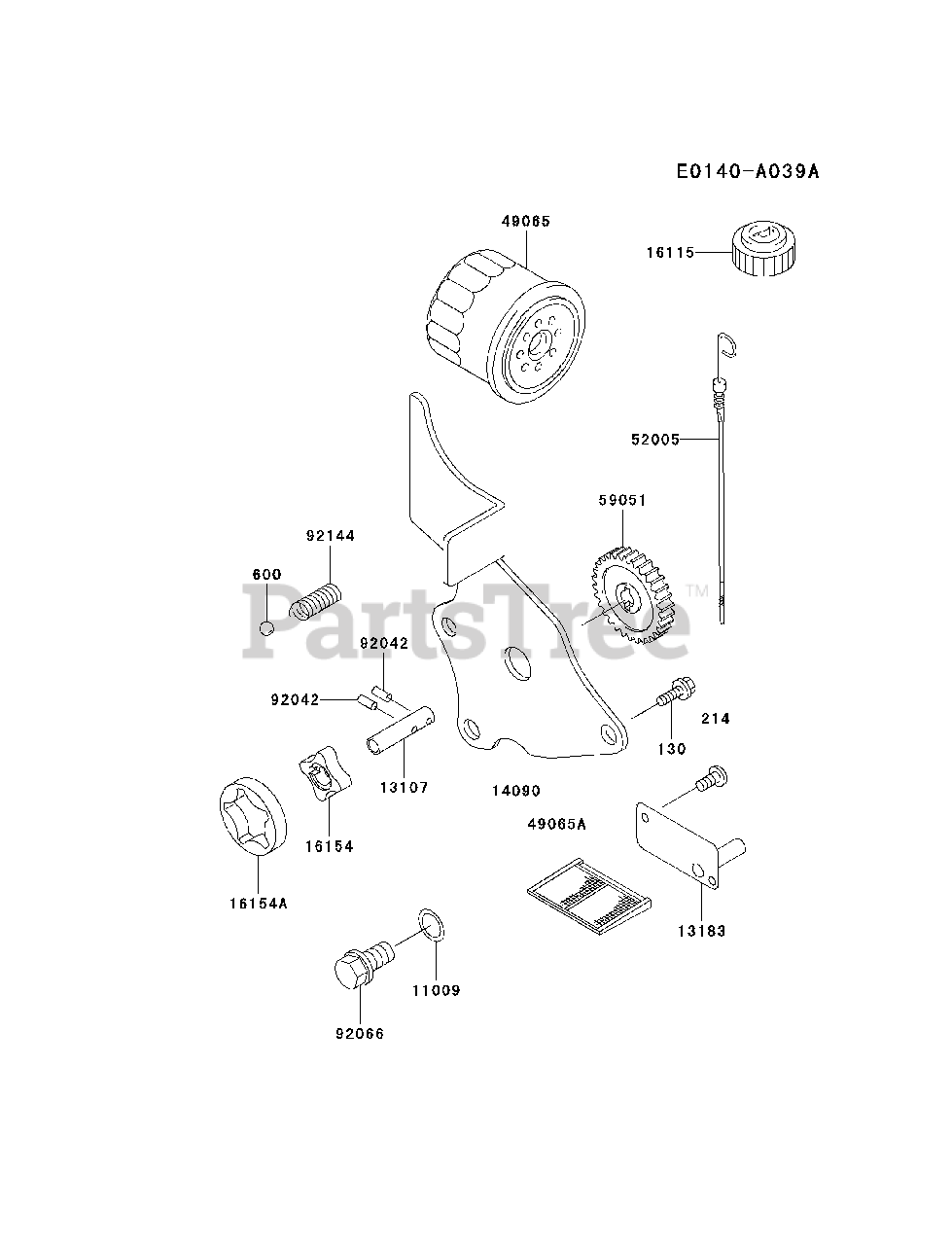

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 8

0

13107

Kawasaki 13107-2099

SHAFT,OIL PUMP
(Superseded to 13107-2296)

$12.99

$

In Stock, only 1 left!

0

13183

Kawasaki 13183-2419

PLATE

$19.99

$

Usually ships in 2-5 days

0

14090

Kawasaki 14090-2069

COVER

$

$

Not available

16115

Kawasaki 16115-2090

CAP-OIL FILLER

$10.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-2061

ROTOR-PUMP,IN

$11.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 16154-2062

ROTOR-PUMP,OUT

$11.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 9

0

49065A

Kawasaki 49065-2072

FILTER-OIL

$7.99

$

In Stock, Qty 6

0

52005

Kawasaki 52005-2116

GAUGE,OIL

$

$

Not available

59051

Kawasaki 59051-2114

GEAR-SPUR
(Superseded to 59051-2371)

$7.49

$

In Stock, only 1 left!

0

92042

Kawasaki 92042-014

PIN

$0.99

$

In Stock, Qty 12

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92144

Kawasaki 92144-2053

SPRING
(Superseded to 92145-2132)

$0.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0614

BOLT-FLANGED
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

214

Kawasaki 214B0512

SCREW-PAN+-
(Superseded to 214AA0512)

$0.99

$

In Stock, only 1 left!

0

600

Kawasaki 600A1300

BALL-STEEL

$0.99

$

In Stock, only 3 left!

0
