FD440V-AS02 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

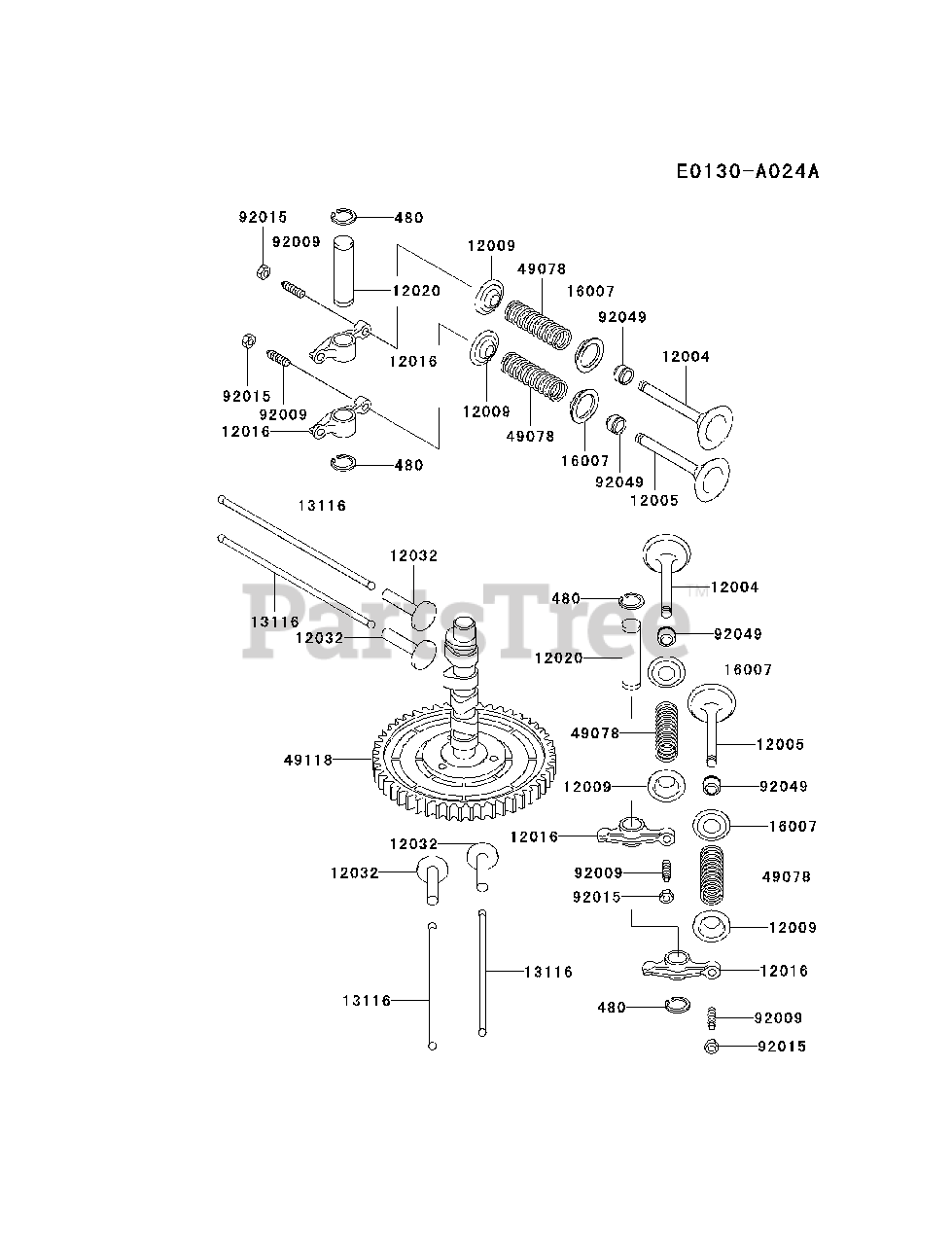

VALVE/CAMSHAFT Parts Diagram

  • Title
12004

Kawasaki 12004-2107

VALVE-INTAKE
(Superseded to 12004-2092)

$

$

Not available

12005

Kawasaki 12005-2080

VALVE-EXHAUST

$

$

Not available

12009

Kawasaki 12009-2065

RETAINER-VALVE SPRING

$

$

Not available

12016

Kawasaki 12016-2056

ARM-ROCKER

$19.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 12020-2061

SHAFT-ROCKER

$5.49

$

Usually ships in 2-5 days

0

12032

$9.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-2070

ROD-PUSH
(Superseded to 13116-2069)

$4.99

$

In Stock, Qty 7

0

16007

Kawasaki 16007-2071

SEAT-SPRING

$0.99

$

In Stock, only 1 left!

0

49078

Kawasaki 49078-2072

SPRING-ENGINE VALVE
(Superseded to 49078-2066)

$

$

Not available

49118

Kawasaki 49118-2075

CAMSHAFT-COMP
(Superseded to 12044-2247)

$

$

Not available

92009

Kawasaki 92009-1109

SCREW,VALVE ADJUST

$2.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1137

NUT,VALVE ADJUST LOCK
(Superseded to 92210-1491)

$1.49

$

In Stock, only 2 left!

0

92049

Kawasaki 92049-1218

SEAL-OIL,VSB58.558

$4.49

$

In Stock, Qty 15

0

480

Kawasaki 480J1200

CIRCLIP,12MM

$0.99

$

In Stock, Qty 10

0
