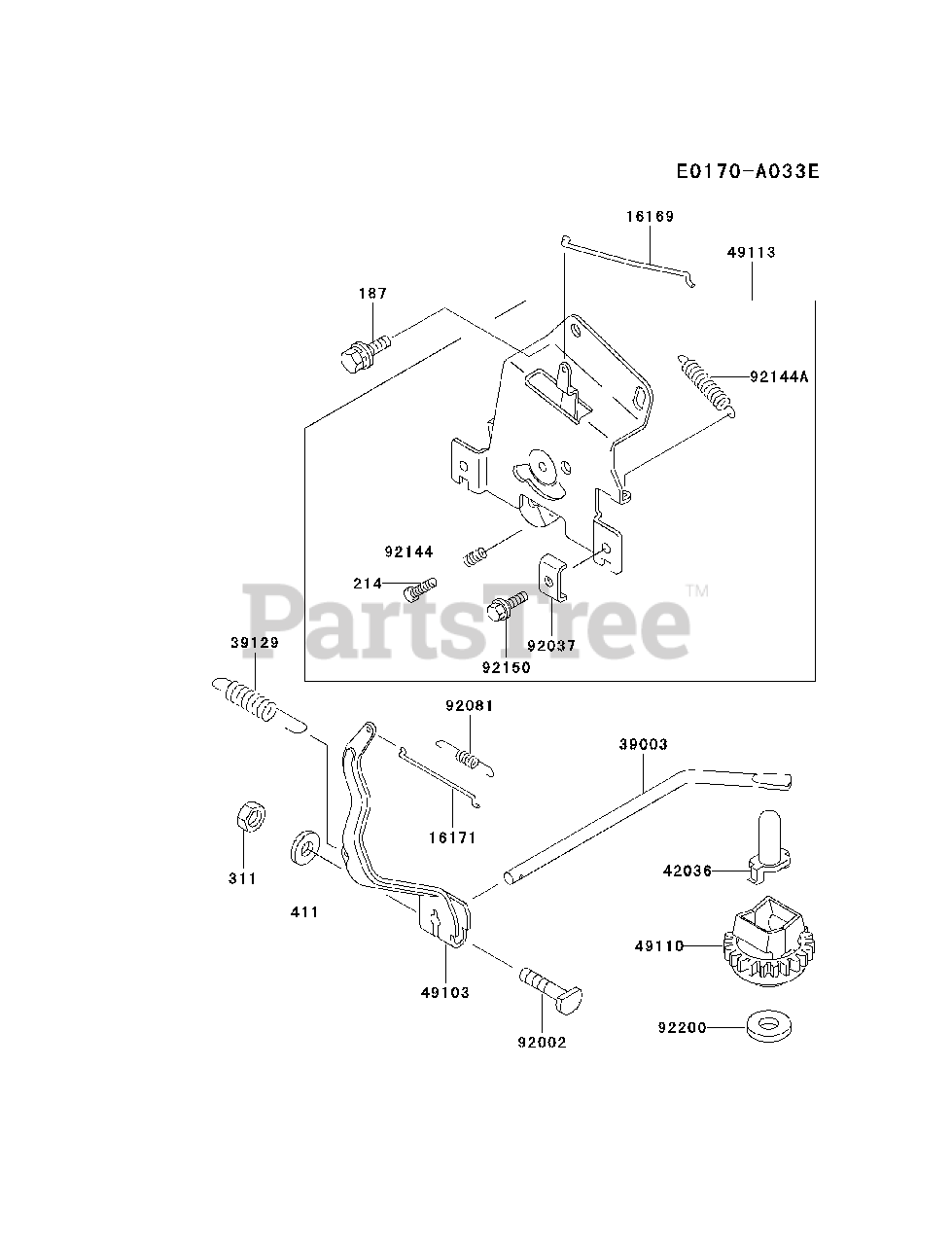

FD440V-AS02 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title

16169

Kawasaki 16169-2122

LINK-CHOKE

$3.99

$

In Stock, only 1 left!

0

16171

Kawasaki 16171-2057

LINK

$1.49

$

In Stock, only 4 left!

0

39003

Kawasaki 39003-2075

ARM-PIVOT

$6.49

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-2039

SPRING-GOVERNOR
(Superseded to 39129-2044)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49103

Kawasaki 49103-2117

ARM-GOVERNOR

$7.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2077

GOVERNOR-ASSY

$

$

Not available

49113

Kawasaki 49113-2111

PANEL-COMP-CONTROL

$

$

Not available

92002

Kawasaki 92002-2269

BOLT,6X28

$1.99

$

In Stock, Qty 6

0

92037

Kawasaki 92037-2209

CLAMP

$1.49

$

In Stock, only 4 left!

0

92081

Kawasaki 92081-2192

SPRING

$1.99

$

In Stock, Qty 7

0

92144

Kawasaki 92144-2004

SPRING

$0.99

$

In Stock, only 2 left!

0

92144A

Kawasaki 92144-2052

SPRING

$9.49

$

In Stock, only 4 left!

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-2036

WASHER,6.2X20X0.5

$1.49

$

In Stock, Qty 12

0

187

Kawasaki 187B0614

BOLT-UPSET-WSP,6X14
(Superseded to 187AA0614)

$1.99

$

In Stock, only 1 left!

0

214

Kawasaki 214B0518

SCREW-PAN+-
(Superseded to 214AA0518)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0600

NUT-HEX,6MM
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

411

Kawasaki 411B0600

WASHER-PLAIN,6MM
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0
