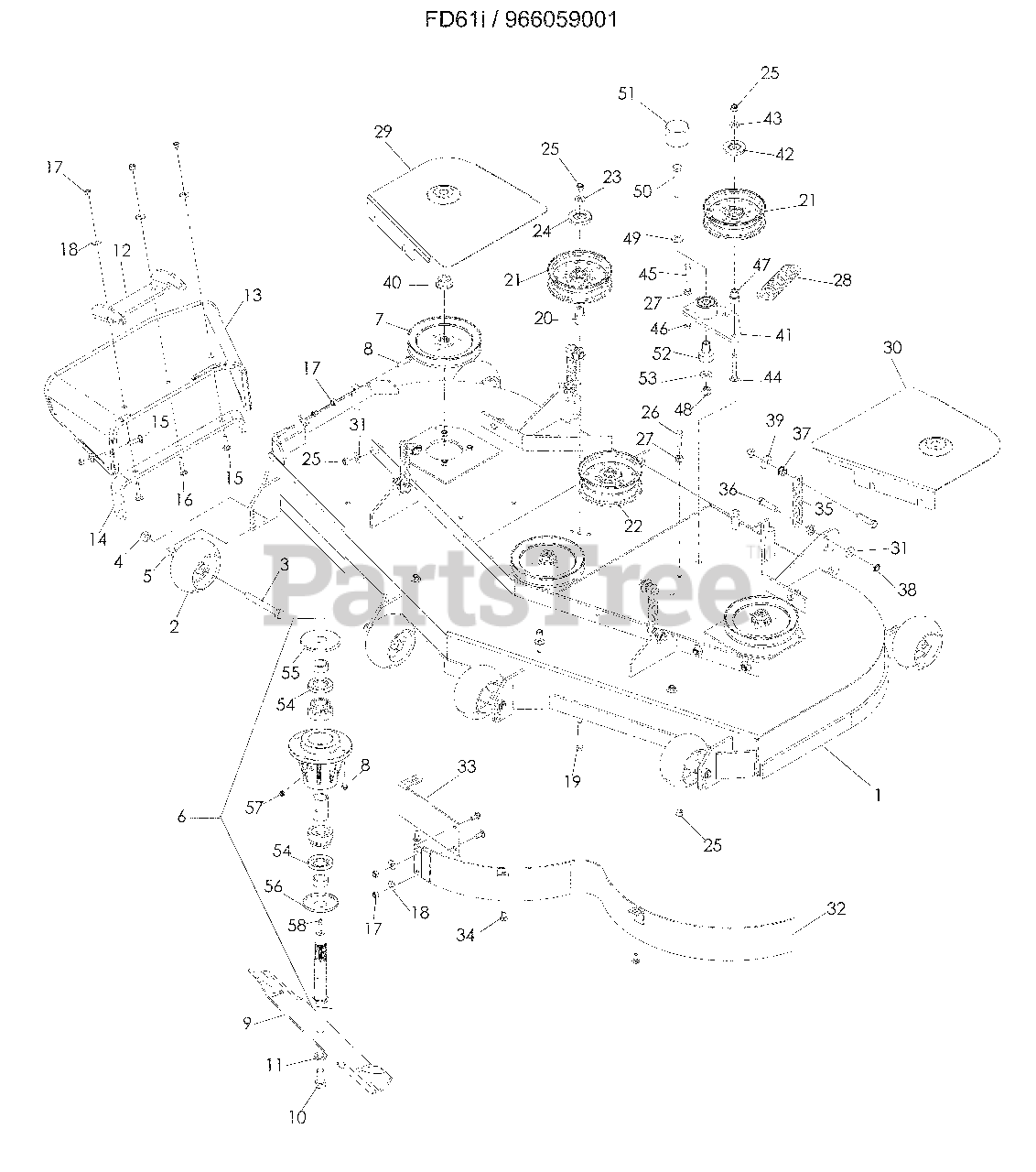

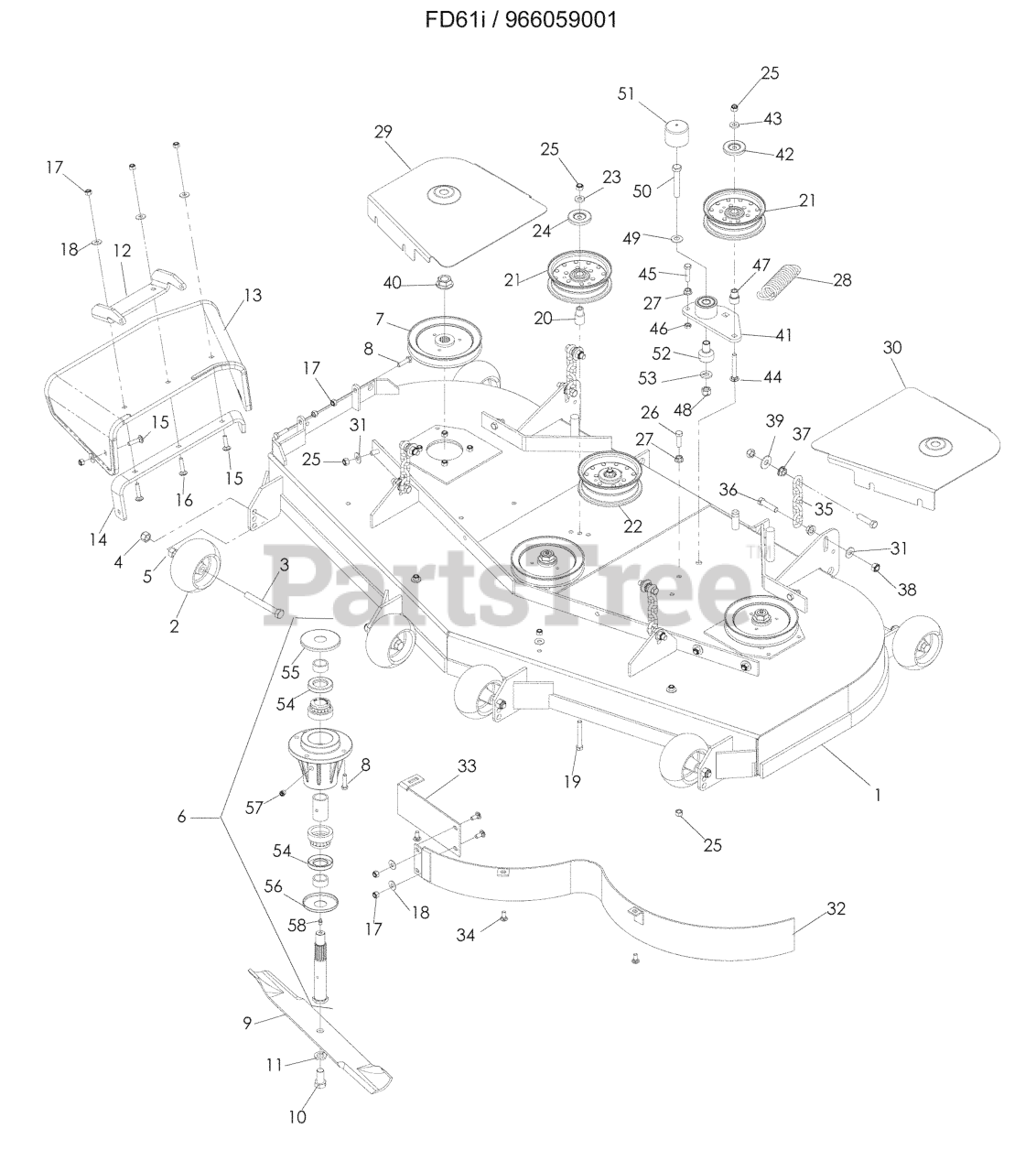

FD 61 I (966059001) - Husqvarna 61" Mower Deck Assembly (2009-03) 72 Inch Tunnel Deck Parts Diagram

61" Mower Deck Assembly

72 Inch Tunnel Deck Parts Diagram

  • Title

1

Husqvarna 525837002

DECK w/ DECALS

$

$

Not available

2

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

3

Husqvarna 539108366

HCS ½-13 x 4

$6.99

$

In Stock, Qty 17

0

4

Husqvarna 539101331

NUT ½ NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990258

NUT ½-13

$4.99

$

In Stock, Qty 14

0

6

Husqvarna 539131383

HOUSING, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

7

Husqvarna 539112125

PULLEY, 61

$48.99

$

In Stock, only 2 left!

0

8

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 539101733

BLADE, 21"

$21.99

$

In Stock, Qty 20+

0

10

Husqvarna 539103299

HCS 5/8-18 x 1¼

$

$

Not available

11

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

12

Husqvarna 539130917

PIVOT BRACKET, CHUTE

$148.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539130901

RUBBER CHUTE 52/61

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539130920

REINFORCEMENT, BRACKT
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

15

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

17

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539102612

HCS 3/8-16 x 2¾

$5.99

$

In Stock, only 3 left!

0

20

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

21

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

22

Husqvarna 539103258

IDLER PULLEY

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

23

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

25

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105192

SPRING

$

$

Not available

29

Husqvarna 539108611

BELTSHIELD, RIGHT

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539108610

BELTSHIELD, LEFT
(Superseded to 539108608)

$23.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539105465

MAIN WELDMENT

$

$

Not available

33

Husqvarna 539105461

CENTER BAFFLE

$97.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539108073

HCS 7/16-14 x 1¾

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102582

NUT 7/16-14 WHIZLK

$

$

Not available

38

Husqvarna 539119124

NUT 7/16-14 NYLOC

$

$

Not available

39

Husqvarna 539104864

WASHER 7/16
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

41

Husqvarna 539130391

ARM w/ BEARINGS, IDLER

$

$

Not available

42

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

43

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539107042

HCS 3/8-16 x 1½ GR8

$3.99

$

In Stock, Qty 6

0

46

Husqvarna 539109332

NUT 3/8-16 JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

47

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

48

Husqvarna 539101331

NUT ½ NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 539115528

WASHER ½ BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539101572

HCS ½-13 x 3

$5.99

$

In Stock, Qty 9

0

51

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

52

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

53

Husqvarna 539990250

WASHER ½ SAE

$1.99

$

In Stock, only 2 left!

0

54

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

55

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

56

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

57

Husqvarna 539977326

GREASE POPPET

$13.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539102619

PIN PIVOT, STRUT

Note: NOT SHOWN

$40.99

$

In Stock, only 3 left!

0

Husqvarna 539105746

DECAL, SEVERING

Note: NOT SHOWN

$3.99

$

In Stock, only 3 left!

0

Husqvarna 539108331

CASTER ARM

Note: NOT SHOWN

$242.99

$

Usually ships in 3-10 days

0

Husqvarna 539108656

DECK BELT 61"

Note: NOT SHOWN

$

$

Not available

Husqvarna 539113224

DECAL, WARNING

Note: NOT SHOWN

$9.99

$

Usually ships in 3-10 days

0

Husqvarna 539913010

DECAL, WARNING

Note: NOT SHOWN

$4.99

$

In Stock, only 1 left!

0

Husqvarna 539990209

HCS 5/16-18 x 1

Note: NOT SHOWN

$1.99

$

Usually ships in 3-10 days

0

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

Note: NOT SHOWN

$3.99

$

In Stock, Qty 20+

0
