FC600 K2 AH (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) ENGINE BED + WHEEL Parts Diagram

26" Tiller, Made in China

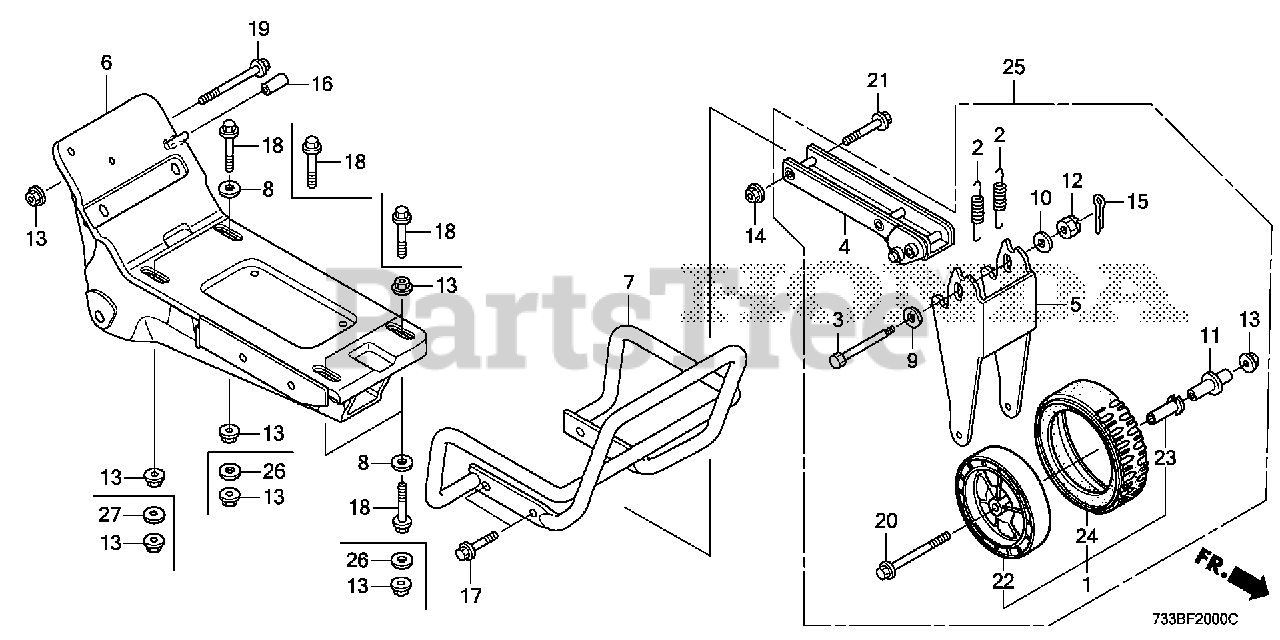

ENGINE BED + WHEEL Parts Diagram

  • Title

1

Honda 42710-VA4-003

WHEEL
(Superseded to 42710-VA3-J00)

$40.99

$

In Stock, Qty 5

0

1

Honda 42810-VA4-003

WHEEL
(Superseded to 42710-VA3-J00)

$40.99

$

In Stock, Qty 5

0

2

Honda 43151-733-W70

SPRING, RETURN

$8.49

$

Usually ships in 3-6 days

0

3

Honda 44311-733-W70

SHAFT, FR. WHEEL

$13.99

$

Usually ships in 3-6 days

0

4

Honda 44760-V42-650

SEE PART DETAILS - PRI; BEAM, FR. WHEEL

$151.99

$

Usually ships in 3-6 days

0

5

Honda 44780-733-W70

ARM, FR. WHEEL
(Superseded to 44780-V42-650)

$107.99

$

In Stock, only 1 left!

0

6

Honda 51110-733-W70

BED, ENGINE

$279.99

$

Usually ships in 3-6 days

0

7

Honda 51120-733-W70

GUARD, FR.

$213.99

$

Usually ships in 3-6 days

0

8

Honda 90402-344-820

WASHER (8X22)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90420-730-003

WASHER, CHUTE GUIDE

$5.49

$

Usually ships in 3-6 days

0

10

Honda 94102-10000

WASHER, PLAIN (10MM)

$1.49

$

In Stock, only 1 left!

0

11

Honda 91553-733-W70

COLLAR, FR. WHEEL

$9.99

$

Usually ships in 3-6 days

0

12

Honda 94011-08200-0S

NUT, CASTLE (8MM)

$

$

Currently unavailable

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94201-20220

PIN, SPLIT (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94201-20350

PIN, SPLIT (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95003-33003-10M

BULK HOSE, VINYL (10X14X3000) (10X14X20)

$58.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.99

$

In Stock, only 3 left!

0

18

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$3.49

$

In Stock, Qty 12

0

19

Honda 95701-08070-00

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08080-00

BOLT, FLANGE (8X80)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-10040-00

BOLT, FLANGE (10X40)

$2.49

$

In Stock, only 4 left!

0

22

Honda 42711-VA4-003

HUB, WHEEL

$21.99

$

In Stock, only 1 left!

0

23

Honda 42756-VA4-003

BUSH, WHEEL

$12.99

$

Usually ships in 3-6 days

0

24

Honda 42751-VA3-J00

TIRE (8 INCH)

$29.99

$

In Stock, only 2 left!

0
