FC600 K2 A2 (FACC) - Honda 26" Tiller, Made in China (SN: FACC-2000001 - FACC-9999999) HANDLEBAR (2) Parts Diagram

26" Tiller, Made in China

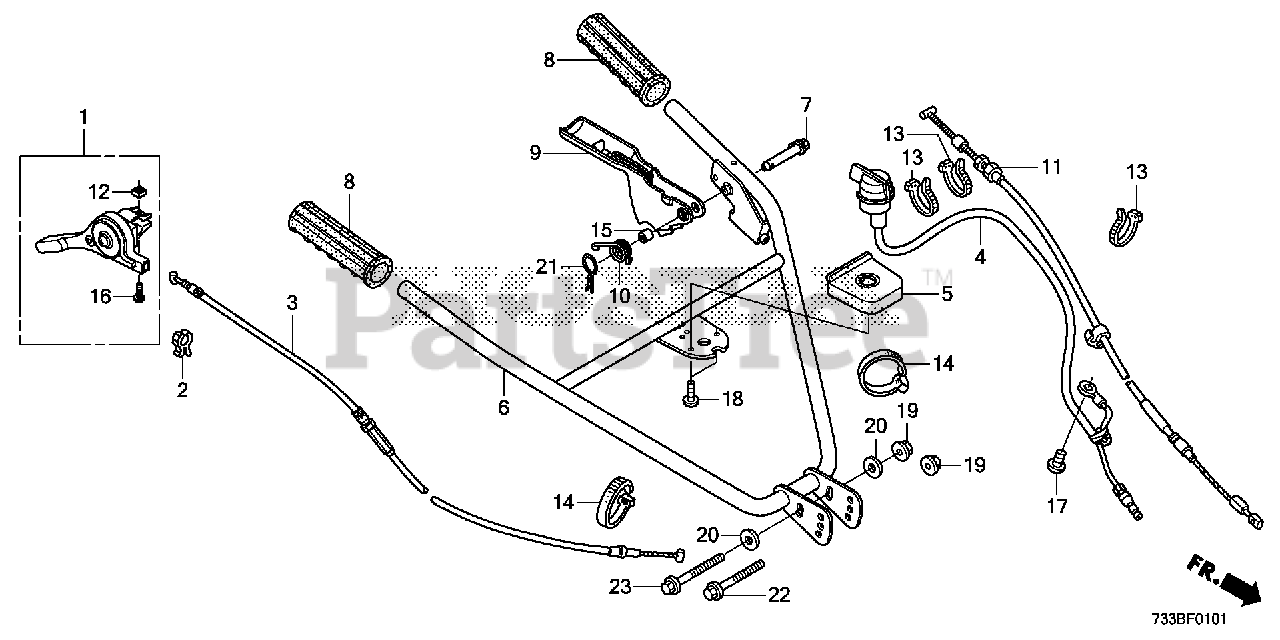

HANDLEBAR (2) Parts Diagram

  • Title

1

Honda 17850-723-013

LEVER ASSY., THROTTLE (RESIN MOLDED LEVER)

$22.99

$

In Stock, only 1 left!

0

2

Honda 17851-777-003

CLIP, THROTTLE (RESIN MOLDED CLIP)

$2.49

$

In Stock, only 4 left!

0

3

Honda 17910-V42-000

CABLE, THROTTLE

$35.99

$

Usually ships in 3-6 days

0

4

Honda 35120-V42-003

SWITCH ASSY., ENGINE STOP

$42.99

$

Usually ships in 3-6 days

0

5

Honda 35133-V42-000

COVER, ENGINE STOP SWITCH

$11.99

$

Usually ships in 3-6 days

0

6

Honda 53110-V42-A20

PIPE, HANDLE

$290.99

$

Usually ships in 3-6 days

0

7

Honda 53132-V42-640

PIN, CLUTCH LEVER

$10.99

$

Usually ships in 3-6 days

0

8

Honda 53165-V42-000

GRIP, HANDLE

$13.99

$

Usually ships in 3-6 days

0

9

Honda 54410-V42-A20

LEVER, CLUTCH

$51.99

$

Usually ships in 3-6 days

0

10

Honda 54414-V42-640

SPRING, CLUTCH LEVER RETURN

$2.49

$

Usually ships in 3-6 days

0

11

Honda 54510-V42-640

CABLE, MAIN CLUTCH

$39.99

$

In Stock, only 2 left!

0

12

Honda 90374-777-000

NUT, SQUARE (5MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90673-SK7-A01

BAND, HARNESS (BLACK)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 91551-V42-640

COLLAR B

$5.99

$

Usually ships in 3-6 days

0

16

Honda 93500-05020-0G

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

17

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0

18

Honda 93913-25380

SCREW, TAPPING (5X14) (PO)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

20

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

22

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

23

Honda 95701-10085-00

BOLT, FLANGE (10X85)

$3.49

$

Usually ships in 3-6 days

0
