FC600 K2 A2 (FACC) - Honda 26" Tiller, Made in China (SN: FACC-2000001 - FACC-9999999) CYLINDER Parts Diagram

26" Tiller, Made in China

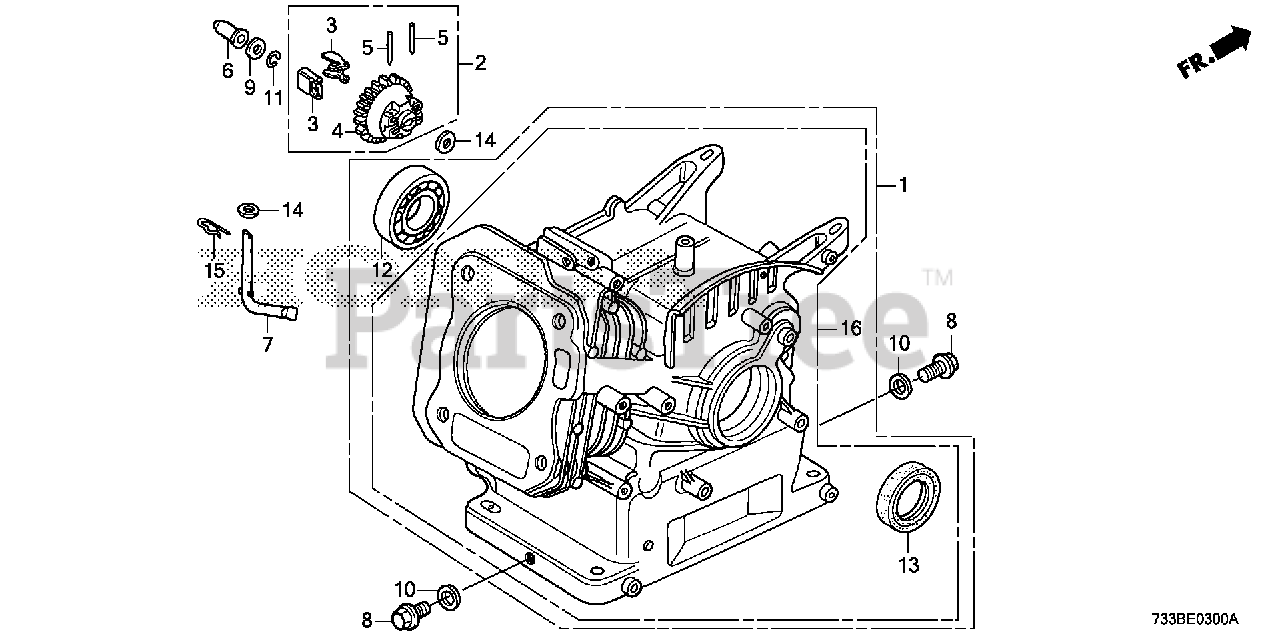

CYLINDER Parts Diagram

  • Title

2

Honda 16510-ZDL-000

GOVERNOR ASSY.

$5.49

$

Usually ships in 3-6 days

0

5

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

7

Honda 16541-Z1T-000

SHAFT, GOVERNOR ARM

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

9

Honda 90451-Z1T-000

WASHER, THRUST (6MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$9.49

$

In Stock, Qty 11

0

13

Honda 91202-YA0-P01

OIL SEAL (25X41X6) (ARAI) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 91202-Z1T-003

OIL SEAL (25X41X6)

$10.99

$

In Stock, only 4 left!

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

15

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

16

Honda 12000-Z4M-425

CYLINDER ASSY.

$433.99

$

Usually ships in 3-6 days

0
