FC600 K2 A2 (FACC) - Honda 26" Tiller, Made in China (SN: FACC-2000001 - FACC-9999999) CONTROL Parts Diagram
26" Tiller, Made in China

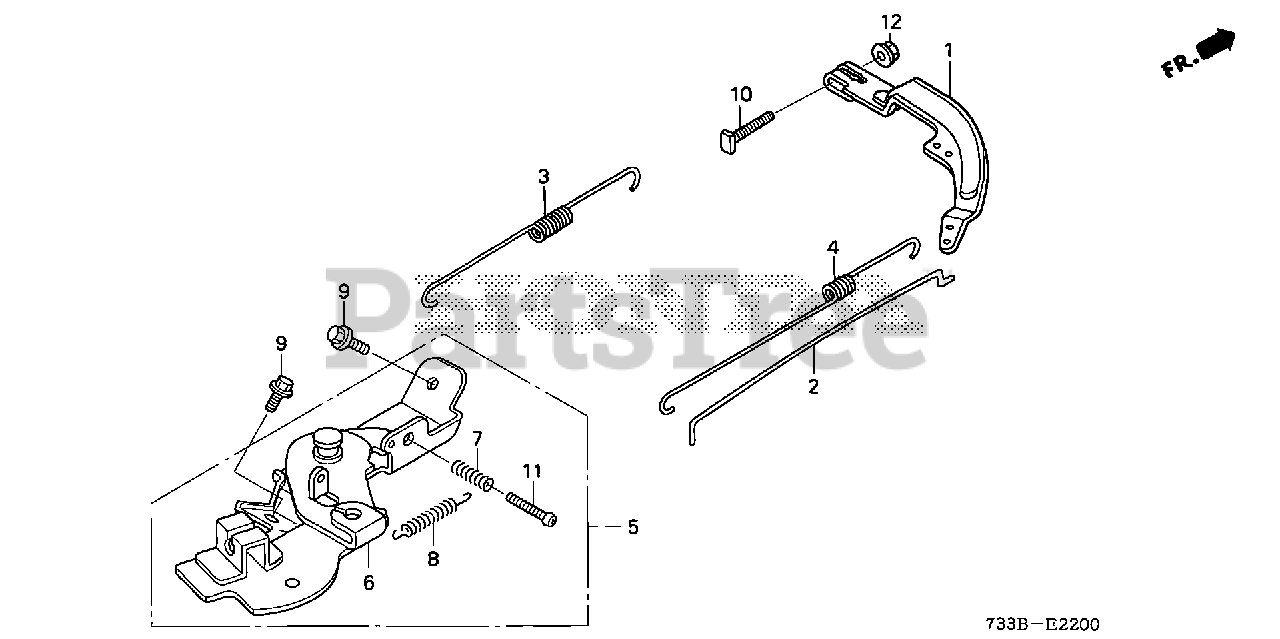

CONTROL Parts Diagram
Honda 16551-ZE0-010
SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 1950609).
$15.99
$
Usually ships in 3-6 days
Honda 16555-ZE1-000
ROD, GOVERNOR (Honda Code 1427319).
$4.99
$
In Stock, only 4 left!
Honda 16561-ZDK-000
SPRING, GOVERNOR
$1.49
$
Usually ships in 3-6 days
Honda 16562-ZE1-020
SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).
$3.99
$
In Stock, Qty 20+
Honda 16500-Z1T-A10
CONTROL ASSY.
$18.99
$
Usually ships in 3-6 days
Honda 16584-883-300
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.
$4.99
$
In Stock, Qty 7
Honda 16592-ZE1-810
SPRING, CABLE RETURN (Honda Code 1445774).
$2.49
$
In Stock, only 2 left!
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 20+
Honda 90015-ZE5-010
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).
$3.49
$
In Stock, only 3 left!
Honda 93500-05028-0H
SEE PART DETAILS - PRI; SCREW, PAN (5X28)
$1.49
$
Usually ships in 3-6 days
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
