FC600 K2 A1 (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) CARBURETOR (2) Parts Diagram

26" Tiller, Made in China

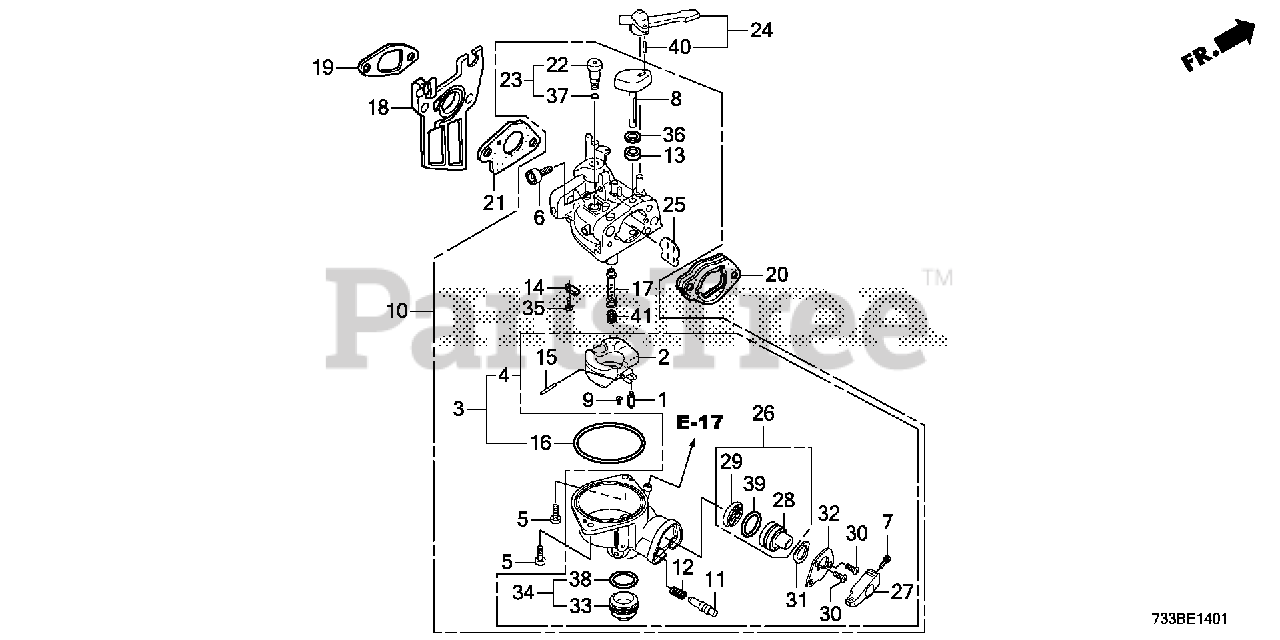

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16011-Z1T-004

VALVE ASSY., IN.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16013-Z1T-004

FLOAT

$31.99

$

Usually ships in 3-6 days

0

3

Honda 16015-Z1T-004

CHAMBER SET, FLOAT

$197.99

$

Usually ships in 3-6 days

0

4

Honda 16019-Z1T-004

BOWL ASSY., FUEL

$181.99

$

Usually ships in 3-6 days

0

5

Honda 16029-Z1T-004

SCREW

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16049-Z1T-004

SCREW, IDLE ADJUSTING

$6.49

$

Usually ships in 3-6 days

0

7

Honda 16055-Z1T-004

SCREW ASSY.

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16058-Z1T-004

SHAFT, CHOKE

$16.99

$

Usually ships in 3-6 days

0

9

Honda 16081-Z1T-004

SCREW

$1.49

$

Usually ships in 3-6 days

0

10

Honda 16100-Z1T-A12

CARBURETOR ASSY. (LMJ 47)

$115.99

$

Usually ships in 3-6 days

0

11

Honda 16127-Z1T-004

PISTON

$11.99

$

Usually ships in 3-6 days

0

12

Honda 16129-Z1T-004

SPRING

$2.99

$

Usually ships in 3-6 days

0

13

Honda 16143-Z1T-A12

DUST SEAL

$2.99

$

Usually ships in 3-6 days

0

14

Honda 16147-Z1T-A12

BAFFLE, BOWL VENT

$2.99

$

Usually ships in 3-6 days

0

15

Honda 16152-Z1T-004

PIN

$3.49

$

Usually ships in 3-6 days

0

16

Honda 16163-Z1T-004

GASKET, FUEL BOWL

$16.99

$

In Stock, only 1 left!

0

17

Honda 16166-Z1T-A12

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

18

Honda 16211-Z1T-000

INSULATOR, CARBURETOR (JLH)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

19

Honda 16212-Z1T-701

GASKET, INSULATOR (NINGBO SIL GASKET)

$1.99

$

In Stock, only 1 left!

0

20

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 20+

0

21

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

21

Honda 16221-Z1T-701

GASKET, CARBURETOR (NINGBO SIL GASKET)

$3.49

$

In Stock, only 2 left!

0

22

Honda 16361-Z1T-A12

JET ASSY., SLOW

$60.99

$

Usually ships in 3-6 days

0

23

Honda 16364-Z1T-A12

JET SET, SLOW

$73.99

$

Usually ships in 3-6 days

0

24

Honda 16610-Z1T-000

LEVER, CHOKE (STD)

$8.99

$

In Stock, only 1 left!

0

25

Honda 16616-Z1T-004

VALVE, CHOKE

$9.99

$

Usually ships in 3-6 days

0

26

Honda 16942-Z1T-004

VALVE SET, PETCOCK

$32.99

$

Usually ships in 3-6 days

0

27

Honda 16953-Z1T-004

LEVER, PETCOCK

$18.99

$

Usually ships in 3-6 days

0

28

Honda 16954-Z1T-004

VALVE, PETCOCK

$20.99

$

Usually ships in 3-6 days

0

29

Honda 16957-Z1T-004

SEAL, PETCOCK

$9.49

$

Usually ships in 3-6 days

0

30

Honda 16958-Z1T-004

SCREW

$0.99

$

Usually ships in 3-6 days

0

31

Honda 16964-Z1T-004

WASHER, WAVE

$2.99

$

Usually ships in 3-6 days

0

32

Honda 16965-Z1T-004

COVER, PETCOCK

$8.99

$

Usually ships in 3-6 days

0

33

Honda 16967-Z1T-004

CUP

$23.99

$

Usually ships in 3-6 days

0

34

Honda 16992-Z1T-004

CUP SET, STRAINER

$33.99

$

Usually ships in 3-6 days

0

35

Honda 90009-Z1T-A12

SCREW

$0.99

$

Usually ships in 3-6 days

0

36

Honda 90401-Z1T-A12

WASHER

$2.49

$

Usually ships in 3-6 days

0

37

Honda 91301-Z1T-004

O-RING

$2.49

$

Usually ships in 3-6 days

0

38

Honda 91302-Z1T-004

O-RING

$4.49

$

Usually ships in 3-6 days

0

39

Honda 91303-Z1T-004

O-RING

$5.49

$

In Stock, only 1 left!

0

40

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

41

Honda 99101-Z1T-0640

JET, MAIN (#64)

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z1T-0660

JET, MAIN (#66)

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z1T-0680

JET, MAIN (#68)

$47.99

$

Usually ships in 3-6 days

0
