FC600 K2 A1 (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) BELT COVER Parts Diagram

26" Tiller, Made in China

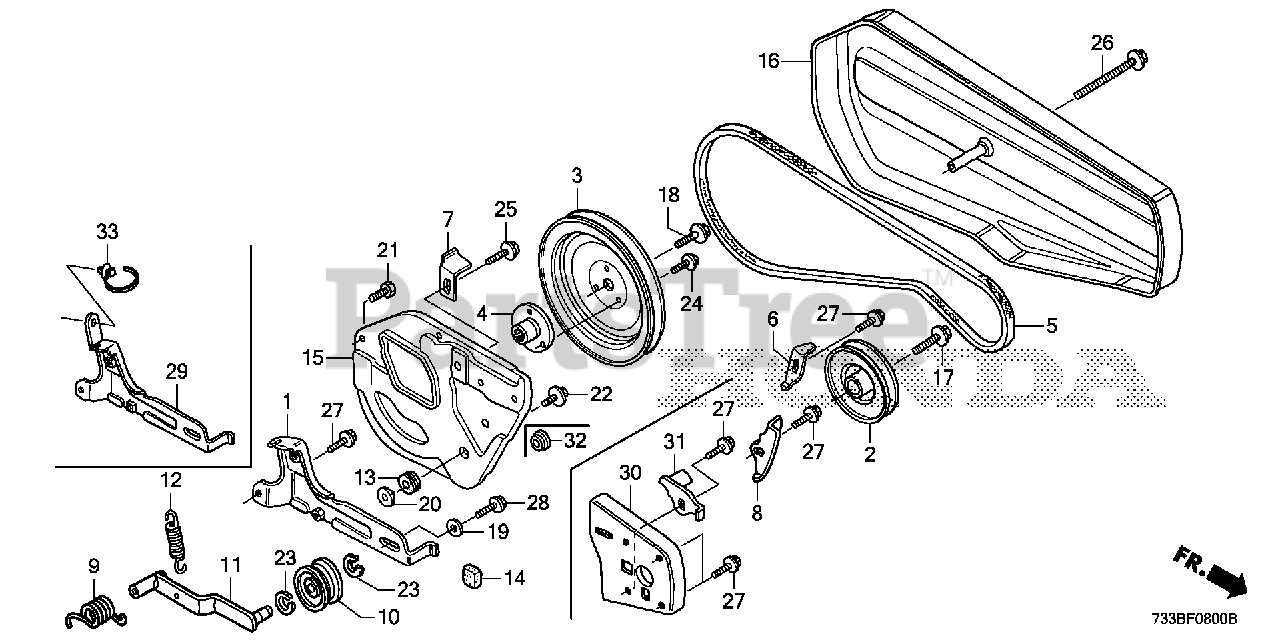

BELT COVER Parts Diagram

  • Title
2

Honda 22411-V42-000

PULLEY, DRIVE

$77.99

$

Usually ships in 3-6 days

0

3

Honda 22421-V42-000

PULLEY, DRIVEN

$36.99

$

Usually ships in 3-6 days

0

4

Honda 22426-V42-000

BOSS, DRIVEN PULLEY

$8.49

$

Usually ships in 3-6 days

0

5

Honda 22431-727-013

SEE PART DETAILS - PRI; V-BELT (SB-38)

$40.99

$

Usually ships in 3-6 days

0

6

Honda 22443-V42-000

STOPPER, BELT (UPPER)

$8.49

$

Usually ships in 3-6 days

0

7

Honda 22444-V42-000

STOPPER C, BELT

$7.49

$

Usually ships in 3-6 days

0

9

Honda 22529-V42-000

SPRING, TENSION ARM RETURN

$3.99

$

Usually ships in 3-6 days

0

10

Honda 22465-V42-000

ROLLER, TENSION

$27.99

$

Usually ships in 3-6 days

0

11

Honda 22520-V42-000

ARM, TENSION

$28.99

$

Usually ships in 3-6 days

0

12

Honda 22531-V42-000

SPRING, BELT TENSION

$5.49

$

Usually ships in 3-6 days

0

14

Honda 38260-V42-000

HOLDER, FUSE STAY

$6.49

$

Usually ships in 3-6 days

0

15

Honda 50651-V42-000

STAY, BELT COVER

$31.99

$

Usually ships in 3-6 days

0

16

Honda 63610-V42-000ZA

COVER, BELT *R280* (POWER RED)

$70.99

$

Usually ships in 3-6 days

0

17

Honda 90104-V42-000

BOLT, FLANGE (8X22)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90103-V42-000

BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90507-V42-000

WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90563-V42-000

WASHER, NUMBER BRACKET MOUNTING

$8.49

$

Usually ships in 3-6 days

0

21

Honda 92101-06008-0A

BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93404-06016-00

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94510-10000

CIRCLIP, OUTER (10MM)

$1.49

$

In Stock, Qty 8

0

24

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

25

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06050-07

BOLT, FLANGE (6X50)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

29

Honda 11800-V42-000

STAY, ENGINE

$31.99

$

Usually ships in 3-6 days

0

30

Honda 11802-V42-000

PLATE, ENGINE ADJUSTING

$20.99

$

Usually ships in 3-6 days

0

31

Honda 22445-V42-000

STOPPER, BELT (LOWER)

$8.49

$

Usually ships in 3-6 days

0

32

Honda 32983-V42-000

GROMMET, WIRE

$3.49

$

Usually ships in 3-6 days

0

33

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0
