FC600 AN (FAMJ) - Honda 26" Tiller, Made in Japan (SN: FAMJ-1000001 - FAMJ-9999999) TRANSMISSION GEAR Parts Diagram

26" Tiller, Made in Japan

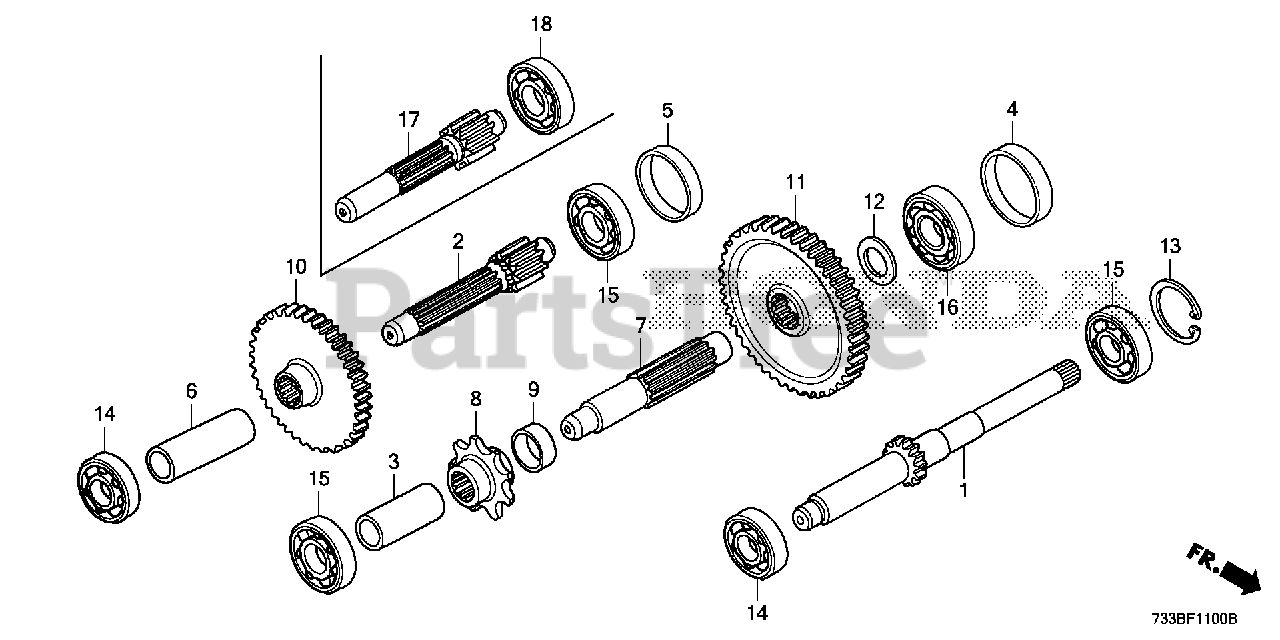

TRANSMISSION GEAR Parts Diagram

  • Title

1

Honda 23111-733-700

SHAFT, INPUT (18T)

$127.99

$

Usually ships in 3-6 days

0

2

Honda 23221-733-000

COUNTERSHAFT (13T)

$115.99

$

Usually ships in 3-6 days

0

3

Honda 23224-733-700

COLLAR (22) (2X30)

$9.99

$

Usually ships in 3-6 days

0

4

Honda 23227-733-000

COLLAR A, DISTANCE

$9.99

$

Usually ships in 3-6 days

0

5

Honda 23228-733-000

COLLAR B, DISTANCE

$7.49

$

Usually ships in 3-6 days

0

6

Honda 23229-733-700

COLLAR A, COUNTERSHAFT

$11.99

$

Usually ships in 3-6 days

0

7

Honda 23251-733-000

SHAFT, FINAL

$109.99

$

Usually ships in 3-6 days

0

8

Honda 23252-733-000

SPROCKET, DRIVE (9T)

$59.99

$

Usually ships in 3-6 days

0

9

Honda 23255-733-000

COLLAR, FINAL SHAFT

$7.49

$

Usually ships in 3-6 days

0

10

Honda 23411-733-000

GEAR, COUNTERSHAFT FIRST (50T)

$102.99

$

Usually ships in 3-6 days

0

11

Honda 23581-733-000

GEAR, FINAL (58T)

$120.99

$

Usually ships in 3-6 days

0

12

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.49

$

In Stock, only 2 left!

0

14

Honda 96100-60020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6002)

$14.99

$

Usually ships in 3-6 days

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203) (Honda Code 0722199).

$11.99

$

Usually ships in 3-6 days

0
