FC600 AC (FAMJ) - Honda 26" Tiller, Made in Japan (SN: FAMJ-1000001 - FAMJ-9999999) HANDLEBAR (1) Parts Diagram

26" Tiller, Made in Japan

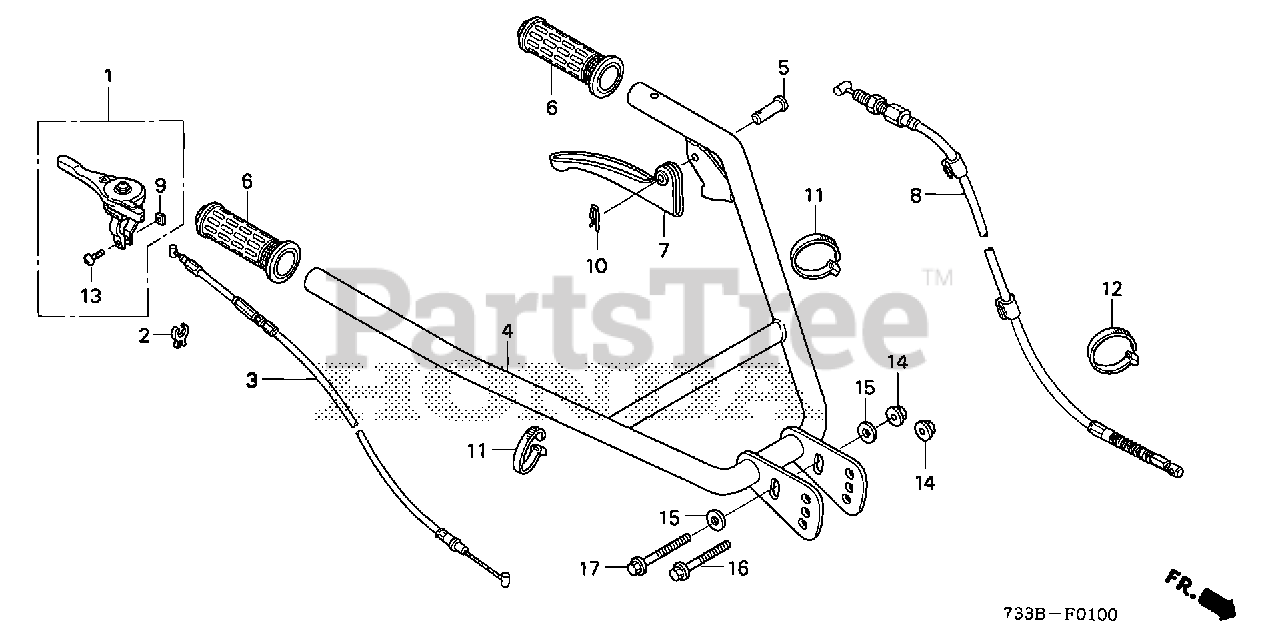

HANDLEBAR (1) Parts Diagram

  • Title

1

Honda 17850-723-013

LEVER ASSY., THROTTLE (RESIN MOLDED LEVER)

$23.99

$

In Stock, only 2 left!

0

2

Honda 17851-777-003

CLIP, THROTTLE (RESIN MOLDED CLIP)

$2.49

$

In Stock, only 4 left!

0

3

Honda 17910-733-013

CABLE, THROTTLE

$28.99

$

In Stock, only 2 left!

0

4

Honda 53110-733-W70

PIPE, HANDLE

$211.99

$

Usually ships in 3-6 days

0

5

Honda 53132-719-000

PIN, EXCHANGE (8X21)

$6.99

$

Usually ships in 3-6 days

0

6

Honda 53165-397-940

GRIP, R. HANDLE

$22.99

$

Usually ships in 3-6 days

0

7

Honda 54415-729-720

LEVER, CLUTCH

$32.99

$

Usually ships in 3-6 days

0

8

Honda 54510-733-R80

SEE PART DETAILS - PRI; CABLE, MAIN CLUTCH

$36.99

$

In Stock, only 2 left!

0

9

Honda 90374-777-000

NUT, SQUARE (5MM)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90679-SG9-E01

BAND, SUCTION HOSE (BLACK)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 93500-05020-0G

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

14

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

15

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

17

Honda 95701-10085-00

BOLT, FLANGE (10X85)

$3.49

$

Usually ships in 3-6 days

0
